Sato SK-650PH desktop digital pH meter for laboratory, industrial and general liquid pH measurement. Select the appropriate probe according to the sample and application.

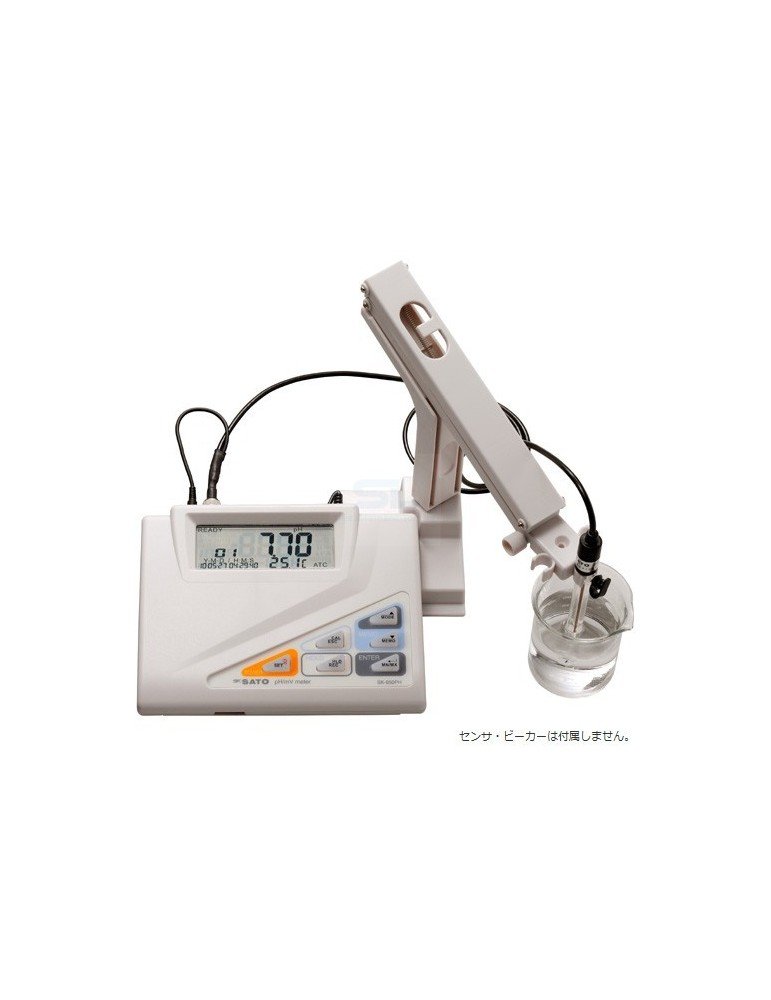

The Sato SK-650PH is a desktop digital pH meter for laboratory, industrial and general liquid measurement.
The meter displays pH together with temperature and provides functions for sensor-condition checking, calibration, data storage and computer connection. A sensor arm is supplied for positioning the electrode during measurement and for use together with a laboratory stirrer.
The SK-650PH is supplied without a pH probe. Select the probe according to the sample, measuring range and required electrode construction.
The SK-650PH supports calibration using up to three points selected from the following standard solutions at 25°C.
| Calibration Point | Standard Solution |
|---|---|
| pH 4.01 | Phthalate standard solution |
| pH 6.86 | Neutral phosphate standard solution |
| pH 9.18 | Borate standard solution |
| pH 10.01 | Carbonate standard solution |
| Specification | Details |
|---|---|
| Cat. No. | 6427-00 |
| Model | SK-650PH |
| pH Display Range | 0.00 to 14.00 pH |
| Temperature Display Range | -6.0°C to 82.0°C |
| mV Display Range | -2002 to +2002 mV |
| pH Resolution | 0.01 pH |
| Temperature Resolution | 0.1°C |
| mV Resolution | 0.1 mV from -199.9 to +199.9 mV; 1 mV outside this range |
| pH Repeatability | ±(0.01 + 1 digit) pH |
| Temperature Repeatability | ±(0.1 + 1 digit)°C |
| Sampling Time | Approx. 1 second |
| Data Memory | Up to 99 readings |
| Output | RS-232C |
| Operating Environment | 5°C to 40°C, below 95%RH, non-condensing |
| Storage Environment | -10°C to 50°C, non-condensing |
| Power | Dedicated 9 VDC AC adapter |
| Material | ABS resin body and sensor arm |
| Dimensions | 215 (W) × 58 (H) × 170 (D) mm, excluding sensor arm |
| Weight | Approx. 915 g, excluding sensor arm |
| Standard Accessories | Sensor arm, AC adapter and instruction manual |
The measuring range and accuracy of the complete SK-650PH system depend on the probe connected to the meter.
Sato provides a standard PHP-31 probe together with the 640S Series for general-purpose, immersion, high-alkali, flat-surface, test-tube and small-sample applications.
The PHP-31 is the standard combination pH and temperature probe for general liquid measurements.
| Specification | pH | Temperature |
|---|---|---|
| Cat. No. | 6400-30 | |
| Model | PHP-31 | |
| Measuring Range | 0.00 to 14.00 pH | 0.0°C to 50.0°C |
| Accuracy | ±0.28 pH from pH 0 to 2 ±0.08 pH from pH 2 to 12 ±0.38 pH from pH 12 to 14 |
±0.3°C from 20°C to 30°C ±0.5°C outside this range |
| Sensor | Lead-free glass electrode | Thermistor |
| Internal Solution | Non-refillable KCl solution | |
| Probe Size | Ø12 × 135 mm | |
| Cable | Approx. 1 m | |
| Weight | Approx. 76 g | |
Select the 640S probe according to the physical form and chemical condition of the sample.
| Cat. No. | Model | Application | pH Range | Temperature |
|---|---|---|---|---|
| 6424-00 | 640S-1 | General purpose | 2.00 to 13.00 | 0 to 50°C |
| 6425-00 | 640S-2 | Immersion / waterproof | 2.00 to 13.00 | 0 to 50°C |
| 6425-10 | 640S-3 | High-alkali measurement | 2.00 to 14.00 | 0 to 50°C |
| 6425-20 | 640S-4 | Flat-surface measurement | 2.00 to 13.00 | No built-in temperature sensor |
| 6425-30 | 640S-5 | Test tubes | 2.00 to 13.00 | No built-in temperature sensor |
| 6425-40 | 640S-6 | Minute / very small samples | 2.00 to 13.00 | No built-in temperature sensor |
The 640S-1 is intended for general liquid pH measurement. It contains both a pH electrode and temperature sensor, allowing automatic temperature compensation when connected to the SK-650PH.
| pH Range | 2.00 to 13.00 |
|---|---|
| Temperature Range | 0 to 50°C |
| pH Accuracy | ±0.03 pH |
| Temperature Accuracy | ±0.5°C |
| Liquid Junction | Sleeve type |
| Internal Solution | 3.3 mol/L KCl, refillable |
| Probe Size | Ø12 × 156 mm |
| Cable | 1 m standard; optional longer lengths available |
The 640S-2 has a waterproof probe construction and can be immersed in tanks or other suitable liquid samples.
| pH Range | 2.00 to 13.00 |
|---|---|
| Temperature Range | 0 to 50°C |
| pH Accuracy | ±0.03 pH |
| Temperature Accuracy | ±0.5°C |
| Liquid Junction | Ceramic type |
| Internal Solution | 3.3 mol/L KCl, non-refillable |
| Probe Size | Approx. Ø34 × 147 mm |
| Cable | 3 m standard; optional longer lengths available |
The 640S-3 extends the pH range to 14.00 and is intended for suitable high-alkali liquid measurements.
| pH Range | 2.00 to 14.00 |
|---|---|
| Temperature Range | 0 to 50°C |
| pH Accuracy | ±0.03 pH |
| Temperature Accuracy | ±0.5°C |
| Liquid Junction | Sleeve type |
| Internal Solution | 3.3 mol/L KCl, refillable |
| Probe Size | Ø12 × 159 mm |
The 640S-4 is designed for pH measurement of suitable flat surfaces such as leaves, skins and cut fruit surfaces.
| pH Range | 2.00 to 13.00 |
|---|---|
| pH Accuracy | ±0.03 pH |
| Operating Temperature | 15 to 50°C |
| Temperature Compensation | No built-in temperature sensor |
| Liquid Junction | Sleeve type |
| Internal Solution | 3.3 mol/L KCl, refillable |
The 640S-5 has a slender measuring section for insertion into test tubes and other narrow sample containers.
| pH Range | 2.00 to 13.00 |
|---|---|
| pH Accuracy | ±0.03 pH |
| Operating Temperature | 10 to 50°C |
| Temperature Compensation | No built-in temperature sensor |
| Measuring Section | Ø6 × 190 mm |
| Overall Probe Length | Approx. 270 mm |
The 640S-6 is designed for very small samples such as a small droplet where a conventional pH electrode is too large.
| pH Range | 2.00 to 13.00 |
|---|---|
| pH Accuracy | ±0.03 pH |
| Operating Temperature | 10 to 50°C |
| Temperature Compensation | No built-in temperature sensor |
| Measuring Section | Ø3 × 50 mm |
| Overall Probe Length | Approx. 148 mm |
| Measurement Requirement | Probe |
|---|---|
| Standard general liquid measurement | PHP-31 or 640S-1 |
| Probe immersed into a tank | 640S-2 |
| Higher-alkalinity samples | 640S-3 |
| Flat or cut surface | 640S-4 |
| Narrow test tube | 640S-5 |
| Very small sample volume | 640S-6 |
Automatic temperature compensation is available when the connected probe contains a compatible temperature sensor.
PHP-31, 640S-1, 640S-2 and 640S-3 provide temperature measurement together with pH measurement.
The 640S-4, 640S-5 and 640S-6 do not contain a temperature sensor, so automatic temperature compensation is not available from those probes alone.
The SK-650PH includes a sensor sensitivity display that helps indicate the condition of the connected pH electrode.
This can be used as a guide when deciding whether electrode cleaning, maintenance or replacement may be required.
Up to 99 readings can be stored in the meter for later review. Stored pH data include the data number, pH value, temperature and time.
The SK-650PH also provides RS-232C output. An optional RS-232C cable is required for connection to a computer.
| Cat. No. | Standard Solution |
|---|---|
| 6401-10 | pH 4.01 phthalate solution, 500 mL |
| 6402-10 | pH 6.86 neutral phosphate solution, 500 mL |
| 6404-10 | pH 9.18 borate solution, 500 mL |
| 6403-10 | pH 10.01 carbonate solution, 500 mL |
Confirm the following:
The SK-650PH meter itself has a display range of 0.00 to 14.00 pH, but the actual measuring range and accuracy depend on the connected probe.
Sato lists calibration service as available for the SK-650PH. JCSS-accredited calibration is not available for this model. Suitability for regulated, certification or transaction applications should therefore be confirmed according to the user's measurement requirements.
|
Download |
|
Download |
Sato SK-650PH desktop digital pH meter for laboratory, industrial and general liquid pH measurement. Select the appropriate probe according to the sample and application.
Anritsu SF Series extra-fine flexible temperature probes for internal measurement in liquids, materials and confined locations.
Observe atmospheric pressure and room temperature with the Sato 7610-20 Baromex aneroid barometer. Its analogue dial includes a reference pointer for comparing pressure changes, while the integrated glass thermometer provides a local temperature reading.
The Evikon E2244 humidity and temperature transmitter measures relative humidity and air temperature for connection to controllers, monitoring instruments and building management systems.
Read and adjust flow at your equipment with Ryutai Kogyo panel flowmeters and purge meters. The GPB, GPC, PGH, GDR and AMF families offer glass or acrylic measuring tubes for direct local indication, with mounting and valve arrangements selected for the installation.
Select the model using the fluid, flow range, operating pressure, temperature and available panel space.
The Sato SK-RHC-I temperature and humidity transmitter combines a local display with 4–20 mA outputs for connection to compatible monitoring and control equipment. Three interchangeable probe designs support different sensor positions.
Probe sold separately. An optional AC adapter is available.
The Anritsu FL Series fiber optic thermometers measure temperature in microwave, high-frequency and high-voltage environments where conventional electrical sensors can be difficult to use.
Monnit ALTA Wireless Differential Pressure Sensor measures the pressure difference between two input ports and transmits the measurement to iMonnit.
- Measurement range: -500 Pa to 500 Pa
- Calibrated and temperature compensated
Measure wind speed for a connected monitoring system with the Sato 7980-S-13 three-cup wind speed sensor. Built-in signal conversion and linearisation provide an analogue output proportional to wind speed.
The Anritsu AM-9000 series temperature datalogger records measurements across 6 or 12 channels, with fixed thermocouple and multi-input models available. Store readings in internal memory and transfer them to a PC through USB using optional AMS-950 analysis software.
AMS-950 software is sold separately.
Anritsu HHT Series high-durability surface temperature probes for direct contact measurement of hot metal and industrial surfaces.
Check moisture in paper and cardboard without puncturing the material using the Exotek MC-60CPA pinless moisture meter. Place the sensor against the surface for quick checks on suitable paper rolls, stacks and reams.

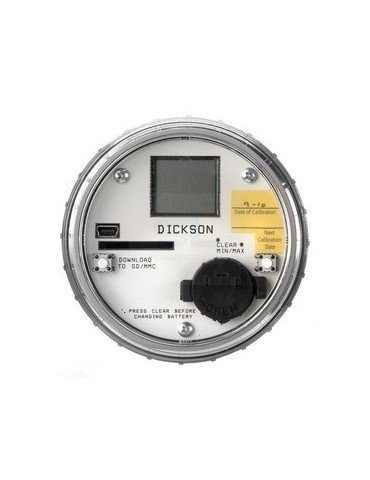

Record pressure changes over time with Dickson PR125, PR325 and PR525 pressure data loggers. The battery-powered display models store readings at the measurement point for later download and review.
