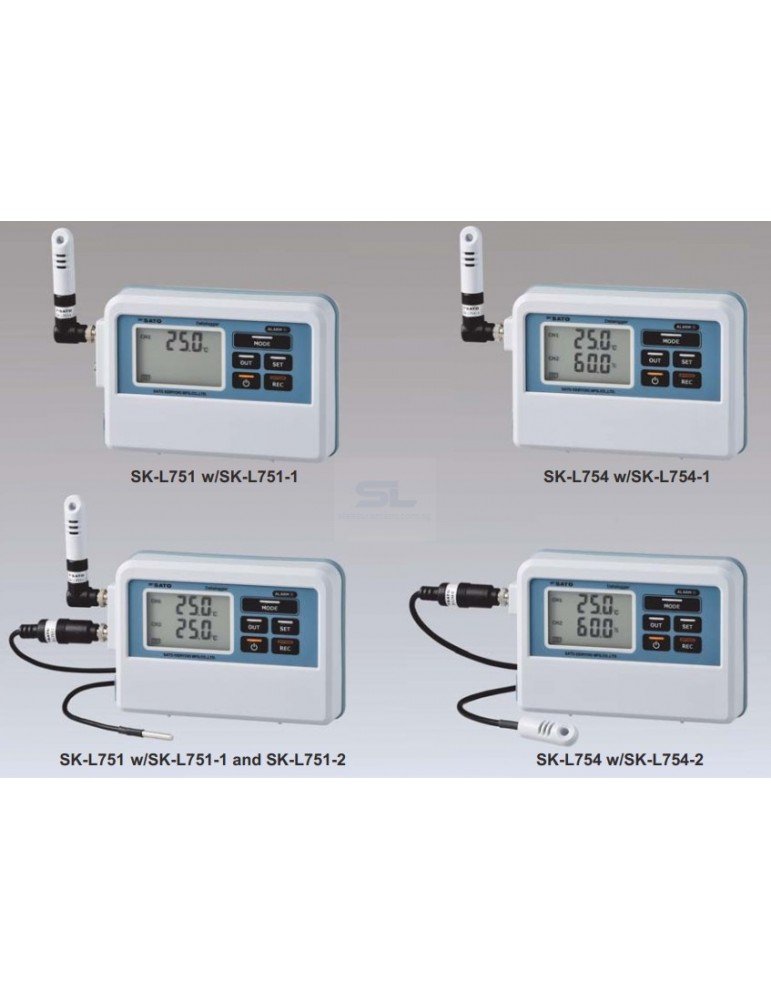

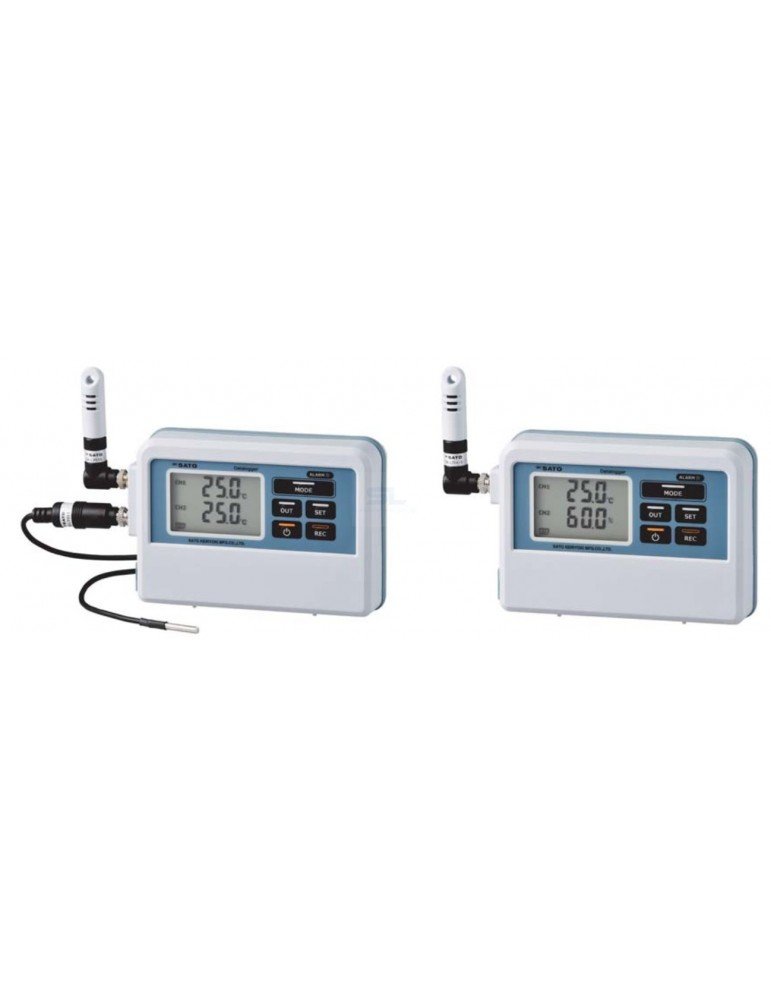

The Sato SK-L750 series data loggers record temperature or temperature and humidity for later review on a PC. Choose the SK-L751 for two-channel temperature measurement or the SK-L754 for combined temperature and humidity recording.
Record conditions over time and review the results as graphs or exported data with the Sato SK-L750 series. These compact data loggers provide interchangeable probe options, selectable recording intervals and PC software for measurement review.
Choose the model according to the information you need: two temperature points, or temperature and relative humidity together.
| Model | Measurements | Catalogue number |
|---|---|---|
| SK-L751 | Two temperature channels | 8800-00 |
| SK-L754 | One temperature channel and one humidity channel | 8870-00 |
Measurement range depends on the connected probe. Specify the required logger and probe combination when ordering.
Each channel stores up to 16,000 readings. Four logging modes let you choose how the memory is used:
A preset start function allows recording to begin at a scheduled date and time. Select the interval around the changes you need to capture and the duration of the study.
For a short equipment check, closely spaced readings may be useful. For longer storage monitoring, consider the required review frequency and how much history must remain available before downloading.
The included software supports data analysis and real-time transmission to a connected PC. Logged data can also be copied to microSD, while CSV export supports further review in compatible spreadsheet software.
Before starting a recording session, assign clear logger identification and confirm the date, time and recording settings. For software use, check compatibility with the intended PC operating system.

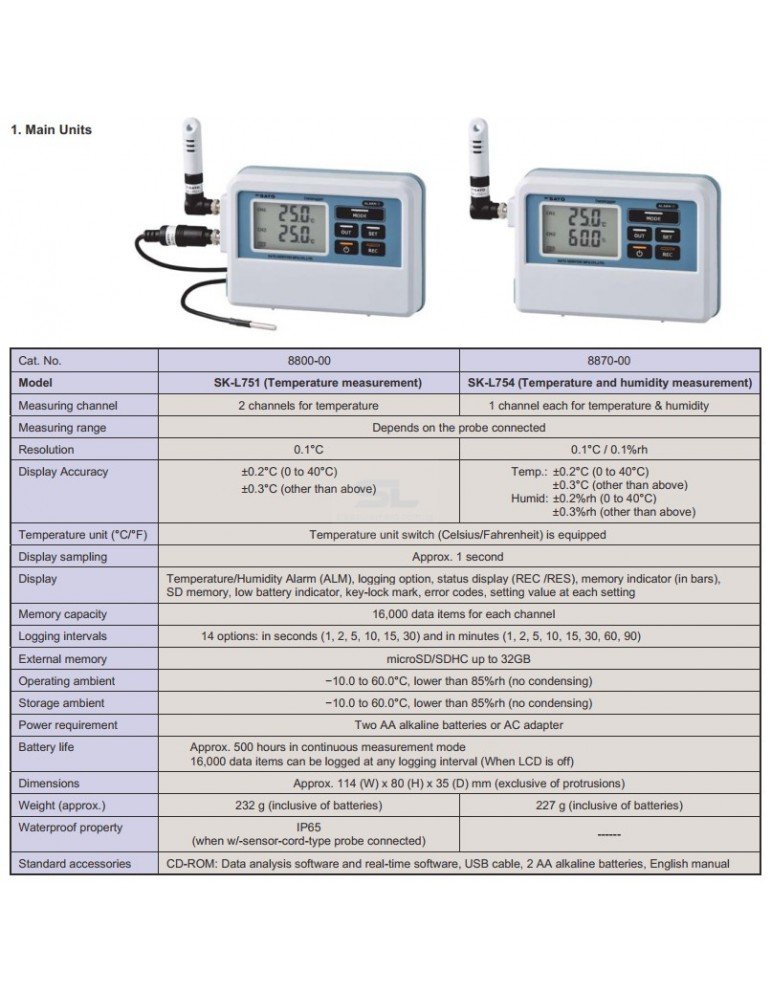

| Parameter | Specification |
|---|---|
| Memory capacity | 16,000 readings per channel |
| Logging intervals | 1, 2, 5, 10, 15 or 30 seconds; 1, 2, 5, 10, 15, 30, 60 or 90 minutes |
| Display resolution | 0.1°C; 0.1% RH on SK-L754 |
| Temperature units | °C / °F |
| External storage | microSD / microSDHC, up to 32 GB |
| Power supply | Two AA alkaline batteries or optional AC adapter |
| Logger operating conditions | -10 to +60°C, below 85% RH, non-condensing |

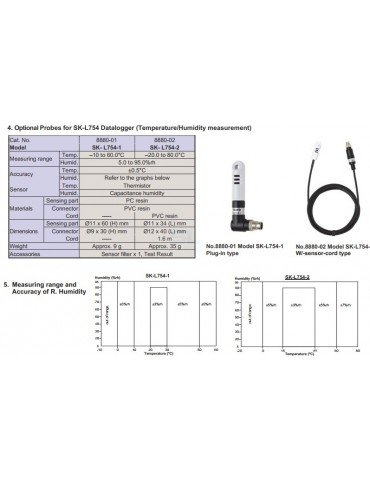

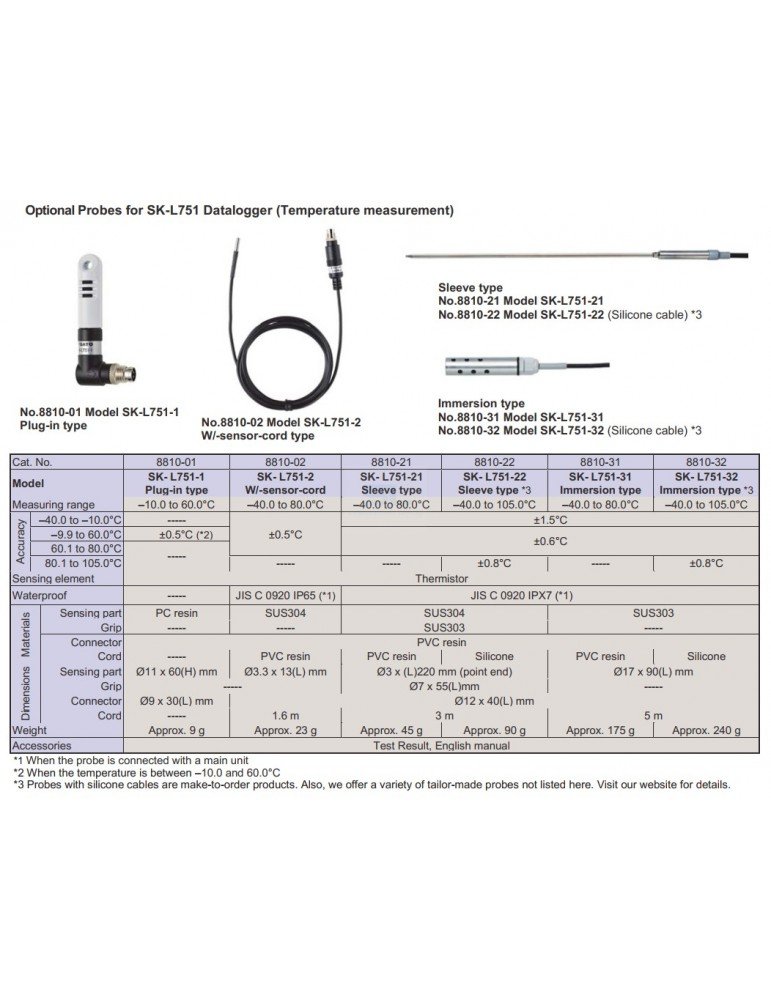

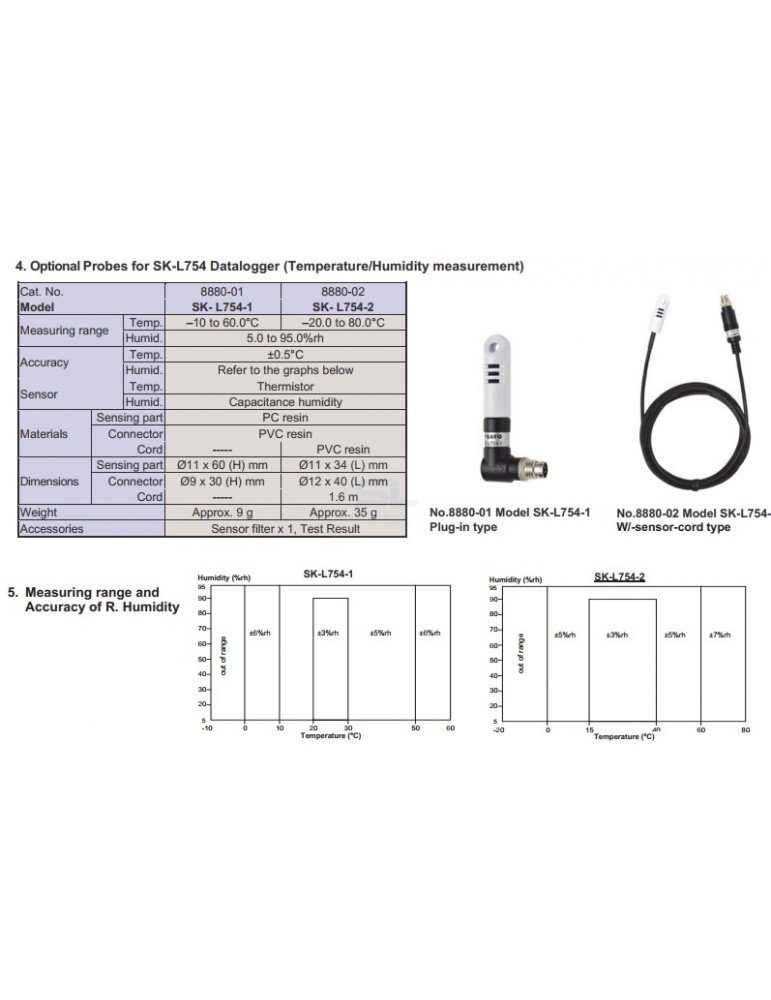

Choose the probe around the actual measurement location. Consider the required temperature or humidity range, cable length, access and environmental conditions.
For refrigerator or freezer measurements, check the probe rating and cable route while keeping the logger within its own operating limits. For room monitoring, select a position representative of the area being assessed.
Review the model and probe specifications together. Display resolution alone does not describe the accuracy of the complete measurement system.

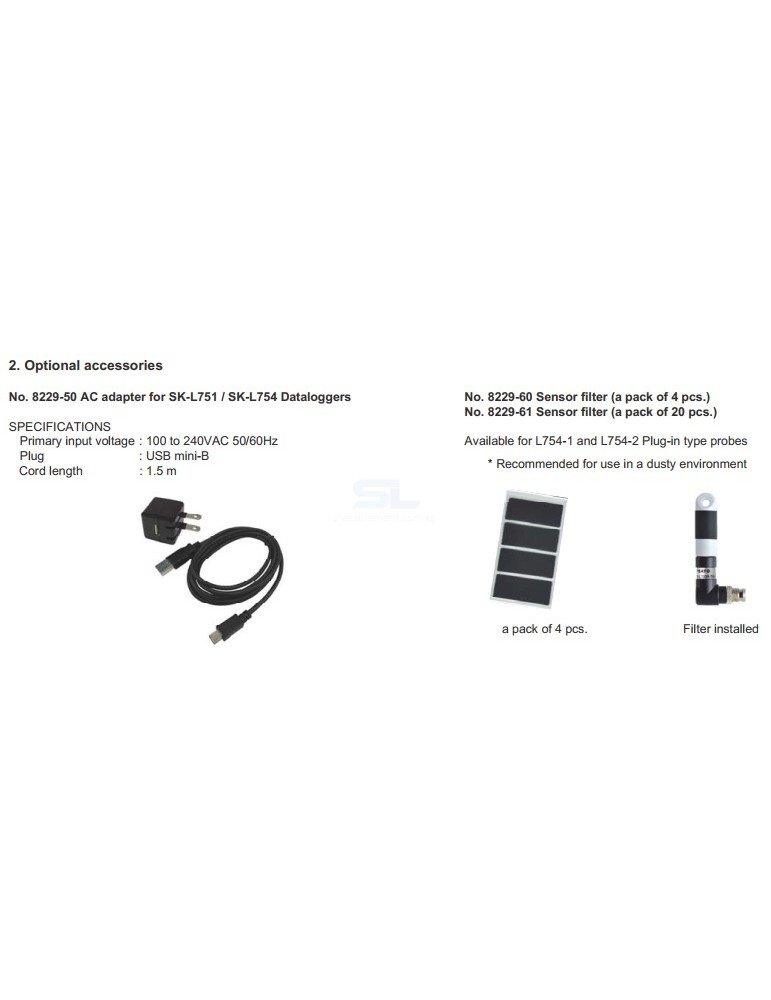

Contact us for pricing and availability. Include the preferred model, quantity, measurement range and probe requirements. If you need calibration documentation or an AC adapter, include these in your enquiry.
|
Download |
The Sato SK-L750 series data loggers record temperature or temperature and humidity for later review on a PC. Choose the SK-L751 for two-channel temperature measurement or the SK-L754 for combined temperature and humidity recording.

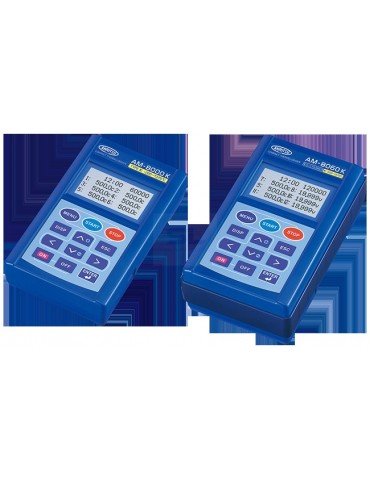

The Anritsu AM-8000 series temperature datalogger is a portable instrument available in 6- and 12-channel models for recording multiple measurement points. Internal memory stores readings for transfer to a PC using dedicated software.
Discontinued model: The AM-8000 series has been replaced by the Anritsu AM-9000 series.
All Dickson chart recorders feature a large 8″ or 6" chart and user-selectable recording timeframes (1-day, 1-week, 1-month) and ranges.
Choose from the following features:
The Tempmate S1 USB temperature data logger is perfectly adapted to the cold chain applications in the food industry (storage and transport ), but also for monitoring for all types of goods: pharmaceuticals, blood, transportation of works of art, flowers, paper, …
Sato compact type thermohygrograph Mini-Cube 7008-00 fits almost anywhere at your convenience.
One box of 7 day charts included.
(Measuring range: -15 to 40°C 5 to 100%)
Dickson OCEAView™ brings wireless environmental monitoring, alarm notifications and traceable records into one platform. Monitor temperature, humidity and other critical parameters using compatible data loggers and sensors for refrigerators, freezers, laboratories, pharmaceutical storage and cold rooms.
Sekonic Digital Thermohygrograph ST50A Displays and records temperature and humidity simultaneously.With an electronic sensor of excellent responsiveness
Monnit ALTA® Wireless Thermocouple Sensors leverage Monnit’s award-winning remote monitoring platform to remotely monitor high-temperature applications, such as commercial ovens, kilns, and chimneys. Users benefit from a wireless data transmission range of 1,200+ ft, bank-grade security, and a temperature range of up to 400°C (752°F).
Monnit’s thermocouple is user-programmed to sleep for a specified interval, awake, capture analog data, and then convert this measurement into a temperature. If the sensor captures temperatures outside of user-specified thresholds, an alert is sent via text, email, or call. Monnit’s hardwired thermocouples feature a needle-style probe at the end of a 6’ lead (a K-Type Quick Connect Thermocouple is also available).
Sato 4-channel datalogger SK-L400T for temperature measurement with K type themocouple probes.
Possible to simultaneously display four temperatures from four different locations on the large LCD. The measured values can be logged on the SD card.
NB. Probes are separately purchased, not included in the main unit.
The Evikon E2244 humidity and temperature transmitter measures relative humidity and air temperature for connection to controllers, monitoring instruments and building management systems.

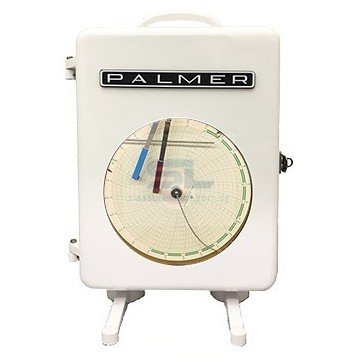

Palmer Wahl pressure and temperature chart recorders provide a paper record of measurements over time. Choose an 8-inch or 12-inch recorder with an aluminium or Pelican® case, configured for pressure, temperature or combined recording.
Monnit ALTA Soil Moisture Sensor measures soil moisture tension & soil temperature within the soil. It uses a resistive granular matrix element to accurately measure the matric water potential (soil moisture tension) in the soil and a thermistor based temperature element to measure temperature.
- Safe to use in both hot & freezing temperatures
- Reports matric potential (soil water tension)
- Moisture readings in centibar & kPa
- 0 to 240 centibar (kPA)
- Will not dissolve in soil
- Internally compensated for commonly found salinity levels
- Easy to install and use compared to traditional tensiometers
- Stainless steel electrodes
- No maintenance required
- Temperature readings in C/F.
- 5 ft removable lead
Sekonic Digital Thermohygrograph ST50M with memory card recording.
It records on chart paper and/or memory card. The data is ready to export to Excel (.csv) format.

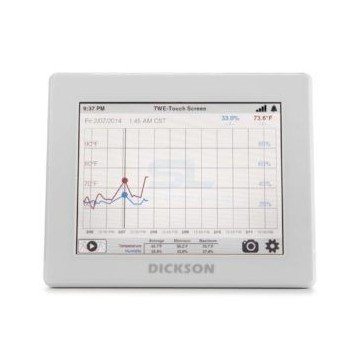

The Dickson TWP touchscreen data logger displays readings and measurement history on an 8-inch colour screen. Configure it for temperature, humidity or differential pressure monitoring using compatible replaceable sensors.
