Sato compact type thermohygrograph Mini-Cube 7008-00 fits almost anywhere at your convenience.
One box of 7 day charts included.
(Measuring range: -15 to 40°C 5 to 100%)

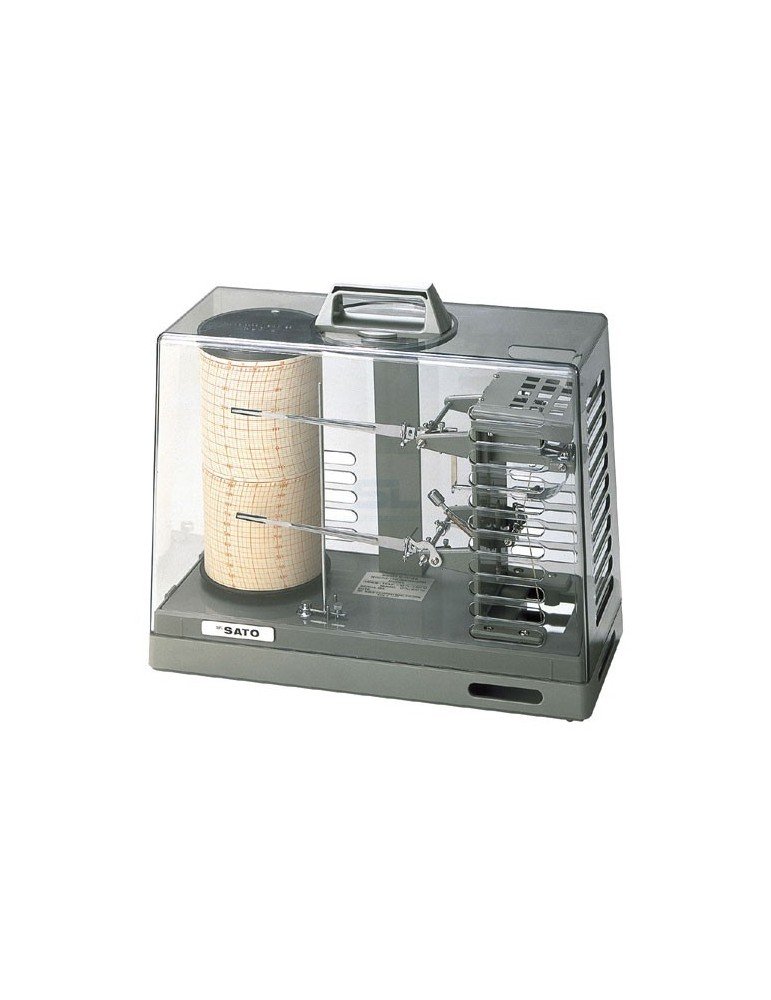

Sato NSII-Q Thermohygrograph – 7210-00 & 7211-00
:
The Sato NSII-Q Sigma II thermohygrograph records temperature and relative humidity together on a rotating paper chart. Its quartz-driven mechanism provides a visible measurement history for routine environmental checks.
- 7210-00: temperature range -15 to 40°C.
- 7211-00: temperature range -10 to 50°C.
- Humidity: 0 to 100% RH, non-condensing.
- Recording periods: selectable 1, 7 or 32 days.
Keep a paper record of room conditions with the Sato NSII-Q Sigma II thermohygrograph. Temperature and relative humidity are traced onto the same chart, allowing staff to review changes over time and retain the completed sheet with their inspection records.
The transparent cover keeps the chart visible during operation. A quartz clock drives the recording drum, while separate sensing elements respond to temperature and humidity. The instrument operates independently of a computer or network connection.
Choose the correct temperature range
The 7210-00 and 7211-00 share the same recording format but use different temperature scales. Select the model that covers the expected conditions at your measurement location.
| Specification | 7210-00 | 7211-00 |
|---|---|---|
| Series / model | Sigma II / NSII-Q | Sigma II / NSII-Q |
| Temperature range | -15 to 40°C | -10 to 50°C |
| Humidity range | 0 to 100% RH, non-condensing | 0 to 100% RH, non-condensing |
| Chart rotation | 1, 7 or 32 days | 1, 7 or 32 days |
| Minimum chart graduation | 1°C / 1% RH | 1°C / 1% RH |
Recording periods to suit your review routine
- 1-day recording: useful when reviewing changes within individual working days.
- 7-day recording: supports a weekly chart replacement and review routine.
- 32-day recording: provides a longer overview with fewer chart changes.
Match the chart paper to both the selected recording period and the instrument's temperature range. Changing the drum speed also requires the corresponding chart format.
Measurement and operating specifications
| Temperature accuracy | ±1°C from 10 to 30°C; ±2°C elsewhere within the measuring range |
|---|---|
| Humidity accuracy | ±3% RH from 20 to 95% RH at 15 to 25°C; ±5% RH under other specified measuring conditions |
| Temperature sensor | Bimetallic strip |
| Humidity sensor | Human hair bundle |
| Recording pens | Replaceable violet cartridge pens |
| Power supply | Two C-size batteries |
| Battery life | Approximately one year in 7-day rotation mode |
| Dimensions | 336 (W) × 295 (H) × 148 (D) mm |
| Weight | Approximately 3.1 kg, excluding batteries |
Replacement chart paper and consumables
Select chart paper that matches your thermohygrograph's temperature range and recording period. All charts below include a 0 to 100% RH scale.
| Part number | Description | Temperature range | Pack quantity |
|---|---|---|---|
| 7210-60 | 1-day chart for 7210-00 | -15 to 40°C | 400 sheets |
| 7211-60 | 1-day chart for 7211-00 | -10 to 50°C | 400 sheets |
| 7210-62 | 7-day chart for 7210-00 | -15 to 40°C | 55 sheets |
| 7211-62 | 7-day chart for 7211-00 | -10 to 50°C | 55 sheets |
| 7210-64 | 32-day chart for 7210-00 | -15 to 40°C | 55 sheets |
| 7211-64 | 32-day chart for 7211-00 | -10 to 50°C | 55 sheets |
| 7210-90 / 7238-04 / 7238-02 | Spare cartridge pen, violet | — | 12 pieces for 7238-02; confirm pack size for other references |
| 7210-92 / 7238-08 / 7238-06 | Spare cartridge pen, red | — | 12 pieces for 7238-06; confirm pack size for other references |
| 7238-22 | Optional axial AC fan, 100–110 VAC | — | Confirm when ordering |
For replacement orders, provide the part number shown on your existing chart box or pen packaging so the correct supply can be confirmed.
7211-62 is the 7-day replacement chart for the 7211-00 instrument. It is a chart paper reference, not a thermohygrograph model number. The compatible violet cartridge pen is 7238-04.
Included accessories
Supplied with 55 sheets of 7-day chart paper, two C-size alkaline batteries and an instruction manual.
Contact us for pricing and availability. Specify 7210-00 or 7211-00, the quantity required and any additional chart paper or replacement pens.
|
Download |
The Sato NSII-Q Sigma II thermohygrograph records temperature and relative humidity together on a rotating paper chart. Its quartz-driven mechanism provides a visible measurement history for routine environmental checks.
- 7210-00: temperature range -15 to 40°C.
- 7211-00: temperature range -10 to 50°C.
- Humidity: 0 to 100% RH, non-condensing.
- Recording periods: selectable 1, 7 or 32 days.
