The Isuzu TH27R (TH-27R) thermohygrograph is discontinued. For a replacement temperature and humidity chart recorder, choose the Sato NSII-Q (Sigma II).
The Isuzu TH27R thermohygrograph has been discontinued. This page remains available for customers identifying an existing TH27R or TH-27R recorder and planning its replacement.
For continued temperature and humidity recording on paper, our recommended replacement is the Sato NSII-Q (Sigma II) thermohygrograph.
Explore Sato NSII-Q models, specifications and consumables

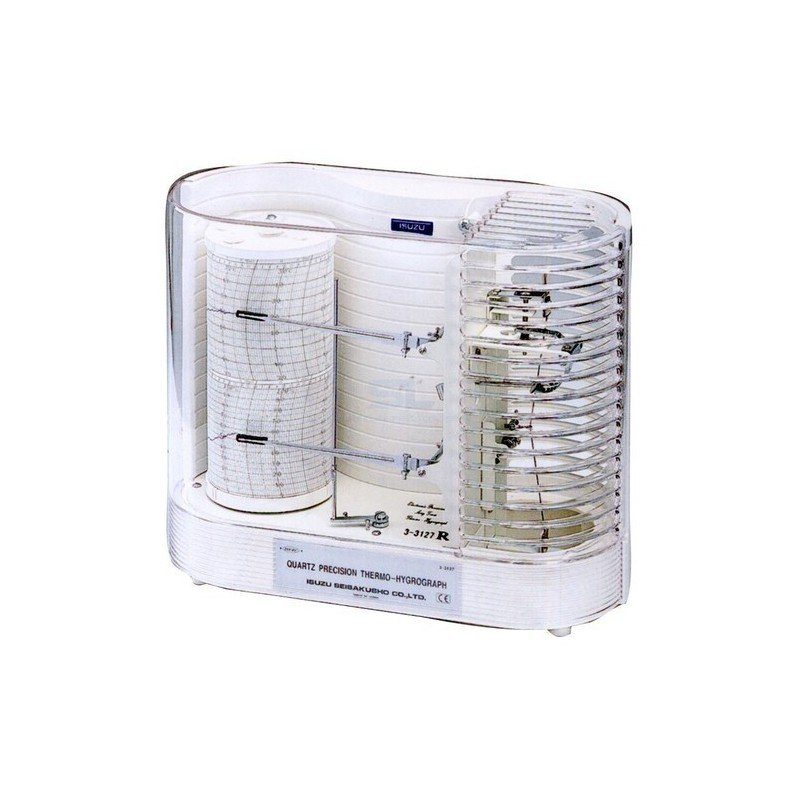

Previous Isuzu TH27R model, shown for identification.
The NSII-Q records temperature and relative humidity on a paper chart, with a quartz-driven drum selectable for 1-day, 7-day or 32-day rotation. Select the temperature range that covers your normal conditions and expected variations.
| Replacement model | Temperature range | Humidity range | Chart rotation |
|---|---|---|---|
| Sato NSII-Q 7210-00 | -15 to 40°C | 0 to 100% RH, non-condensing | 1, 7 or 32 days |
| Sato NSII-Q 7211-00 | -10 to 50°C | 0 to 100% RH, non-condensing | 1, 7 or 32 days |
The NSII-Q is an alternative from Sato. Confirm its specifications against your application rather than assuming that every TH27R feature or accessory is identical.
Existing TH27R paper and pens should not be assumed interchangeable with NSII-Q consumables. Use the chart and pen references listed for the selected Sato recorder.
| Requirement | Information to provide |
|---|---|
| Charts for an existing TH27R | Chart part number, temperature and humidity scales, recording period, and a photograph of the current sheet |
| Pens for an existing TH27R | Pen reference, colour and a photograph of the fitted cartridge |
| Consumables for a new NSII-Q | Selected recorder model, chart period and required quantity |
For existing Isuzu TH27R thermohygrographs, the consumable references below are retained from our previous listing. Please confirm compatibility and availability before ordering.
| Consumable | Listed reference | Details |
|---|---|---|
| 7-day chart paper | 20012-7 | Temperature scale: -20 to 50°C. Humidity scale: 0 to 100% RH. Pack: 55 sheets per box. |
| 32-day chart paper | 20012-31 | Temperature scale: -10 to 50°C. Humidity scale: 0 to 100% RH. Pack: 15 sheets per box. |
| Violet cartridge pens | 7210-90 / 7238-04 / 7238-02 (12-piece pack) |
Violet recording ink. |
| Red cartridge pens | 7210-92 / 7238-08 / 7238-06 (12-piece pack) |
Red recording ink. |
Before ordering: Send the recorder model, a photograph of the existing chart or pen, and the required quantity. Chart paper must match the recorder's scale and drum rotation period. The references above should not be assumed interchangeable with each other or with consumables for the Sato NSII-Q replacement.
Contact us for replacement pricing and availability. Include your existing TH27R nameplate or chart photograph, required measuring range and quantity.
|
