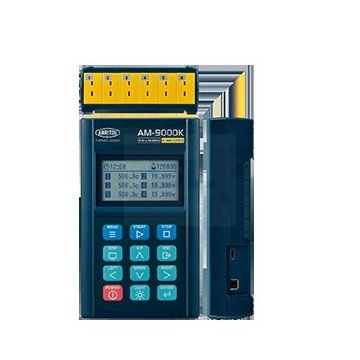

The Anritsu AM-9000 series temperature datalogger records measurements across 6 or 12 channels, with fixed thermocouple and multi-input models available. Store readings in internal memory and transfer them to a PC through USB using optional AMS-950 analysis software.
AMS-950 software is sold separately.
Record several temperature points with one portable instrument. The Anritsu AM-9000 series Thermologger offers 6- and 12-channel configurations, internal data storage and USB communication for transferring recorded measurements to a PC.
Choose a fixed thermocouple model when your measurement setup uses one thermocouple type, or a multi-input model when you need greater input flexibility. Start with the number of measurement points and the probes you intend to connect.

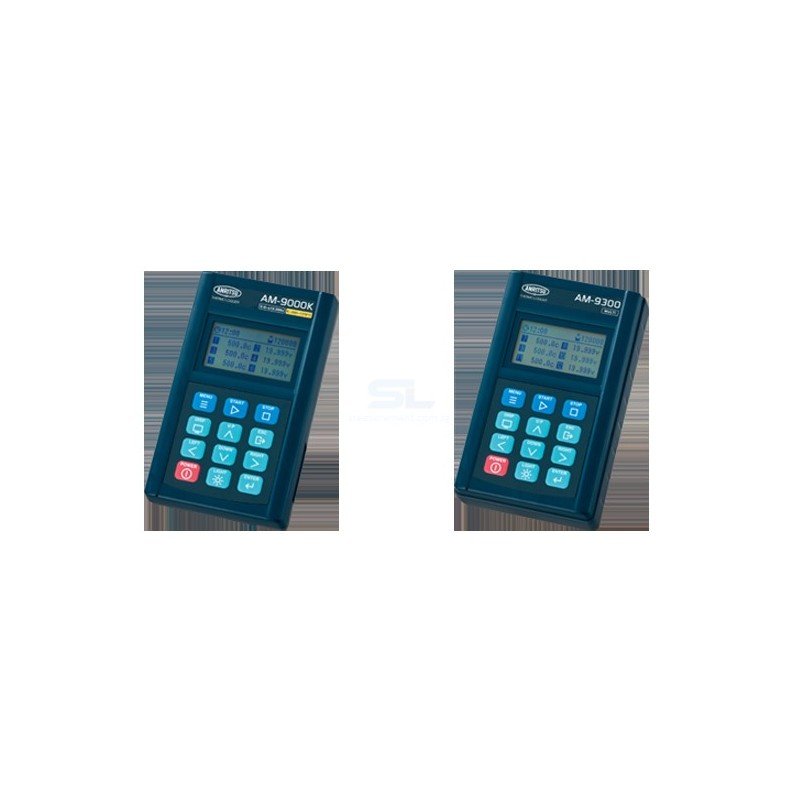

| Model | Channels | Input configuration | Selection guide |
|---|---|---|---|

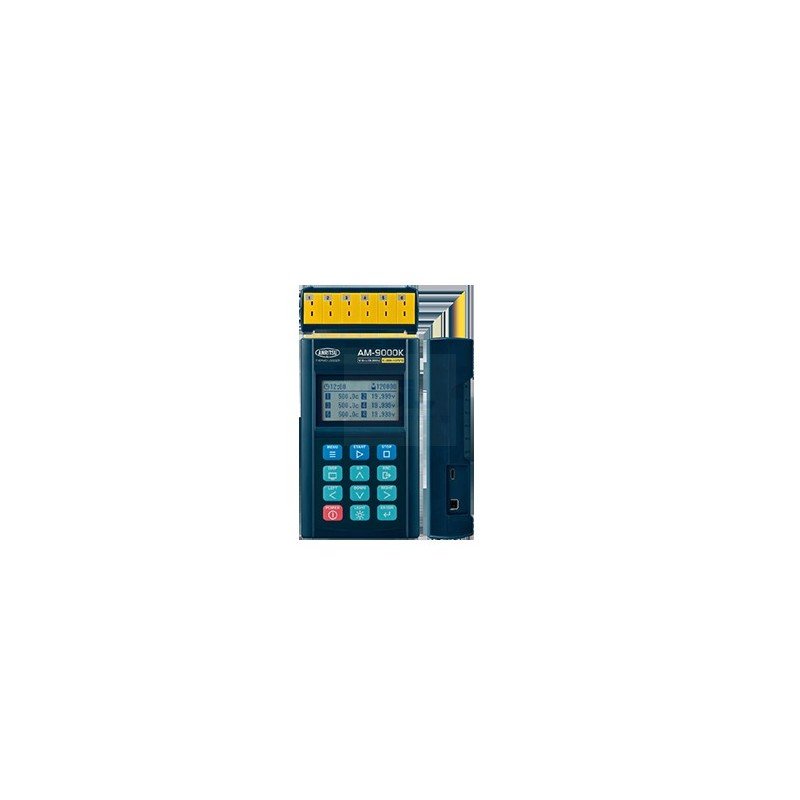

| AM-9000E / AM-9000K | 6 | Fixed thermocouple type | Up to six points using the selected thermocouple type. |

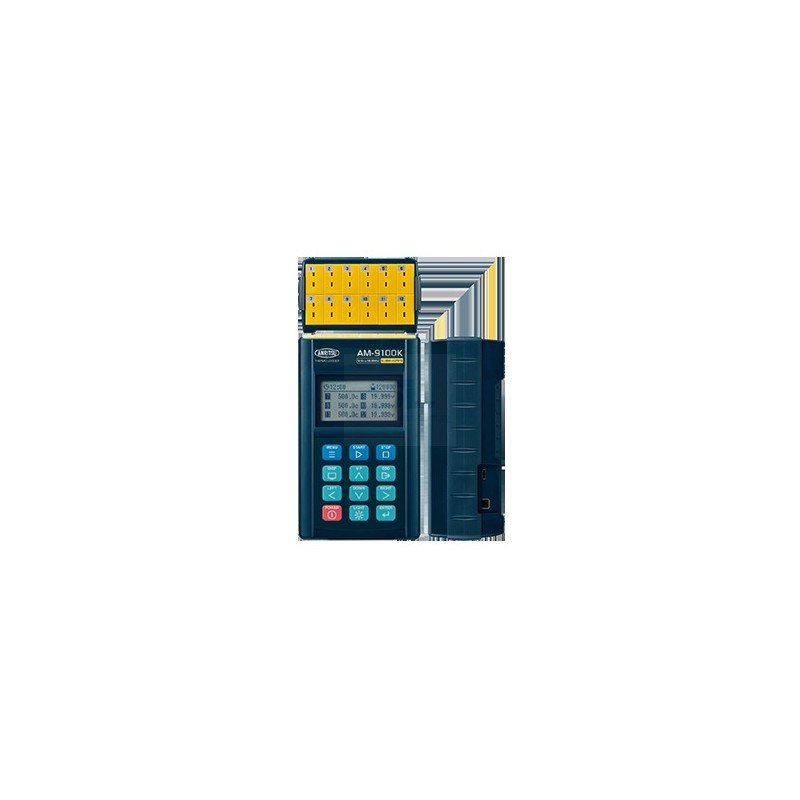

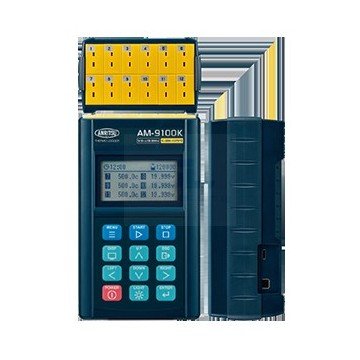

| AM-9100E / AM-9100K | 12 | Fixed thermocouple type | More measurement points using the selected thermocouple type. |

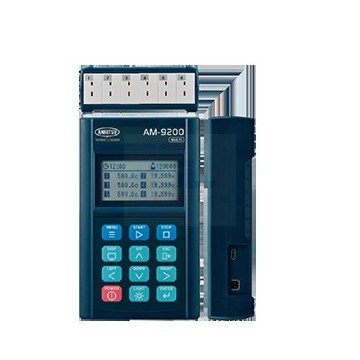

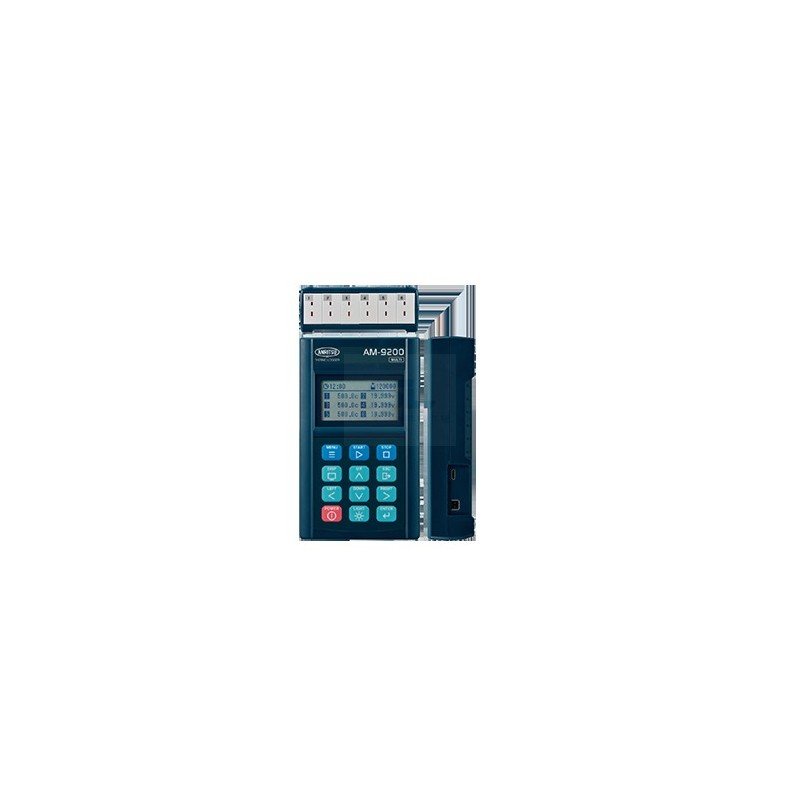

| AM-9200 | 6 | Multi-input | A six-channel setup requiring selectable thermocouple inputs or DC voltage measurement. |

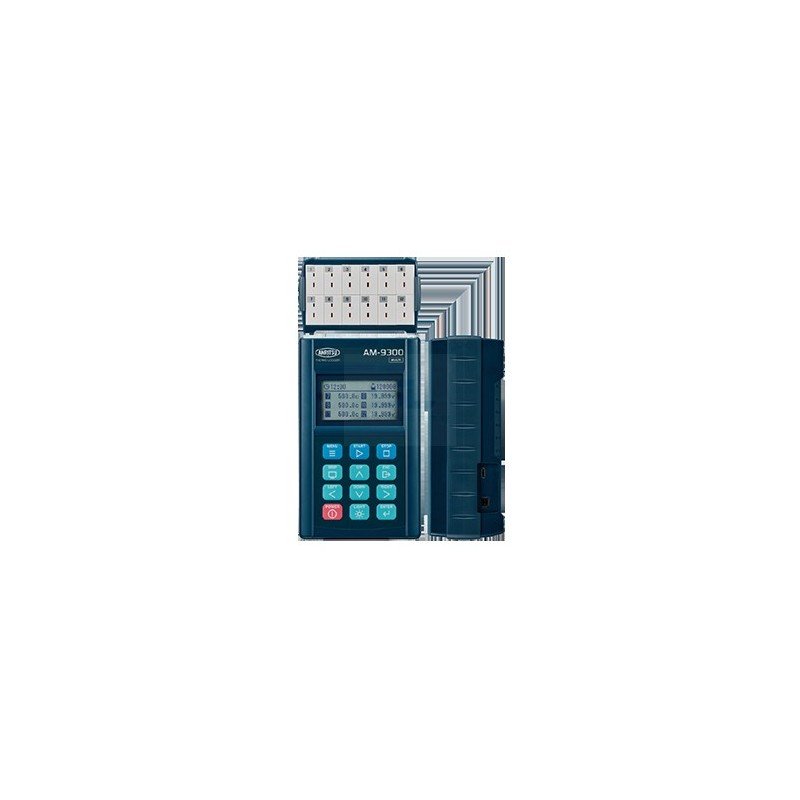

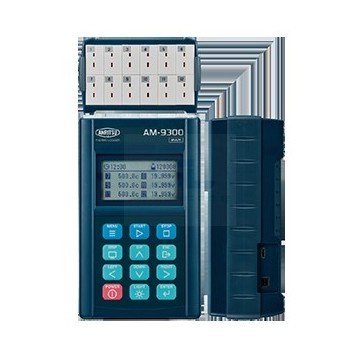

| AM-9300 | 12 | Multi-input | A twelve-channel setup requiring selectable thermocouple inputs or DC voltage measurement. |
Type E and K fixed-input models are listed above. Type J, T and R versions are optional; specify the required input when enquiring.
| Specification | Details |
|---|---|
| Memory capacity | 120,000 readings |
| PC interface | USB 2.0, Micro-B |
| Temperature resolution | 0.1°C / 1°C |
| DC voltage input | AM-9200 / AM-9300: ±20.000 V; 0.001 V resolution |
| Display | 128 × 64-dot graphic LCD |
| Power supply | Four AA alkaline batteries or optional AC adapter |
| Operating environment | 0 to 40°C; 15 to 80% RH, non-condensing |
| Thermocouple type | Instrument measurement range |
|---|---|
| E | -200 to 800°C |
| K | -200 to 1370°C |
| J | -200 to 1100°C |
| T | -200 to 400°C |
| R | 0 to 1760°C |
Available inputs depend on the selected model. The connected probe must also be rated for the intended temperature and measurement conditions. Refer to the catalogue for accuracy, recording intervals and operating conditions.
AMS-950 analysis software is available separately for transferring recorded data to a PC. Include software in your enquiry if you need to review recordings on a computer.
Standard supplied items include a manual, test report, soft case, communication cable and four AA alkaline batteries. Optional accessories include an AC adapter and carrying case.
Before ordering, confirm the probe configuration, required cable lengths and PC software compatibility. Identify any accessories you already own so their suitability can be checked.
The AM-9000 series succeeds the Anritsu AM-8000 temperature datalogger. Send the full model number of your existing instrument when requesting a replacement.
Check input type, channel count and recording requirements before selecting the new model. Existing probes, software, power adapters and communication cables should be checked individually for compatibility.
For an AM-9000 series quotation, provide your preferred model, quantity, thermocouple type and delivery country. If you have not selected a model, tell us how many points you need to measure, the temperature range and how often readings must be recorded.
Please also identify any probes, AMS-950 software or power accessories required with your order. Use the product enquiry options on this page to contact SL Measurement.
|
