Anritsu ST & STN Flat Leaf Temperature Probes
:
Measure temperature at attached sensing points with Anritsu ST and STN flat leaf temperature probes. Their flexible tape construction suits surface attachment and measurement locations where a conventional rigid probe is difficult to position.
- ST series: Flat leaf probe assemblies with cable and connector configurations.
- STN series: Replaceable sensing tapes used with a compatible extension cable.
- Thermocouple: Type K or Type E.
- Temperature: From -50°C to 210°C, 350°C or 400°C, depending on coating and tape length.
Position the sensing point where it is needed with Anritsu ST and STN flat leaf temperature probes. The flexible tape can be attached to a measurement target using a suitable fixing method, providing an alternative to holding a rigid probe against the surface.
Select the tape shape, coating and length around the measurement location. Then match the thermocouple type, cable and connector to the thermometer or data logger.
Anritsu ST flat leaf probes with flexible tape construction.
ST or STN: which construction?
| Feature | ST series | STN series |
|---|---|---|
| Configuration | Probe assembly specified with cable and connector. | Replaceable sensing tape connected through a compatible extension cable. |
| Ordering focus | Specify the complete probe code. | Specify the sensing tape and compatible cable arrangement. |
| Thermocouple | Type E or Type K. | Type E or Type K. |
| Selection considerations | Suitable when a complete probe assembly is preferred. | Consider when sensing tapes need to be changed between measurement tasks. |
STN is an alternative construction, not a direct replacement for every ST assembly. Confirm the tape connection and extension cable before ordering.
Choose the tape shape and coating

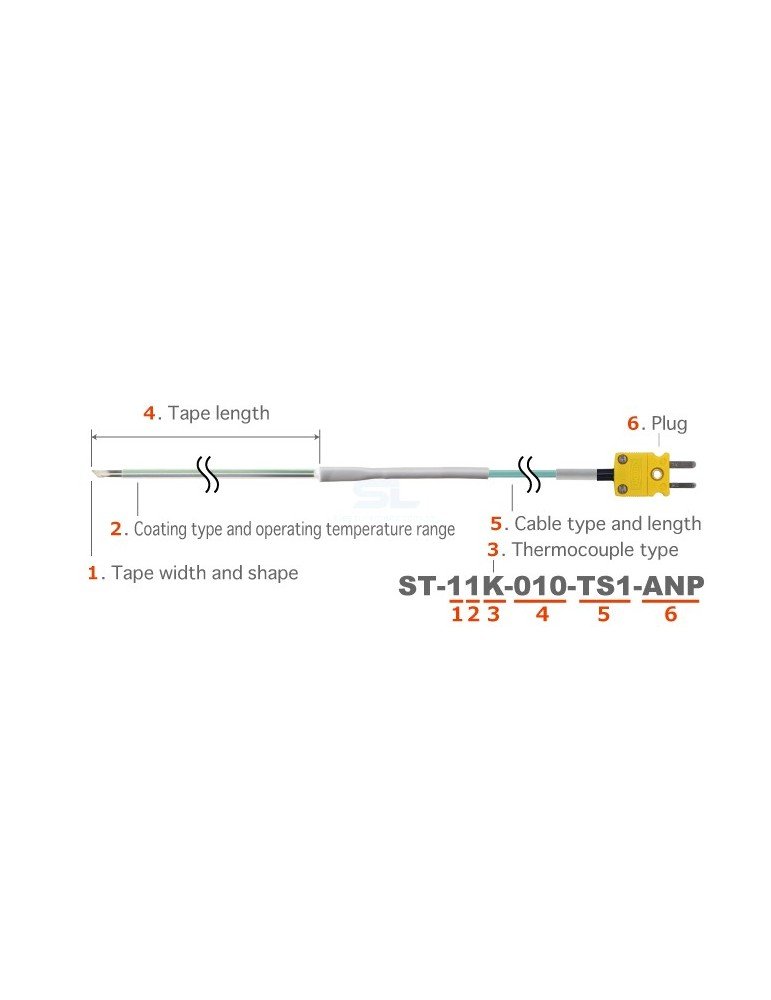

ST selection guide. Confirm the complete combination of tape, coating, length, cable and plug.
| Coating code | Construction | Sensing-tape temperature range | Nominal response |
|---|---|---|---|
| ST-*1 / STN-*1 | Fluororesin coating, open sensing point. | -50 to 210°C | 2 seconds |
| ST-*2 / STN-*2 | Fully fluororesin coated. | -50 to 210°C | 8 seconds |
| ST-*3 / STN-*3 | Polyimide coating, open sensing point. | -50 to 400°C at tape lengths up to 150 mm; -50 to 350°C above 150 mm. | 2 seconds |
| ST-*4 / STN-*4 | Fully polyimide coated. | -50 to 400°C at tape lengths up to 150 mm; -50 to 350°C above 150 mm. | 8 seconds |
| ST-25 | Separate ST-25 construction. | -50 to 210°C | 2 seconds |
The asterisk represents the selected tape-shape code. The sensing-tape temperature rating does not apply automatically to the cable, connection or plug.
ST probe models and reference pictures
The following complete references retain the ST models previously listed on this page. Type E and Type K versions must be matched to the connected instrument.
| Probe | Type E model | Type K model | Temperature range | Response |
|---|---|---|---|---|
ST-11  |
ST-11E-010-TS1-ANP | ST-11K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-12  |
ST-12E-010-TS1-ANP | ST-12K-010-TS1-ANP | -50 to 210°C | 8 s |
ST-13  |
ST-13E-015-GW1-ANP | ST-13K-015-GW1-ANP | -50 to 400°C | 2 s |
ST-21  |
ST-21E-010-TS1-ANP | ST-21K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-24  |
ST-24E-015-GW1-ANP | ST-24K-015-GW1-ANP | -50 to 400°C | 8 s |
ST-31  |
ST-31E-010-TS1-ANP | ST-31K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-32  |
ST-32E-010-TS1-ANP | ST-32K-010-TS1-ANP | -50 to 210°C | 8 s |
ST-34  |
ST-34E-015-GW1-ANP | ST-34K-015-GW1-ANP | -50 to 400°C | 8 s |
ST-41  |
ST-41E-010-TS1-ANP | ST-41K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-42  |
ST-42E-015-TS1-ANP | ST-42K-015-TS1-ANP | -50 to 210°C | 8 s |
ST-44  |
ST-44E-015-GW1-ANP | ST-44K-015-GW1-ANP | -50 to 400°C | 8 s |
ST-25  |
ST-25E-100-TC1-ANP | ST-25K-100-TC1-ANP | -50 to 210°C | 2 s |
STN replaceable sensing tapes
STN separates the replaceable sensing tape from the compatible extension cable. Confirm both parts when assembling a measurement set. The references below are listed by Anritsu as five-piece tape sets; check the supplied contents when ordering.
| Type E reference | Type K reference | Tape length | Temperature range | Response |
|---|---|---|---|---|
| STN-11E-010 | STN-11K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-31E-010 | STN-31K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-11E-200 | STN-11K-200 | 2000 mm | -50 to 210°C | 2 s |
| STN-31E-100 | STN-31K-100 | 1000 mm | -50 to 210°C | 2 s |
| STN-21E-010 | STN-21K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-41E-010 | STN-41K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-22E-010 | STN-22K-010 | 100 mm | -50 to 210°C | 8 s |
| STN-34E-015 | STN-34K-015 | 150 mm | -50 to 400°C | 8 s |
| STN-23E-100 | STN-23K-100 | 1000 mm | -50 to 350°C | 2 s |
| STN-43E-010 | STN-43K-010 | 100 mm | -50 to 400°C | 2 s |
Additional ST Type K references
The following grouped references are retained from the existing product listing. They identify model and length-code groups, not complete order codes. Confirm the exact tape length, cable and connector combination.
| Model | Previously listed reference groups |
|---|---|
| ST-11K | ST-11K-003–015; ST-11K-020–050; ST-11K-060–100; ST-11K-150; ST-11K-200 |
| ST-12K | ST-12K-003–015; ST-12K-020–050; ST-12K-060–100; ST-12K-150; ST-12K-200 |
| ST-13K | ST-13K-003–015; ST-13K-020–050; ST-13K-060–100; ST-13K-150; ST-13K-200 |
| ST-14K | ST-14K-003–015; ST-14K-020–050; ST-14K-060–100; ST-14K-150; ST-14K-200 |
| ST-21K | ST-21K-003–015; ST-21K-020–050; ST-21K-060–100; ST-21K-150; ST-21K-200 |
| ST-22K | ST-22K-003–015; ST-22K-020–050; ST-22K-060–100; ST-22K-150; ST-22K-200 |
| ST-23K | ST-23K-003–015; ST-23K-020–050; ST-23K-060–100; ST-23K-150; ST-23K-200 |
| ST-24K | ST-24K-003–015; ST-24K-020–050; ST-24K-060–100; ST-24K-150; ST-24K-200 |
Tolerance and measurement conditions
| Temperature | ST / STN coating codes 1–4 | ST-25 |
|---|---|---|
| -50°C to below -40°C | ±3.5°C | ±3.5°C |
| 0°C | ±2.5°C | ±2.5°C |
| 100°C | ±2.5°C | ±2.5°C |
| 200°C | ±2.5°C | ±2.5°C |
| 300°C | ±2.5°C; high-temperature types only. | Outside range. |
| 400°C | ±3.0°C; high-temperature types with tape length up to 150 mm only. | Outside range. |
For coating codes 1–4 at -40°C and above, within the permitted operating range, tolerance is the greater of ±2.5°C or ±0.75% of the absolute temperature in °C. ST-25 tolerance is ±2.5°C from -40 to 210°C.
Published tolerance is established under internal-temperature test conditions with sufficient heat capacity. Published response time is the time to reach 99% of the temperature change in boiling water or vapour. Attachment, contact quality and the target material affect practical surface measurements.
Anritsu does not assign a general durability rating for these special-application probes and lists them as non-repairable. STN tape replacement is a feature of its construction, rather than repair of a damaged tape.
Product video
Selecting and attaching the probe
Describe the target material, available contact area and how the tape will be secured. The fixing method must suit the surface and temperature without creating an unacceptable delay or disturbing the measurement.
Confirm the thermocouple input and connector on your instrument. Type E and Type K probes require the corresponding input setting and compatible connections.
Request a quotation
Contact us for pricing and availability. Please include:
- ST complete probe or STN replaceable sensing tape.
- Type E or Type K thermocouple.
- Minimum and maximum measurement temperatures.
- Tape shape, coating and required length.
- Target material and proposed attachment method.
- Thermometer or data logger model, cable length and connector.
- Quantity and existing full model code, if replacing a probe.
|
