Measure the internal temperature of liquids and semi-solid materials with Anritsu BS Series temperature probes. Choose a fine sleeve-type probe or a grip-type assembly according to the measurement depth, access and handling requirements.
Check temperatures within a liquid or semi-solid sample using an Anritsu BS Series internal temperature probe. The range includes fine sleeve-type probes for restricted access and grip-type probes for measurements where a handle is preferred.
Select the diameter and insertion length around the sample, then confirm the operating temperature, coating and instrument connection. A suitable probe should reach the required measurement point without unnecessary force or bending.
Anritsu BS Series internal temperature probes.
All models below are available with Type E or Type K thermocouples. The diameter shown includes the coating where applicable.
| Model | Construction | Coating | Diameter | Temperature range | Response |
|---|---|---|---|---|---|
| BS-91 | Sleeve | Uncoated | 0.9 mm | -200 to 300°C | 0.5 s |
| BS-92 | Sleeve | Fluororesin | 1.3 mm | -200 to 200°C | 20 s |
| BS-11 | Sleeve | Uncoated | 1.5 mm | -200 to 300°C | 1.5 s |
| BS-12 | Sleeve | Fluororesin | 1.9 mm | -200 to 200°C | 20 s |
| BS-21 | Grip | Uncoated | 2.1 mm | -200 to 500°C | 2.5 s |
| BS-22 | Grip | Fluororesin | 2.5 mm | -200 to 200°C | 20 s |
| BS-31 | Grip | Uncoated | 3.0 mm | -200 to 500°C | 3 s |
| BS-32 | Grip | Fluororesin | 3.4 mm | -200 to 200°C | 20 s |
| BS-51 | Grip | Uncoated | 5.0 mm | -200 to 500°C | 5 s |
Temperature limits: The ranges above apply to the sensing portion. Keep the grip, sleeve, cable and plug within their own permitted operating conditions.

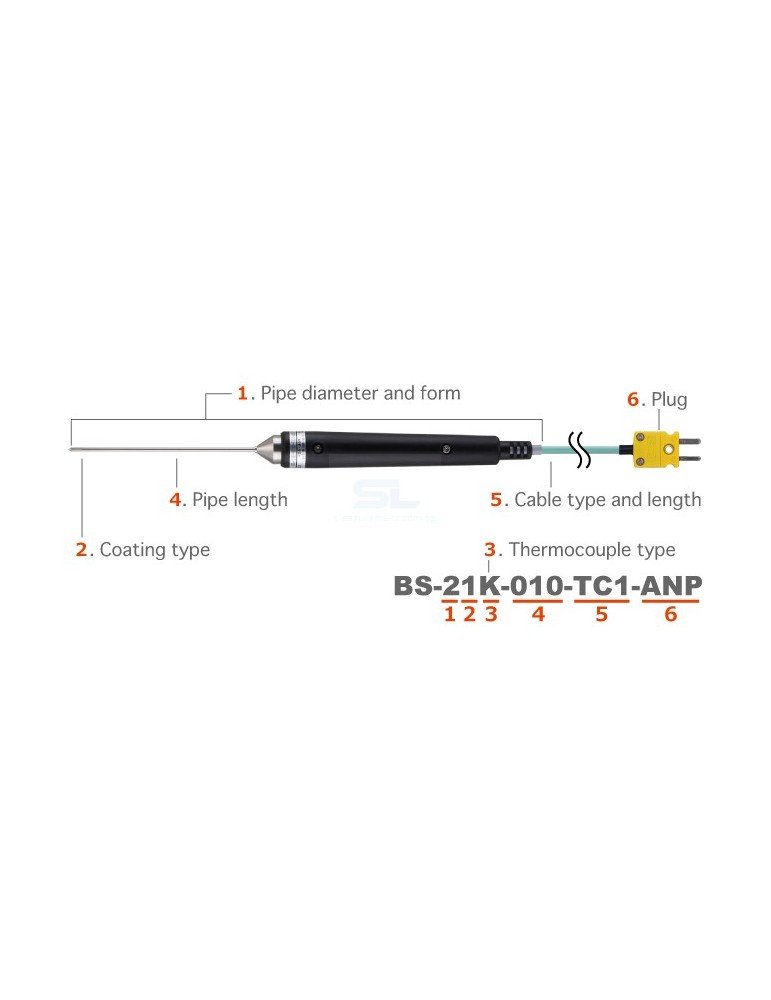

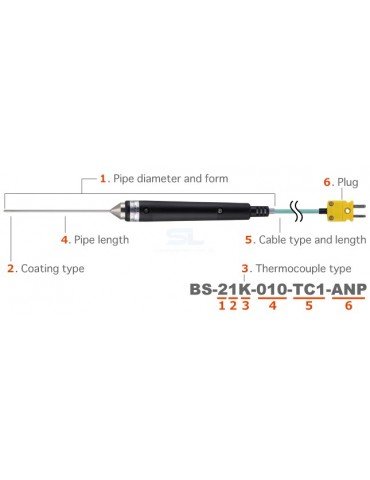

Select diameter, coating, thermocouple, probe length, cable and connector.
The following configurations retain the full Type E and Type K references previously listed on this page.
| Probe | Type E model | Type K model | Probe length |
|---|---|---|---|
BS-21  |
BS-21E-010-TC1-ANP | BS-21K-010-TC1-ANP | 100 mm |
BS-31  |
BS-31E-030-TC1-ANP | BS-31K-030-TC1-ANP | 300 mm |
BS-91  |
BS-91E-010-TS1-ANP | BS-91K-010-TS1-ANP | 100 mm |
BS-11  |
BS-11E-010-TS1-ANP | BS-11K-010-TS1-ANP | 100 mm |
BS-22  |
BS-22E-010-TC1-ANP | BS-22K-010-TC1-ANP | 100 mm |
BS-51  |
BS-51E-100-TC1-ANP | BS-51K-100-TC1-ANP | 1000 mm |
| Model family | Listed lengths |
|---|---|
| BS-91 / BS-92 | 30, 50, 80 and 100 mm |
| BS-11 / BS-12 | 30, 50, 80, 100 and 150 mm |
| BS-21 / BS-22 | 50, 100, 150 and 200 mm |
| BS-31 / BS-32 | 100, 150, 200, 300 and 500 mm |
| BS-51 | 500 and 1000 mm |
Confirm the selected length with the required coating and complete ordering code. A fluororesin-coated BS-51 is not listed as a manufacturable option.
| Test temperature | BS-21 / BS-31 / BS-51 | BS-91 / BS-11 | BS-22 / BS-32 / BS-92 / BS-12 |
|---|---|---|---|
| 0°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 100°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 200°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 300°C | ±2.5°C | ±2.5°C | Outside range |
| 400°C | ±3.0°C | Outside range | Outside range |
| 500°C | ±3.8°C | Outside range | Outside range |
The listed tolerances relate to internal measurements with sufficient heat capacity. For sub-zero work, specify the actual measurement temperature and required uncertainty so the applicable tolerance can be confirmed.
Response times represent 99% response in boiling water or vapour. Sample viscosity, insertion depth and contact conditions can change the response in use.
| Item | Specification |
|---|---|
| Probe tube | SUS304 stainless steel; fluororesin coating on the designated coated models. |
| Grip-type handle | Nylon resin. |
| Sleeve-type fitting | SUS316 stainless steel. |
| Manufacturer durability classification | Grip types: B, more than one year. Sleeve types: C, more than six months. These classifications are not a service-life guarantee. |
| Repairability | Listed by Anritsu as non-repairable. |
Restricted access: Check whether the smaller sleeve-type diameter can reach the measurement point. Include the sample consistency and any insertion resistance in your enquiry.
Routine immersion measurements: Select a length that reaches the required depth while keeping the handle and electrical connection clear of the sample.
Coated probes: Confirm chemical compatibility and allow for the larger diameter, lower maximum temperature and slower response.
Instrument connection: Match Type E or Type K to the thermometer or logger input. ANP identifies the miniature plug used in the complete references above; confirm the connector on your existing instrument.
Contact us for pricing and availability. Please include:
|
