Anritsu AX Series surface temperature probes with a flexible contact-support head for stable measurement on stationary surfaces.
The Anritsu AX Series is a configurable contact temperature probe for measuring stationary surfaces.
The AX Series is based on Anritsu's general-purpose surface probe construction with an additional contact-support head. The sensing head can tilt in all directions to help maintain close contact with the target when the operator's hand angle changes slightly during measurement.
Different head sizes, guard materials, pipe shapes, thermocouple types and lengths can be combined for applications from general surface measurement to high-temperature surfaces up to 800°C.
Good physical contact between the sensing element and the target is important for repeatable surface temperature measurement.

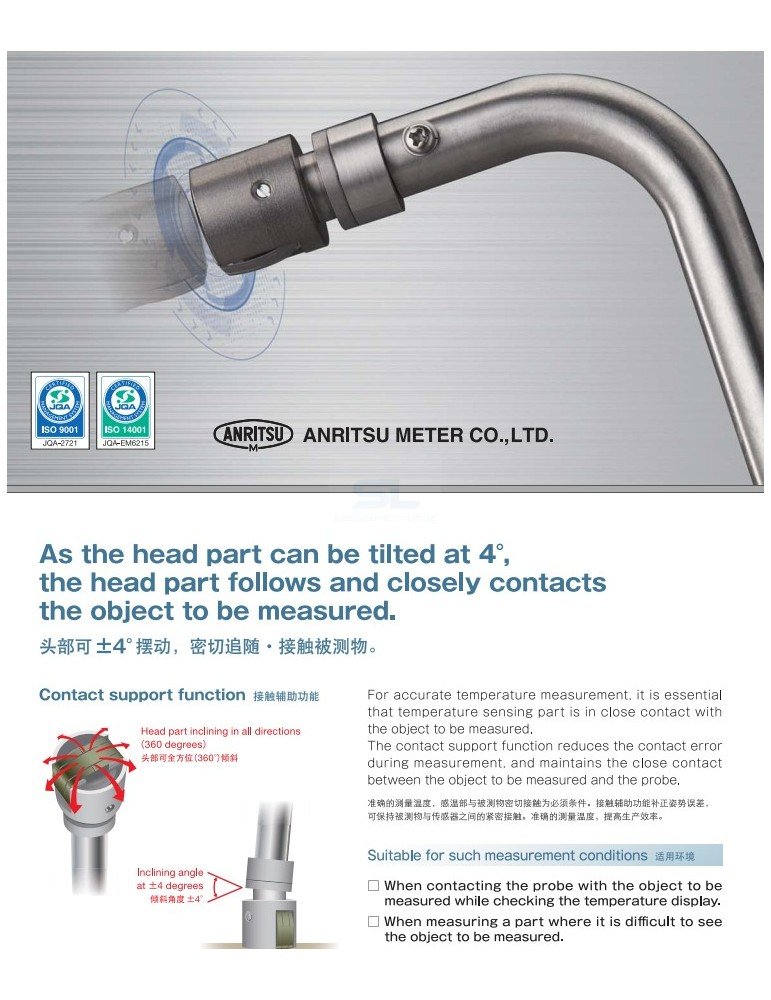

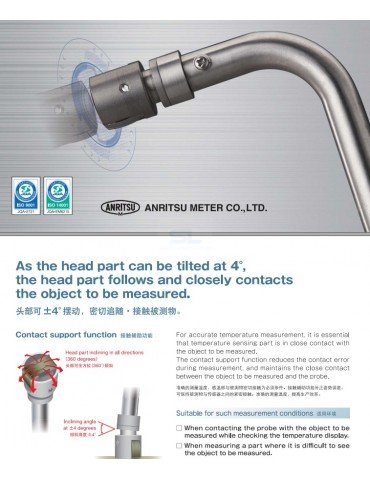

The AX head has a movable range of ±4°. This contact-support function allows the head to follow slight changes in probe angle while maintaining contact with the stationary surface.
| Measurement Type | Stationary surface temperature |
|---|---|
| Head Movement | ±4° |
| Thermocouple | Type K or Type E |
| Pipe Material | SUS316 stainless steel |
| Grip Material | Polyacetal |
| Repair | Repairable |

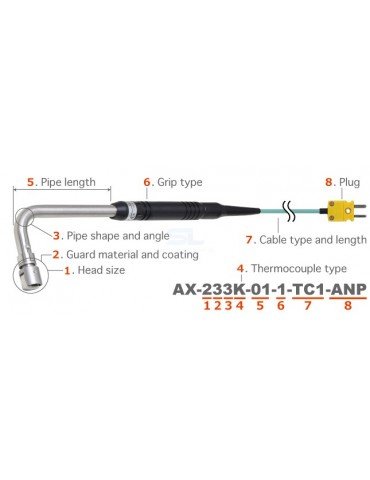

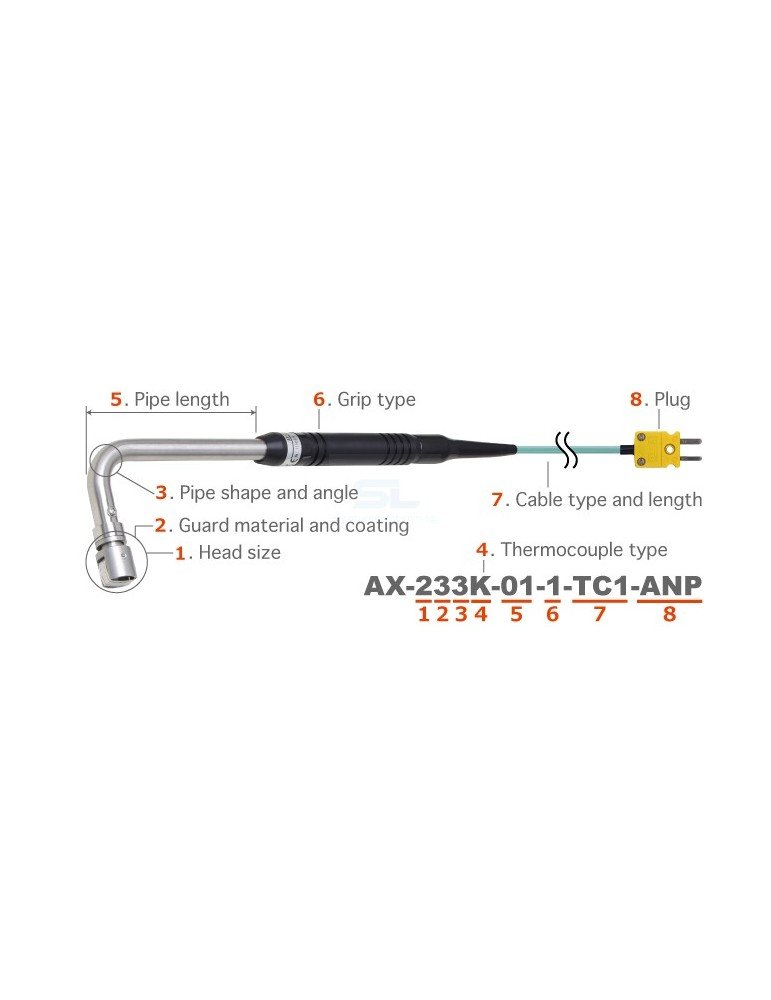

The complete AX model number identifies the head size, guard construction, pipe shape, thermocouple, pipe length, grip, cable and connector.
For example: AX-233K-01-1-TC1-ANP
Two sensing-head diameters are available.
| Code | Head Size | Typical Use |
|---|---|---|
| 2 | Ø15 mm | General surface measurement |
| 3 | Ø12 mm | Smaller targets and lower heat-capacity objects |
The second model digit identifies the guard material and contact-plate construction. It also determines the maximum operating temperature of the sensing head.
| Code | Guard / Contact Construction | Temperature Range | Response |
|---|---|---|---|
| 1 | Fluororesin guard | -50°C to 300°C | 1.5 s |
| 2 | Polyimide guard | -50°C to 400°C | 1.5 s |
| 3 | Stainless steel guard | -50°C to 500°C | 1.5 s |
| 4 | High-temperature stainless steel guard | -50°C to 800°C | 1.5 s |
| 5 | Fluororesin guard with coated contact plate | -50°C to 200°C | 3.5 s |
| 6 | Polyimide guard with coated contact plate | -50°C to 300°C | 3.5 s |
Polyimide constructions should not be selected for applications where the material may come into contact with food, internal organs or bodily fluids.
Several pipe arrangements are available to suit direct, angled and side access to the measurement point.
| Code | Pipe Shape | Contact-Plate Direction |
|---|---|---|
| 1 | Straight | Standard |
| 2 | 45° | Parallel to pipe direction |
| 3 | 90° bend | Parallel to pipe direction |
| 4 | 90° elbow | Parallel to pipe direction |
| 5 | 45° | Perpendicular to pipe direction |
| 6 | 90° bend | Perpendicular to pipe direction |
| 7 | 90° elbow | Perpendicular to pipe direction |
| K | Type K thermocouple |
|---|---|
| E | Type E thermocouple |
| Code | Pipe Length |
|---|---|
| 00 | 30 mm |
| 01 | 100 mm |
| 02 | 200 mm |
| 03 | 300 mm |
| 04 | 400 mm |
| 05 | 500 mm |
| 06 | 600 mm |
| 07 | 700 mm |
| 08 | 800 mm |
| 09 | 900 mm |
| 10 | 1000 mm |
The standard TC thermocouple cable can be specified in 0.5 m increments.
| Example Code | Cable Length |
|---|---|
| TC1 | 1 m |
| TC1.5 | 1.5 m |
| TC2 | 2 m |
| TC2.5 | 2.5 m |
| Code | Connection |
|---|---|
| ASP | Anritsu standard plug |
| ANP | Miniature thermocouple plug |
| W | Without plug |
| WT3 | Ø3 mm spade terminal |
| WT4 | Ø4 mm spade terminal |
| WT5 | Ø5 mm spade terminal |
| WC3 | Ø3 mm ring terminal |
| WC4 | Ø4 mm ring terminal |
| WC5 | Ø5 mm ring terminal |
| WA | Sheathed banana plug |
AX-231E-00-1-TC1-ANP and AX-231K-00-1-TC1-ANP use an Ø15 mm head, standard stainless-steel guard and straight 30 mm pipe.
| Temperature Range | -50°C to 500°C |
|---|---|
| Tolerance at 100°C | ±2.5°C |
| Response Time | 1.5 s |
| Durability | More than 75,000 contacts |
The AX-241 configuration uses the high-temperature stainless-steel guard. A 100 mm pipe configuration is shown below.
| Temperature Range | -50°C to 800°C |
|---|---|
| Tolerance at 100°C | ±2.5°C |
| Response Time | 1.5 s |
| Durability | More than 75,000 contacts |
The AX-314 configuration uses the smaller Ø12 mm sensing head, fluororesin guard and 90° elbow arrangement.
| Temperature Range | -50°C to 300°C |
|---|---|
| Tolerance at 100°C | ±2.5°C |
| Response Time | 1.5 s |
| Durability | More than 75,000 contacts |
The AX-233 configuration combines an Ø15 mm sensing head, standard stainless-steel guard and 90° bent pipe.
| Temperature Range | -50°C to 500°C |
|---|---|
| Tolerance at 100°C | ±2.5°C |
| Response Time | 1.5 s |
| Durability | More than 75,000 contacts |
The AX-243 configuration uses the high-temperature stainless-steel guard and is suitable for surface temperatures up to 800°C.
| Temperature Range | -50°C to 800°C |
|---|---|
| Tolerance at 100°C | ±2.5°C |
| Response Time | 1.5 s |
| Durability | More than 75,000 contacts |
| Model Class | Temperature Range | Response | Durability |
|---|---|---|---|
| AX-*1* | -50°C to 300°C | 1.5 s | More than 75,000 contacts |
| AX-*2* | -50°C to 400°C | 1.5 s | More than 75,000 contacts |
| AX-*3* | -50°C to 500°C | 1.5 s | More than 75,000 contacts |
| AX-*4* | -50°C to 800°C | 1.5 s | More than 75,000 contacts |
| AX-*5* | -50°C to 200°C | 3.5 s | More than 75,000 contacts |
| AX-*6* | -50°C to 300°C | 3.5 s | More than 75,000 contacts |
| Surface Temperature | AX-*1* | AX-*2* | AX-*3* | AX-*4* | AX-*5* | AX-*6* |
|---|---|---|---|---|---|---|
| -50°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 0°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 100°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 200°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±4.0°C | ±4.0°C |
| 300°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | - | ±6.0°C |
| 400°C | - | ±3.0°C | ±3.0°C | ±3.0°C | - | - |
| 500°C | - | - | ±3.8°C | ±3.8°C | - | - |
| 600°C | - | - | - | ±9.0°C | - | - |
| 700°C | - | - | - | ±10.5°C | - | - |
| 800°C | - | - | - | ±16.0°C | - | - |
The following Type K configurations preserve the full popular-model
|
