Measure stationary surface temperatures with Anritsu A Series contact probes. Select the head size, guard and shaft arrangement to suit the measurement point and operating temperature.
Need help maintaining surface contact as the holding angle changes? Compare the Anritsu AX Series flexible-head surface probe.
The Anritsu A Series is a configurable range of contact temperature probes for stationary surfaces. Select the sensing head, guard and shaft arrangement to suit the target, access space and operating temperature.

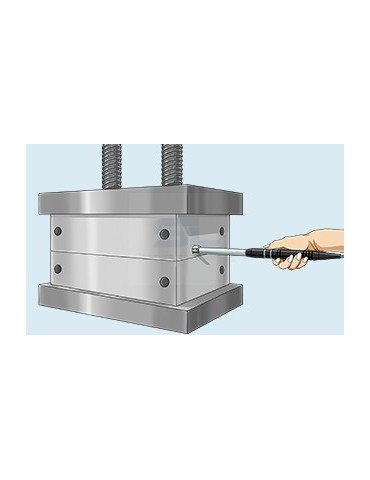

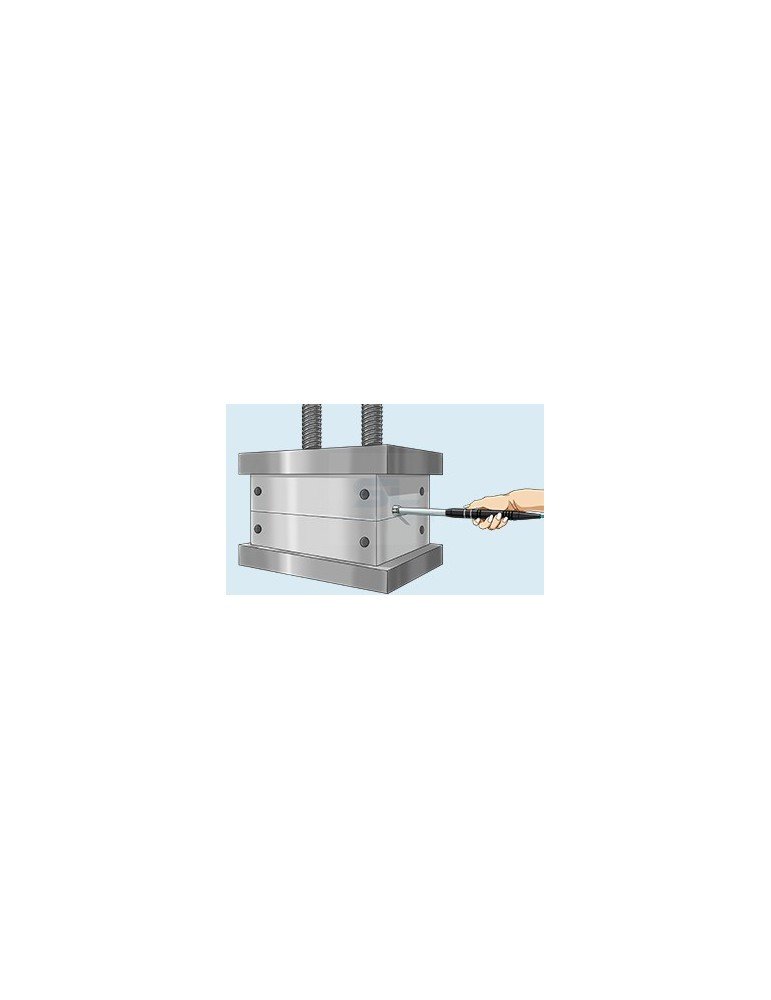

For routine surface checks, the important starting point is how the sensing element will contact the surface. A larger head requires more clear contact area, while a smaller head can suit a more confined measurement point. The selected guard construction determines the temperature rating.

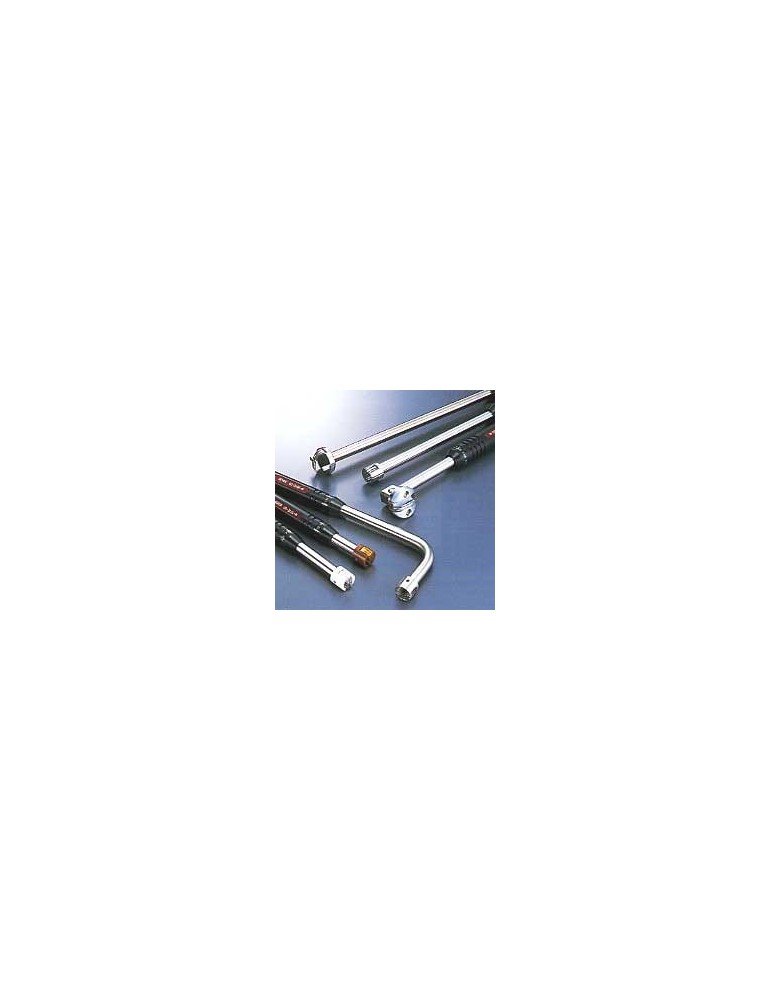

Anritsu A Series probes with different head sizes and shaft configurations.
The A Series uses a conventional fixed-head arrangement. The Anritsu AX Series flexible-head surface probe adds a contact-support mechanism with ±4° movement, helping the head maintain contact when the holding angle changes slightly.
| Selection point | A Series | AX Series |
|---|---|---|
| Head support | Fixed-head arrangement | Movable contact-support head; ±4° |
| Head diameters | 27 mm, 15 mm or 12 mm | 15 mm or 12 mm |
| Temperature options | -50 to 200, 300, 400, 500 or 800°C, depending on construction | -50 to 200, 300, 400, 500 or 800°C, depending on construction |
| Published response | 1.5 seconds for standard contact constructions; 3.5 seconds for coated contact-plate versions | Same published response times for comparable constructions |
| Tolerance | Depends on contact construction and temperature; see tables below | Same published tolerance as the corresponding standard or coated construction |
| Thermocouple | Type K or Type E | Type K or Type E |
| Selection guidance | Consider when the chosen geometry allows steady contact, or when a 27 mm head is required | Consider when slight changes in the operator’s holding angle make surface contact difficult to maintain |
AX is an alternative to compare, not an automatic replacement for every A Series configuration. Its contact-support mechanism can help reduce contact error, but does not give a tighter published sensor tolerance. Check head size, reach, clearance, temperature rating and connector before changing series.
| Head-size code | Model group | Diameter |
|---|---|---|
| 1 | A-100 Series | 27 mm |
| 2 | A-200 Series | 15 mm |
| 3 | A-300 Series | 12 mm |
| Guard code / family | Construction | Sensing-head range | 99% response |
|---|---|---|---|
| 1 / A-*1* | Fluororesin guard | -50 to 300°C | 1.5 s |
| 2 / A-*2* | Polyimide guard | -50 to 400°C | 1.5 s |
| 3 / A-*3* | Stainless steel guard | -50 to 500°C | 1.5 s |
| 4 / A-*4* | High-temperature stainless steel guard | -50 to 800°C | 1.5 s |
| 5 / A-*5* | Fluororesin guard with coated contact plate | -50 to 200°C | 3.5 s |
| 6 / A-*6* | Polyimide guard with coated contact plate | -50 to 300°C | 3.5 s |
| 7 / A-17* | Without guard; 27 mm head only | -50 to 500°C | 1.5 s |
An asterisk represents another model-code digit. Temperature limits apply to the sensing head in contact with the target; the grip, cable and plug have separate limits.
Use the complete ordering code to specify a compatible probe assembly.

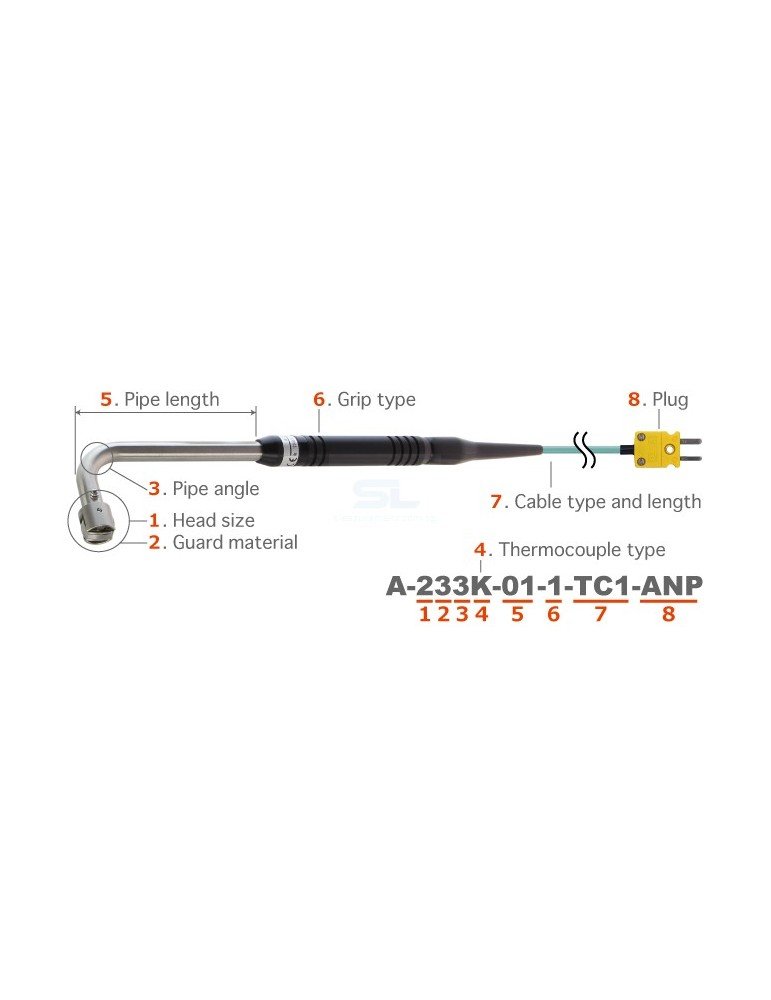

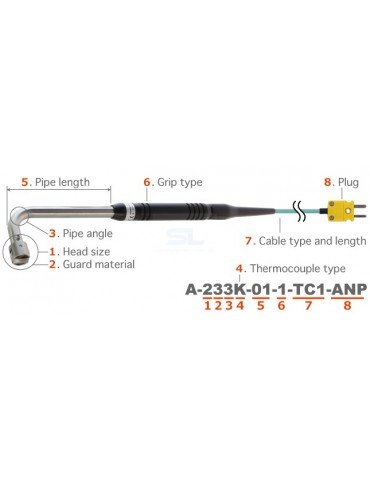

The ordering code identifies the head diameter, guard construction, shaft shape, thermocouple, shaft length, grip, cable and termination. For example, A-231K-01-1-TC1-ANP specifies a 15 mm head, stainless steel guard, straight shaft, Type K thermocouple, 100 mm shaft, standard grip, 1 metre TC cable and ANP miniature plug.
Shaft options include straight, 45° and several 90° or elbow arrangements. Length code 00 represents 30 mm and 01 represents 100 mm. Standard-grip code is 1; gripless code is 0. Confirm manufacturability of the complete combination, particularly short, angled, gripless and high-temperature assemblies.
| Probe | Type E model | Type K model | Configuration | Range |
|---|---|---|---|---|
A-231 |
A-231E-00-1-TC1-ANP | A-231K-00-1-TC1-ANP | 15 mm head; straight, 30 mm shaft; standard grip | -50 to 500°C |
A-231 |
A-231E-01-1-TC1-ANP | A-231K-01-1-TC1-ANP | 15 mm head; straight, 100 mm shaft; standard grip | -50 to 500°C |
A-231 |
A-231E-01-0-TC1-W | A-231K-01-0-TC1-W | 15 mm head; straight, 100 mm shaft; no grip or plug | -50 to 500°C |
A-233 |
A-233E-01-1-TC1-ANP | A-233K-01-1-TC1-ANP | 15 mm head; 90° shaft; standard grip | -50 to 500°C |
A-234 |
A-234E-00-1-TC1-ANP | A-234K-00-1-TC1-ANP | 15 mm head; elbow arrangement; standard grip | -50 to 500°C |
A-241 |
A-241E-01-1-TC1-ANP | A-241K-01-1-TC1-ANP | 15 mm head; high-temperature construction; straight shaft | -50 to 800°C |
A-331 |
A-331E-00-1-TC1-ANP | A-331K-00-1-TC1-ANP | 12 mm head; straight, 30 mm shaft; standard grip | -50 to 500°C |
The figures below apply within each model’s rated range. A dash indicates a temperature outside that family’s rating.
| Surface temperature | A-*1* | A-*2* | A-*3* | A-*4* | A-17* |
|---|---|---|---|---|---|
| -50°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 0°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 100°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 200°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 300°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| 400°C | — | ±3.0°C | ±3.0°C | ±3.0°C | ±3.0°C |
| 500°C | — | — | ±3.8°C | ±3.8°C | ±3.8°C |
| 600°C | — | — | — | ±9.0°C | — |
| 700°C | — | — | — | ±10.5°C | — |
| 800°C | — | — | — | ±16.0°C | — |
Intermediate temperatures: For surface temperature t in °C, use ±2.5°C from -50°C to below -40°C. From -40 to 500°C, use the greater of ±2.5°C or ±(0.0075 × |t|)°C. Above 500 to 700°C, use ±(0.015 × |t|)°C; above 700 to 800°C, use ±(0.02 × |t|)°C. Stay within the selected model’s range.
| Surface temperature | A-*5* | A-*6* |
|---|---|---|
| -50°C | ±2.5°C | ±2.5°C |
| 0°C | ±2.5°C | ±2.5°C |
| 100°C | ±2.5°C | ±2.5°C |
| 200°C | ±4.0°C | ±4.0°C |
| 300°C | — | ±6.0°C |
Intermediate temperatures: Use ±2.5°C from -50°C to below -40°C. From -40°C to the selected model’s upper limit, use the greater of ±2.5°C or ±(0.02 × |t|)°C.
| Item | Specification |
|---|---|
| Thermocouple | Type E or Type K |
| Shaft material | SUS316 stainless steel |
| Grip material | Polyacetal |
| Durability | More than 75,000 contacts under the manufacturer’s test conditions |
| Repair | Repairable, subject to assessment |
Tolerance and response are specified on stationary, flat, smooth metal surfaces. Response time means the time to reach 99% of the true value. Durability testing uses a 300°C surface, or the model’s upper limit where lower, while maintaining tolerance.
Actual readings also depend on contact, surface condition and the connected instrument. Select a thermocouple type and plug that match the thermometer input.
The references below retain the listed A-100, A-200 and A-300 configurations. These are abbreviated references: cable and connector suffixes must be specified to form a complete ordering code. Confirm availability and manufacturability before ordering.
| Model group | Listed Type K references |
|---|---|
| A-111K | A-111K-00-1 A-111K-01-1 A-111K-02-1 A-111K-03-1 A-111K-04-1 A-111K-05-1 A-111K-10-1 |
| A-112K | A-112K-01-1 A-112K-02-1 A-112K-03-1 A-112K-04-1 A-112K-05-1 A-112K-10-1 |
| A-113K | A-113K-01-1 A-113K-02-1 A-113K-03-1 A-113K-04-1 A-113K-05-1 A-113K-10-1 |
| A-114K | A-114K-00-1 A-114K-01-1 A-114K-02-1 A-114K-03-1 A-114K-04-1 A-114K-05-1 A-114K-10-1 |
| A-115K | A-115K-01-1 A-115K-02-1 A-115K-03-1 A-115K-04-1 A-115K-05-1 A-115K-10-1 |
| A-116K | A-116K-01-1 A-116K-02-1 A-116K-03-1 A-116K-04-1 A-116K-05-1 A-116K-10-1 |
| A-117K | A-117K-00-1 A-117K-01-1 A-117K-02-1 A-117K-03-1 A-117K-04-1 A-117K-05-1 A-117K-10-1 |
| A-121K | A-121K-00-1 A-121K-01-1 A-121K-02-1 A-121K-03-1 A-121K-04-1 A-121K-05-1 A-121K-10-1 |
| A-122K | A-122K-01-1 A-122K-02-1 A-122K-03-1 A-122K-04-1 A-122K-05-1 A-122K-10-1 |
| A-123K | A-123K-01-1 A-123K-02-1 A-123K-03-1 A-123K-04-1 A-123K-05-1 A-123K-10-1 |
| A-124K | A-124K-00-1 A-124K-01-1 A-124K-02-1 A-124K-03-1 A-124K-04-1 A-124K-05-1 A-124K-10-1 |
| A-125K | A-125K-01-1 A-125K-02-1 A-125K-03-1 A-125K-04-1 A-125K-05-1 A-125K-10-1 |
| A-126K | A-126K-01-1 A-126K-02-1 A-126K-03-1 A-126K-04-1 A-126K-05-1 A-126K-10-1 |
| A-127K | A-127K-00-1 A-127K-01-1 A-127K-02-1 A-127K-03-1 A-127K-04-1 A-127K-05-1 A-127K-10-1 |
| A-131K | A-131K-00-1 A-131K-01-1 A-131K-02-1 A-131K-03-1 A-131K-04-1 A-131K-05-1 A-131K-10-1 |
| A-132K | A-132K-01-1 A-132K-02-1 A-132K-03-1 A-132K-04-1 A-132K-05-1 A-132K-10-1 |
| A-133K | A-133K-01-1 A-133K-02-1 A-133K-03-1 A-133K-04-1 A-133K-05-1 A-133K-10-1 |
| A-134K | A-134K-00-1 A-134K-01-1 A-134K-02-1 A-134K-03-1 A-134K-04-1 A-134K-05-1 A-134K-10-1 |
| A-135K | A-135K-01-1 A-135K-02-1 A-135K-03-1 A-135K-04-1 A-135K-05-1 A-135K-10-1 |
| A-136K | A-136K-01-1 A-136K-02-1 A-136K-03-1 A-136K-04-1 A-136K-05-1 A-136K-10-1 |
| A-137K | A-137K-00-1 A-137K-01-1 A-137K-02-1 A-137K-03-1 A-137K-04-1 A-137K-05-1 A-137K-10-1 |
| A-141K | A-141K-01-1 A-141K-02-1 A-141K-03-1 A-141K-04-1 A-141K-05-1 A-141K-10-1 A-141K-20-1 |
| A-142K | A-142K-01-1 A-142K-02-1 A-142K-03-1 A-142K-04-1 A-142K-05-1 A-142K-10-1 |
| A-143K | A-143K-01-1 A-143K-02-1 A-143K-03-1 A-143K-04-1 A-143K-05-1 A-143K-10-1 |
| A-144K | A-144K-01-1 A-144K-02-1 A-144K-03-1 A-144K-04-1 A-144K-05-1 A-144K-10-1 A-144K-20-1 |
| A-145K | A-145K-01-1 A-145K-02-1 A-145K-03-1 A-145K-04-1 A-145K-05-1 A-145K-10-1 |
| A-146K | A-146K-01-1 A-146K-02-1 A-146K-03-1 A-146K-04-1 A-146K-05-1 A-146K-10-1 |
| A-147K | A-147K-01-1 A-147K-02-1 A-147K-03-1 A-147K-04-1 A-147K-05-1 A-147K-10-1 A-147K-20-1 |
| A-151K | A-151K-00-1 A-151K-01-1 A-151K-02-1 A-151K-03-1 A-151K-04-1 A-151K-05-1 A-151K-10-1 |
| A-152K | A-152K-01-1 A-152K-02-1 A-152K-03-1 A-152K-04-1 A-152K-05-1 A-152K-10-1 |
| A-153K | A-153K-01-1 A-153K-02-1 A-153K-03-1 A-153K-04-1 A-153K-05-1 A-153K-10-1 |
| A-154K | A-154K-00-1 A-154K-01-1 A-154K-02-1 A-154K-03-1 A-154K-04-1 A-154K-05-1 A-154K-10-1 |
| A-155K | A-155K-01-1 A-155K-02-1 A-155K-03-1 A-155K-04-1 A-155K-05-1 A-155K-10-1 |
| A-156K | A-156K-01-1 A-156K-02-1 A-156K-03-1 A-156K-04-1 A-156K-05-1 A-156K-10-1 |
| A-157K | A-157K-00-1 A-157K-01-1 A-157K-02-1 A-157K-03-1 A-157K-04-1 A-157K-05-1 A-157K-10-1 |
| A-161K | A-161K-00-1 A-161K-01-1 A-161K-02-1 A-161K-03-1 A-161K-04-1 A-161K-05-1 A-161K-10-1 |
| A-162K | A-162K-01-1 A-162K-02-1 A-162K-03-1 A-162K-04-1 A-162K-05-1 A-162K-10-1 |
| A-163K | A-163K-01-1 A-163K-02-1 A-163K-03-1 A-163K-04-1 A-163K-05-1 A-163K-10-1 |
| A-164K | A-164K-00-1 A-164K-01-1 A-164K-02-1 A-164K-03-1 A-164K-04-1 A-164K-05-1 A-164K-10-1 |
| A-165K | A-165K-01-1 A-165K-02-1 A-165K-03-1 A-165K-04-1 A-165K-05-1 A-165K-10-1 |
| A-166K | A-166K-01-1 A-166K-02-1 A-166K-03-1 A-166K-04-1 A-166K-05-1 A-166K-10-1 |
| A-167K | A-167K-00-1 A-167K-01-1 A-167K-02-1 A-167K-03-1 A-167K-04-1 A-167K-05-1 A-167K-10-1 |
| A-171K | A-171K-00-1 A-171K-01-1 A-171K-02-1 A-171K-03-1 A-171K-04-1 A-171K-05-1 A-171K-10-1 |
| A-172K | A-172K-01-1 A-172K-02-1 A-172K-03-1 A-172K-04-1 A-172K-05-1 A-172K-10-1 |
| A-173K | A-173K-01-1 A-173K-02-1 A-173K-03-1 A-173K-04-1 A-173K-05-1 A-173K-10-1 |
| A-174K | A-174K-00-1 A-174K-01-1 A-174K-02-1 A-174K-03-1 A-174K-04-1 A-174K-05-1 A-174K-10-1 |
| A-175K | A-175K-01-1 A-175K-02-1 A-175K-03-1 A-175K-04-1 A-175K-05-1 A-175K-10-1 |
| A-176K | A-176K-01-1 A-176K-02-1 A-176K-03-1 A-176K-04-1 A-176K-05-1 A-176K-10-1 |
| A-177K | A-177K-00-1 A-177K-01-1 A-177K-02-1 A-177K-03-1 A-177K-04-1 A-177K-05-1 A-177K-10-1 |
| Model group | Listed Type K references |
|---|---|
| A-211K | A-211K-00-1 A-211K-01-1 A-211K-02-1 A-211K-03-1 A-211K-04-1 A-211K-05-1 |
| A-212K | A-212K-01-1 A-212K-02-1 A-212K-03-1 A-212K-04-1 A-212K-05-1 |
| A-213K | A-213K-01-1 A-213K-02-1 A-213K-03-1 A-213K-04-1 A-213K-05-1 |
| A-214K | A-214K-00-1 A-214K-01-1 A-214K-02-1 A-214K-03-1 A-214K-04-1 A-214K-05-1 |
| A-215K | A-215K-01-1 A-215K-02-1 A-215K-03-1 A-215K-04-1 A-215K-05-1 |
| A-216K | A-216K-01-1 A-216K-02-1 A-216K-03-1 A-216K-04-1 A-216K-05-1 |
| A-217K | A-217K-00-1 A-217K-01-1 A-217K-02-1 A-217K-03-1 A-217K-04-1 A-217K-05-1 |
| A-221K | A-221K-00-1 A-221K-01-1 A-221K-02-1 A-221K-03-1 A-221K-04-1 A-221K-05-1 |
| A-222K | A-222K-01-1 A-222K-02-1 A-222K-03-1 A-222K-04-1 A-222K-05-1 |
| A-223K | A-223K-01-1 A-223K-02-1 A-223K-03-1 A-223K-04-1 A-223K-05-1 |
| A-224K | A-224K-00-1 A-224K-01-1 A-224K-02-1 A-224K-03-1 A-224K-04-1 A-224K-05-1 |
| A-225K | A-225K-01-1 A-225K-02-1 A-225K-03-1 A-225K-04-1 A-225K-05-1 |
| A-226K | A-226K-01-1 A-226K-02-1 A-226K-03-1 A-226K-04-1 A-226K-05-1 |
| A-227K | A-227K-00-1 A-227K-01-1 A-227K-02-1 A-227K-03-1 A-227K-04-1 A-227K-05-1 |
| A-231K | A-231K-00-1 A-231K-01-1 A-231K-02-1 A-231K-03-1 A-231K-04-1 A-231K-05-1 |
| A-232K | A-232K-01-1 A-232K-02-1 A-232K-03-1 A-232K-04-1 A-232K-05-1 |
| A-233K | A-233K-01-1 A-233K-02-1 A-233K-03-1 A-233K-04-1 A-233K-05-1 |
| A-234K | A-234K-00-1 A-234K-01-1 A-234K-02-1 A-234K-03-1 A-234K-04-1 A-234K-05-1 |
| A-235K | A-235K-01-1 A-235K-02-1 A-235K-03-1 A-235K-04-1 A-235K-05-1 |
| A-236K | A-236K-01-1 A-236K-02-1 A-236K-03-1 A-236K-04-1 A-236K-05-1 |
| A-237K | A-237K-00-1 A-237K-01-1 A-237K-02-1 A-237K-03-1 A-237K-04-1 A-237K-05-1 |
| A-241K | A-241K-01-1 A-241K-02-1 A-241K-03-1 A-241K-04-1 A-241K-05-1 |
| A-242K | A-242K-01-1 A-242K-02-1 A-242K-03-1 A-242K-04-1 A-242K-05-1 |
| A-243K | A-243K-01-1 A-243K-02-1 A-243K-03-1 A-243K-04-1 A-243K-05-1 |
| A-244K | A-244K-01-1 A-244K-02-1 A-244K-03-1 A-244K-04-1 A-244K-05-1 |
| A-245K | A-245K-01-1 A-245K-02-1 A-245K-03-1 A-245K-04-1 A-245K-05-1 |
| A-246K | A-246K-01-1 A-246K-02-1 A-246K-03-1 A-246K-04-1 A-246K-05-1 |
| A-247K | A-247K-01-1 A-247K-02-1 A-247K-03-1 A-247K-04-1 A-247K-05-1 |
| A-251K | A-251K-00-1 A-251K-01-1 A-251K-02-1 A-251K-03-1 A-251K-04-1 A-251K-05-1 |
| A-252K | A-252K-01-1 A-252K-02-1 A-252K-03-1 A-252K-04-1 A-252K-05-1 |
| A-253K | A-253K-01-1 A-253K-02-1 A-253K-03-1 A-253K-04-1 A-253K-05-1 |
| A-254K | A-254K-00-1 A-254K-01-1 A-254K-02-1 A-254K-03-1 A-254K-04-1 A-254K-05-1 |
| A-255K | A-255K-01-1 A-255K-02-1 A-255K-03-1 A-255K-04-1 A-255K-05-1 |
| A-256K | A-256K-01-1 A-256K-02-1 A-256K-03-1 A-256K-04-1 A-256K-05-1 |
| A-257K | A-257K-00-1 A-257K-01-1 A-257K-02-1 A-257K-03-1 A-257K-04-1 A-257K-05-1 |
| A-261K | A-261K-00-1 A-261K-01-1 A-261K-02-1 A-261K-03-1 A-261K-04-1 A-261K-05-1 |
| A-262K | A-262K-01-1 A-262K-02-1 A-262K-03-1 A-262K-04-1 A-262K-05-1 |
| A-263K | A-263K-01-1 A-263K-02-1 A-263K-03-1 A-263K-04-1 A-263K-05-1 |
| A-264K | A-264K-00-1 A-264K-01-1 A-264K-02-1 A-264K-03-1 A-264K-04-1 A-264K-05-1 |
| A-265K | A-265K-01-1 A-265K-02-1 A-265K-03-1 A-265K-04-1 A-265K-05-1 |
| A-266K | A-266K-01-1 A-266K-02-1 A-266K-03-1 A-266K-04-1 A-266K-05-1 |
| A-267K | A-267K-00-1 A-267K-01-1 A-267K-02-1 A-267K-03-1 A-267K-04-1 A-267K-05-1 |
| Model group | Listed Type K references |
|---|---|
| A-311K | A-311K-00-1 A-311K-01-1 A-311K-02-1 A-311K-03-1 A-311K-04-1 A-311K-05-1 |
| A-312K | A-312K-01-1 A-312K-02-1 A-312K-03-1 A-312K-04-1 A-312K-05-1 |
| A-313K | A-313K-01-1 A-313K-02-1 A-313K-03-1 A-313K-04-1 A-313K-05-1 |
| A-314K | A-314K-00-1 A-314K-01-1 A-314K-02-1 A-314K-03-1 A-314K-04-1 A-314K-05-1 |
| A-315K | A-315K-01-1 A-315K-02-1 A-315K-03-1 A-315K-04-1 A-315K-05-1 |
| A-316K | A-316K-01-1 A-316K-02-1 A-316K-03-1 A-316K-04-1 A-316K-05-1 |
| A-317K | A-317K-00-1 A-317K-01-1 A-317K-02-1 A-317K-03-1 A-317K-04-1 A-317K-05-1 |
| A-321K | A-321K-00-1 A-321K-01-1 A-321K-02-1 A-321K-03-1 A-321K-04-1 A-321K-05-1 |
| A-322K | A-322K-01-1 A-322K-02-1 A-322K-03-1 A-322K-04-1 A-322K-05-1 |
| A-323K | A-323K-01-1 A-323K-02-1 A-323K-03-1 A-323K-04-1 A-323K-05-1 |
| A-324K | A-324K-00-1 A-324K-01-1 A-324K-02-1 A-324K-03-1 A-324K-04-1 A-324K-05-1 |
| A-325K | A-325K-01-1 A-325K-02-1 A-325K-03-1 A-325K-04-1 A-325K-05-1 |
| A-326K | A-326K-01-1 A-326K-02-1 A-326K-03-1 A-326K-04-1 A-326K-05-1 |
| A-327K | A-327K-00-1 A-327K-01-1 A-327K-02-1 A-327K-03-1 A-327K-04-1 A-327K-05-1 |
| A-331K | A-331K-00-1 A-331K-01-1 A-331K-02-1 A-331K-03-1 A-331K-04-1 A-331K-05-1 |
| A-332K | A-332K-01-1 A-332K-02-1 A-332K-03-1 A-332K-04-1 A-332K-05-1 |
| A-333K | A-333K-01-1 A-333K-02-1 A-333K-03-1 A-333K-04-1 A-333K-05-1 |
| A-334K | A-334K-00-1 A-334K-01-1 A-334K-02-1 A-334K-03-1 A-334K-04-1 A-334K-05-1 |
| A-335K | A-335K-01-1 A-335K-02-1 A-335K-03-1 A-335K-04-1 A-335K-05-1 |
| A-336K | A-336K-01-1 A-336K-02-1 A-336K-03-1 A-336K-04-1 A-336K-05-1 |
| A-337K | A-337K-00-1 A-337K-01-1 A-337K-02-1 A-337K-03-1 A-337K-04-1 A-337K-05-1 |
| A-341K | A-341K-01-1 A-341K-02-1 A-341K-03-1 A-341K-04-1 A-341K-05-1 |
| A-342K | A-342K-01-1 A-342K-02-1 A-342K-03-1 A-342K-04-1 A-342K-05-1 |
| A-343K | A-343K-01-1 A-343K-02-1 A-343K-03-1 A-343K-04-1 A-343K-05-1 |
| A-344K | A-344K-01-1 A-344K-02-1 A-344K-03-1 A-344K-04-1 A-344K-05-1 |
| A-345K | A-345K-01-1 A-345K-02-1 A-345K-03-1 A-345K-04-1 A-345K-05-1 |
| A-346K | A-346K-01-1 A-346K-02-1 A-346K-03-1 A-346K-04-1 A-346K-05-1 |
| A-347K | A-347K-01-1 A-347K-02-1 A-347K-03-1 A-347K-04-1 A-347K-05-1 |
| A-351K | A-351K-00-1 A-351K-01-1 A-351K-02-1 A-351K-03-1 A-351K-04-1 A-351K-05-1 |
| A-352K | A-352K-01-1 A-352K-02-1 A-352K-03-1 A-352K-04-1 A-352K-05-1 |
| A-353K | A-353K-01-1 A-353K-02-1 A-353K-03-1 A-353K-04-1 A-353K-05-1 |
| A-354K | A-354K-00-1 A-354K-01-1 A-354K-02-1 A-354K-03-1 A-354K-04-1 A-354K-05-1 |
| A-355K | A-355K-01-1 A-355K-02-1 A-355K-03-1 A-355K-04-1 A-355K-05-1 |
| A-356K | A-356K-01-1 A-356K-02-1 A-356K-03-1 A-356K-04-1 A-356K-05-1 |
| A-357K | A-357K-00-1 A-357K-01-1 A-357K-02-1 A-357K-03-1 A-357K-04-1 A-357K-05-1 |
| A-361K | A-361K-00-1 A-361K-01-1 A-361K-02-1 A-361K-03-1 A-361K-04-1 A-361K-05-1 |
| A-362K | A-362K-01-1 A-362K-02-1 A-362K-03-1 A-362K-04-1 A-362K-05-1 |
| A-363K | A-363K-01-1 A-363K-02-1 A-363K-03-1 A-363K-04-1 A-363K-05-1 |
| A-364K | A-364K-00-1 A-364K-01-1 A-364K-02-1 A-364K-03-1 A-364K-04-1 A-364K-05-1 |
| A-365K | A-365K-01-1 A-365K-02-1 A-365K-03-1 A-365K-04-1 A-365K-05-1 |
| A-366K | A-366K-01-1 A-366K-02-1 A-366K-03-1 A-366K-04-1 A-366K-05-1 |
| A-367K | A-367K-00-1 A-367K-01-1 A-367K-02-1 A-367K-03-1 A-367K-04-1 A-367K-05-1 |
If an A Series probe already reaches the target and produces stable contact, identify its full code before changing the arrangement. If keeping the head flat is difficult, compare the AX Series contact-support probe and check that its head and shaft can fit the same space.
Contact us for pricing and availability. Include the required A Series model, surface material and dimensions, operating temperature, access clearance, shaft length, thermocouple type and thermometer model. For a replacement, send the complete existing code and photographs of the head and connector.
|
Download |
|
Download |
Measure stationary surface temperatures with Anritsu A Series contact probes. Select the head size, guard and shaft arrangement to suit the measurement point and operating temperature.
Need help maintaining surface contact as the holding angle changes? Compare the Anritsu AX Series flexible-head surface probe.
The Anritsu WE Series measures stationary surface temperatures using a self-supporting probe placed on the measurement target. Select the probe configuration to suit the surface, temperature and connected thermometer.
Measure temperature inside semi-solid materials with Anritsu BT Series needle temperature probes. Choose the needle diameter, length and tip shape to suit the measurement depth and material being tested.
Measure small stationary surfaces with Anritsu CS Series micro surface temperature probes. Choose the sensing head, shaft arrangement and connector to suit the measurement point and your thermometer.
Measure the internal temperature of liquids and semi-solid materials with Anritsu BS Series temperature probes. Choose a fine sleeve-type probe or a grip-type assembly according to the measurement depth, access and handling requirements.
Anritsu MW series probes are ideal for measuring the temperatures at the surface of moving wires. Specific components may be combined to customize products for the needs of a customer's specific application.
Anritsu UX Series flexible-head temperature probes for measuring moving and rotating surfaces with stable contact during measurement.
Anritsu HHT Series high-durability surface temperature probes for direct contact measurement of hot metal and industrial surfaces.
Anritsu CR Series temperature probes for checking the tip temperature of soldering irons.
Anritsu BC Series needle probes for measuring the internal temperature of food, liquids and semi-solid materials.
Anritsu BR Series flexible low-temperature probes for measuring air, liquids and semi-solid materials in cold and controlled environments.
Anritsu SX Series high-accuracy surface temperature probes with a flexible contact-support head for stable measurement on stationary surfaces.
Anritsu AX Series surface temperature probes with a flexible contact-support head for stable measurement on stationary surfaces.
Measure moving and rotating surface temperatures with Anritsu U and UX Series contact probes. Select the head, guard or wheel arrangement to suit the surface profile, temperature and operating conditions.
Anritsu SF Series extra-fine flexible temperature probes for internal measurement in liquids, materials and confined locations.
Anritsu ST and STN Series flexible flat-leaf temperature probes for surface attachment, narrow spaces and temperature distribution measurement.
Measure temperature at attached sensing points with Anritsu ST and STN flat leaf temperature probes. Their flexible tape construction suits surface attachment and measurement locations where a conventional rigid probe is difficult to position.
