Measure moving and rotating surface temperatures with Anritsu U and UX Series contact probes. Select the head, guard or wheel arrangement to suit the surface profile, temperature and operating conditions.

  • U series: Moving-surface probes with multiple head and mounting configurations.
  • UX series: Contact-support head that helps maintain contact during measurement.
  • Thermocouple: Type K or Type E.
  • Temperature: -50°C to 200°C or 250°C, depending on construction.
Questions about this product?
Email enquiry WhatsApp us

Check temperatures on moving material and rotating components with Anritsu U and UX Series surface temperature probes. These contact probes use guard or wheel arrangements selected to suit the measurement surface.

Start with the surface material, diameter or curvature, temperature and linear speed. Then select the head size, contact construction and mounting arrangement needed to maintain suitable contact.

Anritsu U Series moving and rotating surface temperature probes

Anritsu U Series probes for moving and rotating surface measurements.

U and UX: compare the constructions

FeatureU seriesUX series
Measurement Contact measurement of moving and rotating surfaces. Contact measurement with a movable contact-support head.
Head movement Conventional U construction; select the required geometry. ±8° along the longer direction and ±4° along the shorter direction.
Thermocouple Type E or Type K. Type E or Type K.
Head options Fluororesin guard, bearing wheel or fluororesin wheel. Fluororesin guard, bearing wheel or fluororesin wheel.
Configuration choice Includes additional elbow, direct-head and no-grip arrangements, depending on model. Select from the UX-specific pipe angles and standard-grip configurations.

UX contact support helps the sensing head follow the target surface. Confirm the complete configuration rather than changing a U model prefix to UX and assuming the remaining ordering code is interchangeable.

Temperature range by contact construction

Construction codeGuard or wheelContact sectionTemperature range
1 Fluororesin guard Polyimide coated -50 to 250°C
2 Bearing wheel Polyimide coated -50 to 200°C
3 Fluororesin wheel Polyimide coated -50 to 250°C
4 Fluororesin guard Fluororesin coated -50 to 200°C
5 Bearing wheel Fluororesin coated -50 to 200°C
6 Fluororesin wheel Fluororesin coated -50 to 200°C
7 Fluororesin guard Uncoated -50 to 250°C
8 Bearing wheel Uncoated -50 to 200°C
9 Fluororesin wheel Uncoated -50 to 250°C

The construction code is the middle digit of the three-digit head designation, for example the second digit in U-111 or UX-221. Temperature limits apply to the sensing head, not automatically to the grip, cable or connector.

Head size and nominal response

Head familyGuard-head dimensionsWheel-head dimensionsNominal response
U-1 / UX-1 25 × 32 mm 37 × 36 mm 2 seconds
U-2 / UX-2 29 × 60 mm 40 × 66 mm 3.5 seconds

Existing U model configurations

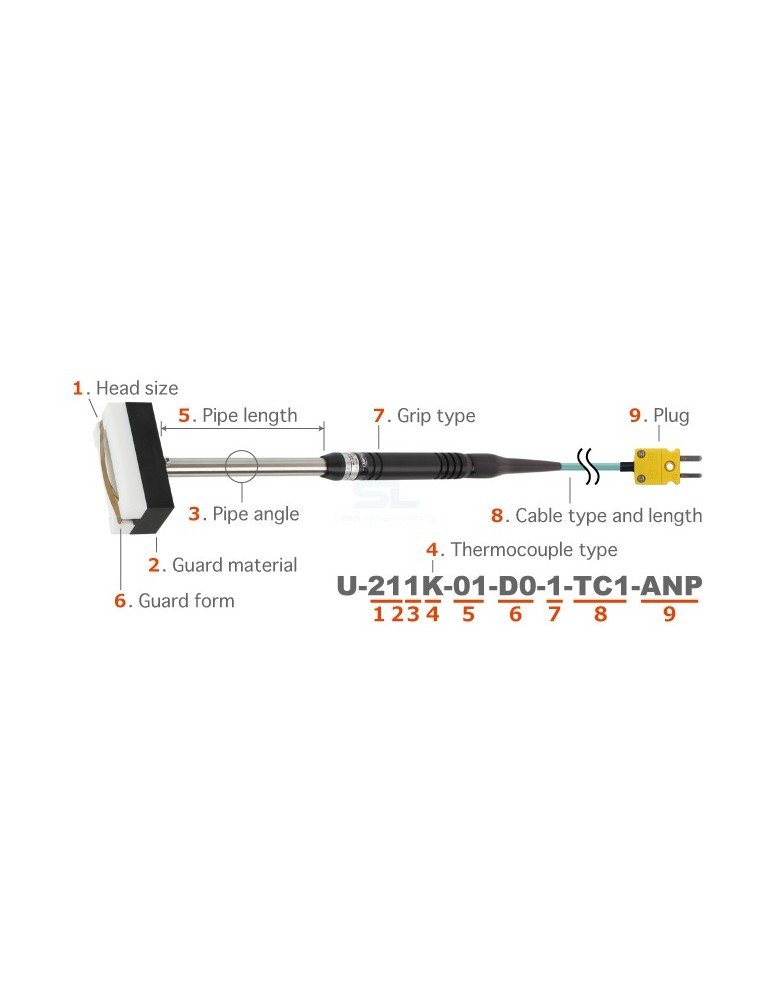

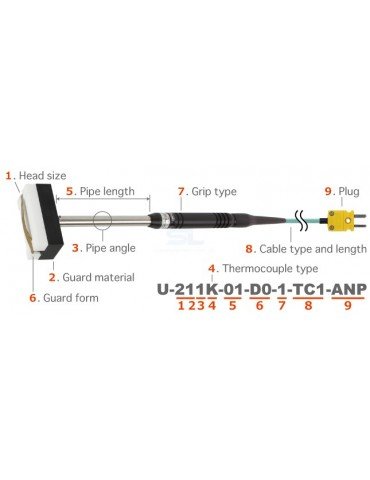

Anritsu U surface temperature probe ordering guide

U Series configuration guide. Use the separate UX ordering specification when selecting a contact-support model.

ProbeType E modelType K model
U-111 Anritsu U-111 surface temperature probe U-111E-01-D0-1-TC1-ANP U-111K-01-D0-1-TC1-ANP
U-211 Anritsu U-211 surface temperature probe U-211E-01-D0-1-TC1-ANP U-211K-01-D0-1-TC1-ANP
U-114 Anritsu U-114 surface temperature probe U-114E-01-D0-1-TC1-ANP U-114K-01-D0-1-TC1-ANP

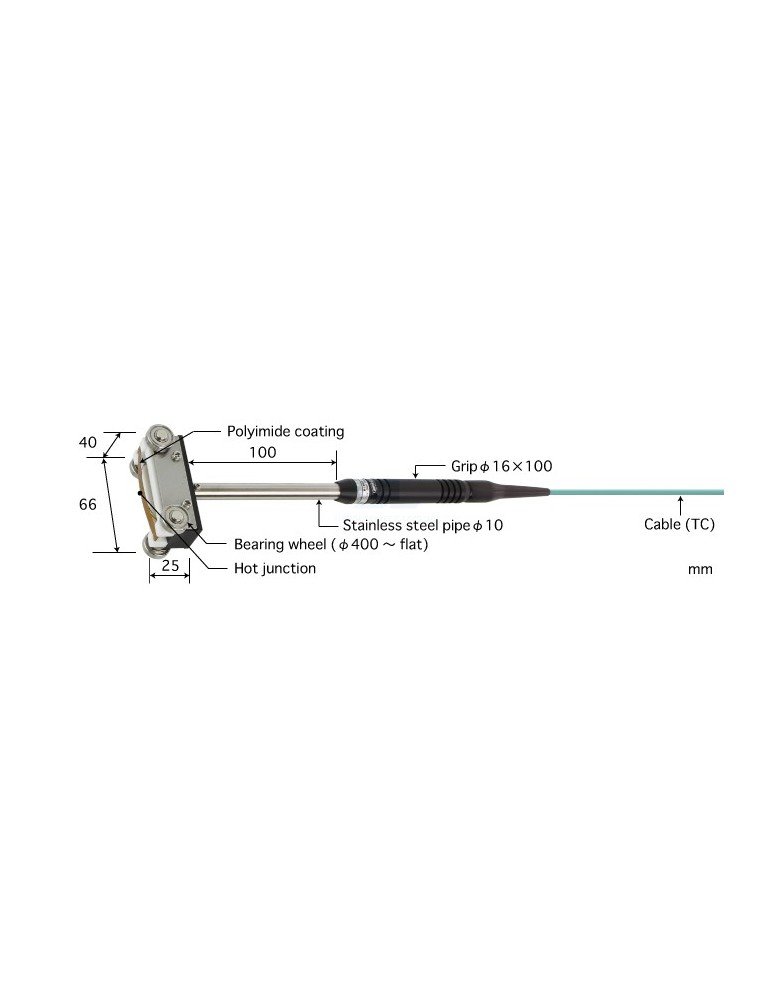

U-221 Anritsu U-221 bearing-wheel surface temperature probe U-221E-01-D0-1-TC1-ANP U-221K-01-D0-1-TC1-ANP
U-118 Anritsu U-118 direct-head surface temperature probe U-118E-01-D0-1-TC1-ANP U-118K-01-D0-1-TC1-ANP
U-211 without grip Anritsu U-211 surface temperature probe without grip U-211E-01-D0-0-TC1-W U-211K-01-D0-0-TC1-W

UX contact-support model references

Type E modelType K modelTemperature rangeResponse
UX-111E-01-D0-1-TC1-ANP UX-111K-01-D0-1-TC1-ANP -50 to 250°C 2 s
UX-211E-01-D0-1-TC1-ANP UX-211K-01-D0-1-TC1-ANP -50 to 250°C 3.5 s
UX-113E-02-D0-1-TC1-ANP UX-113K-02-D0-1-TC1-ANP -50 to 250°C 2 s
UX-221E-00-D0-1-TC1-ANP UX-221K-00-D0-1-TC1-ANP -50 to 200°C 3.5 s

U guard models: D0 reference list

The following tables preserve the U model references previously listed on this page. These references omit the final cable and connector suffixes; confirm the complete order code and combination availability.

U-100 seriesU-200 series
U-111K-00-D0-1
U-111K-01-D0-1
U-111K-02-D0-1
U-111K-03-D0-1
U-111K-04-D0-1
U-111K-05-D0-1		 U-211K-00-D0-1
U-211K-01-D0-1
U-211K-02-D0-1
U-211K-03-D0-1
U-211K-04-D0-1
U-211K-05-D0-1
U-112K-01-D0-1
U-112K-02-D0-1
U-112K-03-D0-1
U-112K-04-D0-1
U-112K-05-D0-1		 U-212K-01-D0-1
U-212K-02-D0-1
U-212K-03-D0-1
U-212K-04-D0-1
U-212K-05-D0-1
U-113K-01-D0-1
U-113K-02-D0-1
U-113K-03-D0-1
U-113K-04-D0-1
U-113K-05-D0-1		 U-213K-01-D0-1
U-213K-02-D0-1
U-213K-03-D0-1
U-213K-04-D0-1
U-213K-05-D0-1
U-114K-00-D0-1
U-114K-01-D0-1
U-114K-02-D0-1
U-114K-03-D0-1
U-114K-04-D0-1
U-114K-05-D0-1		 U-214K-00-D0-1
U-214K-01-D0-1
U-214K-02-D0-1
U-214K-03-D0-1
U-214K-04-D0-1
U-214K-05-D0-1
U-115K-01-D0-1
U-115K-02-D0-1
U-115K-03-D0-1
U-115K-04-D0-1
U-115K-05-D0-1		 U-215K-01-D0-1
U-215K-02-D0-1
U-215K-03-D0-1
U-215K-04-D0-1
U-215K-05-D0-1
U-116K-01-D0-1
U-116K-02-D0-1
U-116K-03-D0-1
U-116K-04-D0-1
U-116K-05-D0-1		 U-216K-01-D0-1
U-216K-02-D0-1
U-216K-03-D0-1
U-216K-04-D0-1
U-216K-05-D0-1
U-117K-00-D0-1
U-117K-01-D0-1
U-117K-02-D0-1
U-117K-03-D0-1
U-117K-04-D0-1
U-117K-05-D0-1		 U-217K-00-D0-1
U-217K-01-D0-1
U-217K-02-D0-1
U-217K-03-D0-1
U-217K-04-D0-1
U-217K-05-D0-1
U-118K-00-D0-1
U-118K-01-D0-1
U-118K-02-D0-1
U-118K-03-D0-1
U-118K-04-D0-1
U-118K-05-D0-1		 U-218K-00-D0-1
U-218K-01-D0-1
U-218K-02-D0-1
U-218K-03-D0-1
U-218K-04-D0-1
U-218K-05-D0-1
U-119K-00-D0-1
U-119K-01-D0-1
U-119K-02-D0-1
U-119K-03-D0-1
U-119K-04-D0-1
U-119K-05-D0-1		 U-219K-00-D0-1
U-219K-01-D0-1
U-219K-02-D0-1
U-219K-03-D0-1
U-219K-04-D0-1
U-219K-05-D0-1

U guard models: curved-surface references

D* below is the original placeholder for the applicable curved-surface guard code. It is not a complete ordering suffix. Confirm the roller diameter and compatible D1, D2, D3 or D4 arrangement.

U-100 seriesU-200 series
U-111K-00-D*-1
U-111K-01-D*-1
U-111K-02-D*-1
U-111K-03-D*-1
U-111K-04-D*-1
U-111K-05-D*-1		 U-211K-00-D*-1
U-211K-01-D*-1
U-211K-02-D*-1
U-211K-03-D*-1
U-211K-04-D*-1
U-211K-05-D*-1
U-112K-01-D*-1
U-112K-02-D*-1
U-112K-03-D*-1
U-112K-04-D*-1
U-112K-05-D*-1		 U-212K-01-D*-1
U-212K-02-D*-1
U-212K-03-D*-1
U-212K-04-D*-1
U-212K-05-D*-1
U-113K-01-D*-1
U-113K-02-D*-1
U-113K-03-D*-1
U-113K-04-D*-1
U-113K-05-D*-1		 U-213K-01-D*-1
U-213K-02-D*-1
U-213K-03-D*-1
U-213K-04-D*-1
U-213K-05-D*-1
U-114K-00-D*-1
U-114K-01-D*-1
U-114K-02-D*-1
U-114K-03-D*-1
U-114K-04-D*-1
U-114K-05-D*-1		 U-214K-00-D*-1
U-214K-01-D*-1
U-214K-02-D*-1
U-214K-03-D*-1
U-214K-04-D*-1
U-214K-05-D*-1
U-115K-01-D*-1
U-115K-02-D*-1
U-115K-03-D*-1
U-115K-04-D*-1
U-115K-05-D*-1		 U-215K-01-D*-1
U-215K-02-D*-1
U-215K-03-D*-1
U-215K-04-D*-1
U-215K-05-D*-1
U-116K-01-D*-1
U-116K-02-D*-1
U-116K-03-D*-1
U-116K-04-D*-1
U-116K-05-D*-1		 U-216K-01-D*-1
U-216K-02-D*-1
U-216K-03-D*-1
U-216K-04-D*-1
U-216K-05-D*-1
U-117K-00-D*-1
U-117K-01-D*-1
U-117K-02-D*-1
U-117K-03-D*-1
U-117K-04-D*-1
U-117K-05-D*-1		 U-217K-00-D*-1
U-217K-01-D*-1
U-217K-02-D*-1
U-217K-03-D*-1
U-217K-04-D*-1
U-217K-05-D*-1
U-118K-00-D*-1
U-118K-01-D*-1
U-118K-02-D*-1
U-118K-03-D*-1
U-118K-04-D*-1
U-118K-05-D*-1		 U-218K-00-D*-1
U-218K-01-D*-1
U-218K-02-D*-1
U-218K-03-D*-1
U-218K-04-D*-1
U-218K-05-D*-1
U-119K-00-D*-1
U-119K-01-D*-1
U-119K-02-D*-1
U-119K-03-D*-1
U-119K-04-D*-1
U-119K-05-D*-1		 U-219K-00-D*-1
U-219K-01-D*-1
U-219K-02-D*-1
U-219K-03-D*-1
U-219K-04-D*-1
U-219K-05-D*-1

U bearing-wheel models: D0 references

U-100 seriesU-200 series
U-121K-00-D0-1
U-121K-01-D0-1
U-121K-02-D0-1
U-121K-03-D0-1
U-121K-04-D0-1
U-121K-05-D0-1		 U-221K-00-D0-1
U-221K-01-D0-1
U-221K-02-D0-1
U-221K-03-D0-1
U-221K-04-D0-1
U-221K-05-D0-1
U-122K-01-D0-1
U-122K-02-D0-1
U-122K-03-D0-1
U-122K-04-D0-1
U-122K-05-D0-1		 U-222K-01-D0-1
U-222K-02-D0-1
U-222K-03-D0-1
U-222K-04-D0-1
U-222K-05-D0-1
U-123K-01-D0-1
U-123K-02-D0-1
U-123K-03-D0-1
U-123K-04-D0-1
U-123K-05-D0-1		 U-223K-01-D0-1
U-223K-02-D0-1
U-223K-03-D0-1
U-223K-04-D0-1
U-223K-05-D0-1
U-124K-00-D0-1
U-124K-01-D0-1
U-124K-02-D0-1
U-124K-03-D0-1
U-124K-04-D0-1
U-124K-05-D0-1		 U-224K-00-D0-1
U-224K-01-D0-1
U-224K-02-D0-1
U-224K-03-D0-1
U-224K-04-D0-1
U-224K-05-D0-1
U-125K-01-D0-1
U-125K-02-D0-1
U-125K-03-D0-1
U-125K-04-D0-1
U-125K-05-D0-1		 U-225K-01-D0-1
U-225K-02-D0-1
U-225K-03-D0-1
U-225K-04-D0-1
U-225K-05-D0-1
U-126K-01-D0-1
U-126K-02-D0-1
U-126K-03-D0-1
U-126K-04-D0-1
U-126K-05-D0-1		 U-226K-01-D0-1
U-226K-02-D0-1
U-226K-03-D0-1
U-226K-04-D0-1
U-226K-05-D0-1
U-127K-00-D0-1
U-127K-01-D0-1
U-127K-02-D0-1
U-127K-03-D0-1
U-127K-04-D0-1
U-127K-05-D0-1		 U-227K-00-D0-1
U-227K-01-D0-1
U-227K-02-D0-1
U-227K-03-D0-1
U-227K-04-D0-1
U-227K-05-D0-1

U fluororesin-wheel models: D0 references

U-100 seriesU-200 series
U-131K-00-D0-1
U-131K-01-D0-1
U-131K-02-D0-1
U-131K-03-D0-1
U-131K-04-D0-1
U-131K-05-D0-1		 U-231K-00-D0-1
U-231K-01-D0-1
U-231K-02-D0-1
U-231K-03-D0-1
U-231K-04-D0-1
U-231K-05-D0-1
U-132K-01-D0-1
U-132K-02-D0-1
U-132K-03-D0-1
U-132K-04-D0-1
U-132K-05-D0-1		 U-232K-01-D0-1
U-232K-02-D0-1
U-232K-03-D0-1
U-232K-04-D0-1
U-232K-05-D0-1
U-133K-01-D0-1
U-133K-02-D0-1
U-133K-03-D0-1
U-133K-04-D0-1
U-133K-05-D0-1		 U-233K-01-D0-1
U-233K-02-D0-1
U-233K-03-D0-1
U-233K-04-D0-1
U-233K-05-D0-1
U-134K-00-D0-1
U-134K-01-D0-1
U-134K-02-D0-1
U-134K-03-D0-1
U-134K-04-D0-1
U-134K-05-D0-1		 U-234K-00-D0-1
U-234K-01-D0-1
U-234K-02-D0-1
U-234K-03-D0-1
U-234K-04-D0-1
U-234K-05-D0-1
U-135K-01-D0-1
U-135K-02-D0-1
U-135K-03-D0-1
U-135K-04-D0-1
U-135K-05-D0-1		 U-235K-01-D0-1
U-235K-02-D0-1
U-235K-03-D0-1
U-235K-04-D0-1
U-235K-05-D0-1
U-136K-01-D0-1
U-136K-02-D0-1
U-136K-03-D0-1
U-136K-04-D0-1
U-136K-05-D0-1		 U-236K-01-D0-1
U-236K-02-D0-1
U-236K-03-D0-1
U-236K-04-D0-1
U-236K-05-D0-1
U-137K-00-D0-1
U-137K-01-D0-1
U-137K-02-D0-1
U-137K-03-D0-1
U-137K-04-D0-1
U-137K-05-D0-1		 U-237K-00-D0-1
U-237K-01-D0-1
U-237K-02-D0-1
U-237K-03-D0-1
U-237K-04-D0-1
U-237K-05-D0-1

Accuracy, response and durability conditions

ItemPublished specification
Tolerance, 0–200°C ±2.5°C on a stationary, flat and smooth metal surface.
Tolerance, above 200–250°C ±3.0°C for configurations rated to 250°C.
Response test Time to reach 99% response on a flat and smooth metal surface.
Durability test More than 1500 continuous hours within tolerance on a flat, smooth metal surface moving at 200 m/min.
Pipe material SUS316 stainless steel.
Grip material Polyacetal.
Service Listed as repairable, subject to inspection and service conditions.

The durability-test speed is not a universal maximum operating speed. Surface roughness, contact pressure, temperature and movement affect measurement performance and wear. Confirm the selected probe’s speed limit for the actual application.

Selecting a probe for a roller or moving surface

Provide the roller diameter and rotational speed, or the linear surface speed. For a rotating cylinder, both diameter and RPM are needed to establish the speed at the contact point.

Describe the surface finish, direction of movement and available mounting space. Include whether measurement is intermittent or continuous and whether the probe will be handheld or installed in a fixture.

Choose an accessible measurement position and a suitable mounting arrangement that keeps the operator and cable clear of moving machinery.

Request a quotation

Contact us for pricing and availability. Please include:

  • U or UX series, if already selected.
  • Surface material, finish and operating temperature.
  • Roller diameter and RPM, or linear surface speed.
  • Required head size, guard or wheel construction.
  • Probe angle, reach and mounting arrangement.
  • Type E or Type K, instrument model, cable and connector.
  • Quantity and full existing model code for replacement enquiries.


Download

 U & UX series Catalogue - (1.58M)


16 other products in the same category:

Anritsu BR Series Low Temperature Probe
Quick view
Anritsu

Anritsu BR Series Low Temperature Probe

Anritsu BR Series flexible low-temperature probes for measuring air, liquids and semi-solid materials in cold and controlled environments.

  • Temperature range: -100°C to 200°C.
  • Thermocouple: Type K or Type E.
  • Response time: Approx. 1.5 seconds.
  • Configuration: Select thermocouple length, tape length, cable and connector.
Anritsu BT Series Heavy Duty Needle Temperature Probes
Quick view
Anritsu

Anritsu BT Series Heavy Duty Needle Temperature Probes

Measure temperature inside semi-solid materials with Anritsu BT Series needle temperature probes. Choose the needle diameter, length and tip shape to suit the measurement depth and material being tested.

  • Thermocouple: Type K or Type E.
  • Temperature range: -200°C to 210°C, 300°C or 500°C, depending on model.
  • Needle options: Fixed or replaceable construction, with cut or sharp tips.
  • Spare parts: BTN replacement needles for compatible BT-3 to BT-8 models.
Anritsu ST & STN Flat Leaf Temperature Probes
Quick view
Anritsu

Anritsu ST & STN Flat Leaf Temperature Probes

Measure temperature at attached sensing points with Anritsu ST and STN flat leaf temperature probes. Their flexible tape construction suits surface attachment and measurement locations where a conventional rigid probe is difficult to position.

  • ST series: Flat leaf probe assemblies with cable and connector configurations.
  • STN series: Replaceable sensing tapes used with a compatible extension cable.
  • Thermocouple: Type K or Type E.
  • Temperature: From -50°C to 210°C, 350°C or 400°C, depending on coating and tape length.
Anritsu Rotating Surface Probe With Flexible Head UX Series
Quick view
Anritsu

Anritsu UX Series Rotating Surface Temperature Probe

Anritsu UX Series flexible-head temperature probes for measuring moving and rotating surfaces with stable contact during measurement.

  • Temperature range: Up to -50°C to 250°C depending on configuration.
  • Surface speed: Up to 24 km/h or 36 km/h depending on head size.
  • Thermocouple: Type K or Type E.
  • Head movement: 360° movement with contact-support function.
Moving Wire Probe MW Series
Quick view
Anritsu

Moving Wire Probe MW Series

Anritsu MW series probes are ideal for measuring the temperatures at the surface of moving wires. Specific components may be combined to customize products for the needs of a customer's specific application.

Anritsu Flat Leaf Probe ST / STN Series
Quick view
Anritsu

Anritsu ST / STN Series Flat Leaf Temperature Probe

Anritsu ST and STN Series flexible flat-leaf temperature probes for surface attachment, narrow spaces and temperature distribution measurement.

  • Temperature range: Up to -50°C to 400°C depending on coating and tape length.
  • Thermocouple: Type K or Type E.
  • Construction: Standard or narrow tape with sharp or flat tip.
  • STN Series: Replaceable tape-type sensing elements.

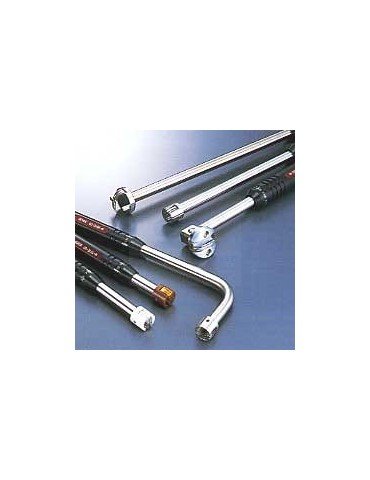

Anritsu A Series Surface Temperature Probes
Quick view
Anritsu

Anritsu A Series Surface Temperature Probes

Measure stationary surface temperatures with Anritsu A Series contact probes. Select the head size, guard and shaft arrangement to suit the measurement point and operating temperature.

  • Head diameters: 27 mm, 15 mm or 12 mm.
  • Temperature range: From -50°C, with upper limits of 200 to 800°C depending on construction.
  • Thermocouple: Type K or Type E.
  • Configuration: Multiple shaft shapes, lengths, cable and connector options.

Need help maintaining surface contact as the holding angle changes? Compare the Anritsu AX Series flexible-head surface probe.

Surface Probe with Flexible Head AX Series
Quick view
Anritsu

Anritsu AX Series Flexible-Head Surface Temperature Probe

Anritsu AX Series surface temperature probes with a flexible contact-support head for stable measurement on stationary surfaces.

  • Temperature range: Up to -50°C to 800°C depending on head construction.
  • Flexible head: ±4° movement for improved surface contact.
  • Thermocouple: Type K or Type E.
  • Configuration: Select head size, guard, pipe shape, length, cable and connector.
Anritsu BS Series Internal Temperature Probes for Liquids & Semi-Solids
Quick view
Anritsu

Anritsu BS Series Internal Temperature Probes for Liquids & Semi-Solids

Measure the internal temperature of liquids and semi-solid materials with Anritsu BS Series temperature probes. Choose a fine sleeve-type probe or a grip-type assembly according to the measurement depth, access and handling requirements.

  • Thermocouple: Type K or Type E.
  • Probe diameter: 0.9–5.0 mm, depending on model and coating.
  • Temperature range: -200°C to 200°C, 300°C or 500°C, depending on construction.
  • Configuration: Select probe length, fluororesin coating, cable and connector.
Anritsu CS Series Micro Surface Temperature Probes
Quick view
Anritsu

Anritsu CS Series Micro Surface Temperature Probes

Measure small stationary surfaces with Anritsu CS Series micro surface temperature probes. Choose the sensing head, shaft arrangement and connector to suit the measurement point and your thermometer.

  • Head sizes: 3 mm, 4.2 mm or 6 mm diameter, and 2 × 10 mm rectangular options.
  • Temperature range: -50 to 400°C, or -50 to 600°C for CS-7 models.
  • Thermocouple: Type K or Type E.
  • Configuration: Straight or angled shaft, with grip and gripless options.
Anritsu Needle Probe for Food BC Series
Quick view
Anritsu

Anritsu BC Series Needle Temperature Probe for Food

Anritsu BC Series needle probes for measuring the internal temperature of food, liquids and semi-solid materials.

  • Waterproof: IPX5 construction for washing under running water.
  • Temperature range: Up to -200°C to 300°C depending on model.
  • Thermocouple: Type K or Type E.
  • Configuration: Select probe diameter, length, coating, cable and connector.
Anritsu High Superior Surface Probe with Flexible Probe SX Series
Quick view
Anritsu

Anritsu SX Series Flexible-Head Surface Temperature Probe

Anritsu SX Series high-accuracy surface temperature probes with a flexible contact-support head for stable measurement on stationary surfaces.

  • Temperature range: -50°C to 300°C or -50°C to 800°C.
  • Flexible head: ±4° movement for improved surface contact.
  • Response: 1 second to 99% response.
  • Thermocouple: Type K or Type E.
Anritsu WE Series Self-Supporting Surface Temperature Probes
Quick view
Anritsu

Anritsu WE Series Self-Supporting Surface Temperature Probes

The Anritsu WE Series measures stationary surface temperatures using a self-supporting probe placed on the measurement target. Select the probe configuration to suit the surface, temperature and connected thermometer.

  • Contact measurement: Sensing element rests against the target surface.
  • Self-supporting design: For suitable surfaces where the probe can remain stable during measurement.
  • Configuration: Confirm the complete model code, thermocouple type, cable and connector.
