Anritsu CS Series Micro Surface Temperature Probes
:
Measure small stationary surfaces with Anritsu CS Series micro surface temperature probes. Choose the sensing head, shaft arrangement and connector to suit the measurement point and your thermometer.
- Head sizes: 3 mm, 4.2 mm or 6 mm diameter, and 2 × 10 mm rectangular options.
- Temperature range: -50 to 400°C, or -50 to 600°C for CS-7 models.
- Thermocouple: Type K or Type E.
- Configuration: Straight or angled shaft, with grip and gripless options.
The Anritsu CS Series provides compact contact sensors for measuring the temperature of stationary surfaces. Different sensing-head sizes and shaft arrangements help you select a probe that can reach the measurement point and sit correctly against the target.
Start with the available contact area and approach angle, then match the temperature range, thermocouple type and connection to your measuring instrument.
Anritsu CS Series probes for small stationary surface measurement points.
Compare sensing-head sizes
| Model family | Head dimensions | Temperature range |
|---|---|---|
| CS-0 | 3 mm diameter | -50 to 400°C |
| CS-1 | 4.2 mm diameter | -50 to 400°C |
| CS-2 | 6 mm diameter | -50 to 400°C |
| CS-3 | 2 × 10 mm rectangular head | -50 to 400°C |
| CS-7 | 6 mm diameter | -50 to 600°C |
Selection tip: Check the space around the target as well as its contact area. An angled shaft may improve access where a straight probe cannot approach the surface squarely.

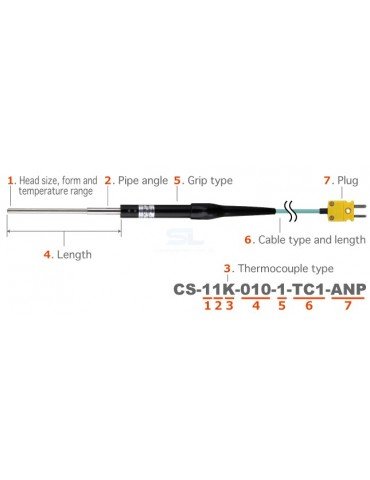

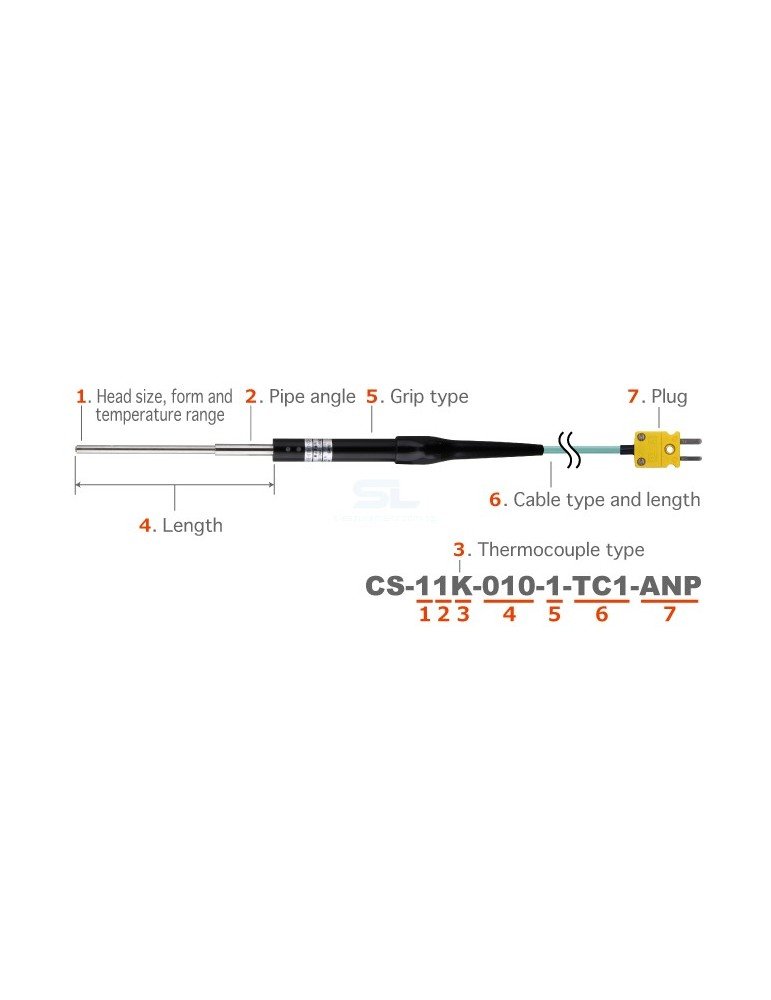

Probe configuration and ordering guide
Select a compatible combination of sensing head, shaft, grip, cable and connector.
| Selection | Ordering options |
|---|---|
| Shaft arrangement | 1: straight; 3: 90° bend parallel to the element direction; 6: 90° bend perpendicular to the element direction. |
| Thermocouple | E: Type E; K: Type K. |
| Shaft length | 005: 50 mm; 010: 100 mm; 015: 150 mm. |
| Grip | 1: standard grip; 0: no grip. |
| Cable | TC for standard-grip assemblies; TS for gripless assemblies. Cable-length code 1 indicates 1 metre. |
| Connector examples | ANP: miniature plug; ASP: Anritsu standard plug; W: without plug. Other terminal arrangements are available by configuration. |
Not every combination can be manufactured. Confirm the complete model code, particularly for 50 mm shafts and gripless configurations.
CS Series model comparison
The following references show Type E and Type K assemblies with a 100 mm shaft, standard grip, 1 metre TC cable and ANP miniature plug.
| Probe | Type E model | Type K model | Head / arrangement |
|---|---|---|---|
CS-01  |
CS-01E-010-1-TC1-ANP | CS-01K-010-1-TC1-ANP | 3 mm diameter; straight shaft |
CS-03  |
CS-03E-010-1-TC1-ANP | CS-03K-010-1-TC1-ANP | 3 mm diameter; 90° shaft |
CS-11  |
CS-11E-010-1-TC1-ANP | CS-11K-010-1-TC1-ANP | 4.2 mm diameter; straight shaft |
CS-13  |
CS-13E-010-1-TC1-ANP | CS-13K-010-1-TC1-ANP | 4.2 mm diameter; 90° shaft |
CS-21  |
CS-21E-010-1-TC1-ANP | CS-21K-010-1-TC1-ANP | 6 mm diameter; straight shaft |
CS-36  |
CS-36E-010-1-TC1-ANP | CS-36K-010-1-TC1-ANP | 2 × 10 mm rectangular head; perpendicular 90° shaft arrangement |
CS-73  |
CS-73E-010-1-TC1-ANP | CS-73K-010-1-TC1-ANP | 6 mm diameter; 90° shaft; rated to 600°C |
Measurement and operating specifications
| Specification | CS-0 models | CS-1 / CS-2 / CS-3 models | CS-7 models |
|---|---|---|---|
| Temperature range | -50 to 400°C | -50 to 400°C | -50 to 600°C |
| Tolerance: -50 to -40°C | ±3.5°C | ±2.5°C | ±2.5°C |
| Tolerance: above -40 to 100°C | ±3.0°C | ±2.5°C | ±2.5°C |
| Tolerance: above 100 to 200°C | ±5.0°C | ±3.1°C | ±3.1°C |
| Tolerance: above 200 to 300°C | ±7.5°C | ±5.0°C | ±5.0°C |
| Tolerance: above 300 to 400°C | ±10.0°C | ±6.3°C | ±6.3°C |
| Tolerance: above 400 to 500°C | Outside range | Outside range | ±8.0°C |
| Tolerance: above 500 to 600°C | Outside range | Outside range | ±13.0°C |
| 99% response time | 3 seconds | 2 seconds | 2 seconds |
| Thermocouple | Type E or Type K | ||
| Durability classification | A: more than 50,000 contacts under the manufacturer's test conditions | ||
| Shaft material | SUS304 stainless steel | ||
| Grip material | Phenol resin | ||
| Repair | Repairable; assessment required | ||
Test conditions: Tolerance and response figures apply to stationary, flat, smooth metal surfaces. Durability is evaluated at 300°C while maintaining the specified tolerance. The temperature range applies to the sensing head; the grip, cable and plug have separate limits.
Additional Type K model references
Use the references below when identifying an existing probe or requesting a configuration. The *** suffix is a connector placeholder and must be replaced with the required termination code before ordering.
| Model | Gripless / TS cable references | Standard grip / TC cable references |
|---|---|---|
| CS-01K | CS-01K-010-0-TS1-*** CS-01K-015-0-TS1-*** |
CS-01K-005-1-TC1-*** CS-01K-010-1-TC1-*** CS-01K-015-1-TC1-*** |
| CS-03K | CS-03K-010-0-TS1-*** CS-03K-015-0-TS1-*** |
CS-03K-005-1-TC1-*** CS-03K-010-1-TC1-*** CS-03K-015-1-TC1-*** |
| CS-11K | CS-11K-010-0-TS1-*** CS-11K-015-0-TS1-*** |
CS-11K-005-1-TC1-*** CS-11K-010-1-TC1-*** CS-11K-015-1-TC1-*** |
| CS-13K | CS-13K-010-0-TS1-*** CS-13K-015-0-TS1-*** |
CS-13K-005-1-TC1-*** CS-13K-010-1-TC1-*** CS-13K-015-1-TC1-*** |
| CS-21K | CS-21K-005-0-TS1-*** CS-21K-010-0-TS1-*** CS-21K-015-0-TS1-*** |
CS-21K-005-1-TC1-*** CS-21K-010-1-TC1-*** CS-21K-015-1-TC1-*** |
| CS-23K | CS-23K-005-0-TS1-*** CS-23K-010-0-TS1-*** CS-23K-015-0-TS1-*** |
CS-23K-005-1-TC1-*** CS-23K-010-1-TC1-*** CS-23K-015-1-TC1-*** |
| CS-31K | CS-31K-015-0-TS1-*** | CS-31K-010-1-TC1-*** CS-31K-015-1-TC1-*** |
| CS-33K | CS-33K-010-0-TS1-*** CS-33K-015-0-TS1-*** |
CS-33K-005-1-TC1-*** CS-33K-010-1-TC1-*** CS-33K-015-1-TC1-*** |
| CS-36K | CS-36K-010-0-TS1-*** CS-36K-015-0-TS1-*** |
CS-36K-005-1-TC1-*** CS-36K-010-1-TC1-*** CS-36K-015-1-TC1-*** |
Choosing a probe for your measurement point
- Contact area: Provide the dimensions and a photograph of the surface to be measured.
- Access: State the available clearance and whether the probe must approach from above or from the side.
- Temperature: Include the normal operating temperature and highest expected temperature.
- Instrument connection: Identify the thermometer model, thermocouple input and connector.
- Handling: Specify handheld use or a proposed mounting arrangement.
For moving or rotating targets, see the Anritsu U and UX Series moving-surface probes. For magnetic attachment to a suitable surface, compare the Anritsu MG Series magnetic probes.
Product video
Request a probe selection and quotation
Contact us for pricing and availability. Include the required CS model or describe the measurement surface, temperature, access dimensions and connected thermometer. For an existing probe replacement, send the complete model code and photographs of the sensing head and connector.
|
Download |
Measure small stationary surfaces with Anritsu CS Series micro surface temperature probes. Choose the sensing head, shaft arrangement and connector to suit the measurement point and your thermometer.
- Head sizes: 3 mm, 4.2 mm or 6 mm diameter, and 2 × 10 mm rectangular options.
- Temperature range: -50 to 400°C, or -50 to 600°C for CS-7 models.
- Thermocouple: Type K or Type E.
- Configuration: Straight or angled shaft, with grip and gripless options.
