Anritsu ST / STN Series Flat Leaf Temperature Probe
Anritsu ST and STN Series flexible flat-leaf temperature probes for surface attachment, narrow spaces and temperature distribution measurement.
- Temperature range: Up to -50°C to 400°C depending on coating and tape length.
- Thermocouple: Type K or Type E.
- Construction: Standard or narrow tape with sharp or flat tip.
- STN Series: Replaceable tape-type sensing elements.
The Anritsu ST and STN Series are thin, flexible temperature probes designed for surface attachment, insertion into narrow spaces and temperature measurement of objects with low heat capacity.
The flat tape construction can be fixed to a measurement surface using suitable adhesive tape, allowing the sensing point to remain in position during testing.
Different tape widths, tip shapes, coatings, thermocouple types and lengths are available for low- and high-temperature applications.
The ST Series is supplied as a complete probe with cable and connector, while the STN Series uses a replaceable tape-type sensing element with a dedicated extension cable.

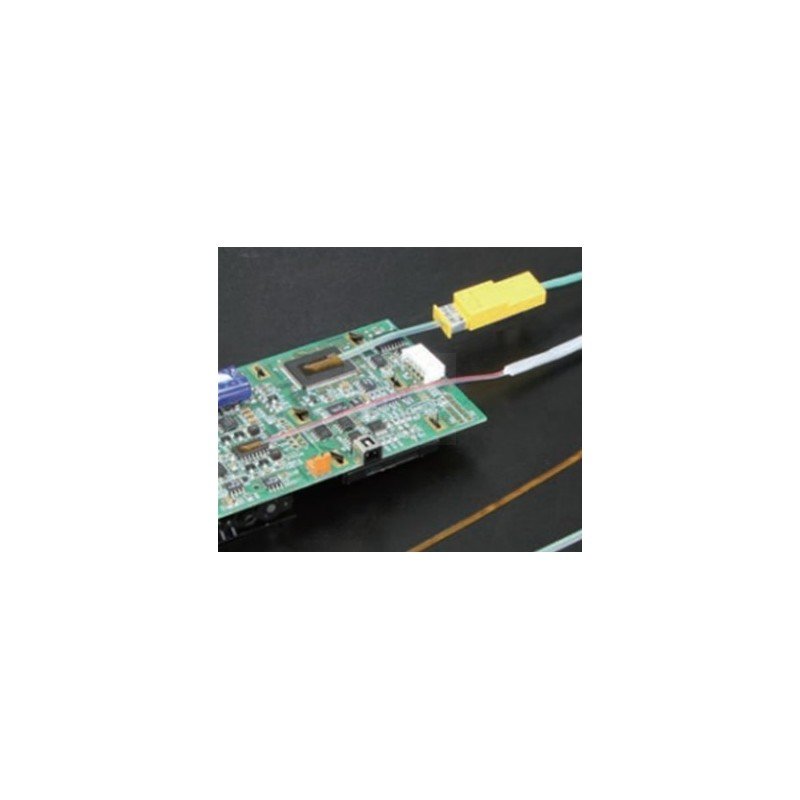

Anritsu ST flat leaf probes with flexible tape construction.
ST or STN: which construction?
| Feature | ST series | STN series |
|---|---|---|
| Configuration | Probe assembly specified with cable and connector. | Replaceable sensing tape connected through a compatible extension cable. |
| Ordering focus | Specify the complete probe code. | Specify the sensing tape and compatible cable arrangement. |
| Thermocouple | Type E or Type K. | Type E or Type K. |
| Selection considerations | Suitable when a complete probe assembly is preferred. | Consider when sensing tapes need to be changed between measurement tasks. |
STN is an alternative construction, not a direct replacement for every ST assembly. Confirm the tape connection and extension cable before ordering.

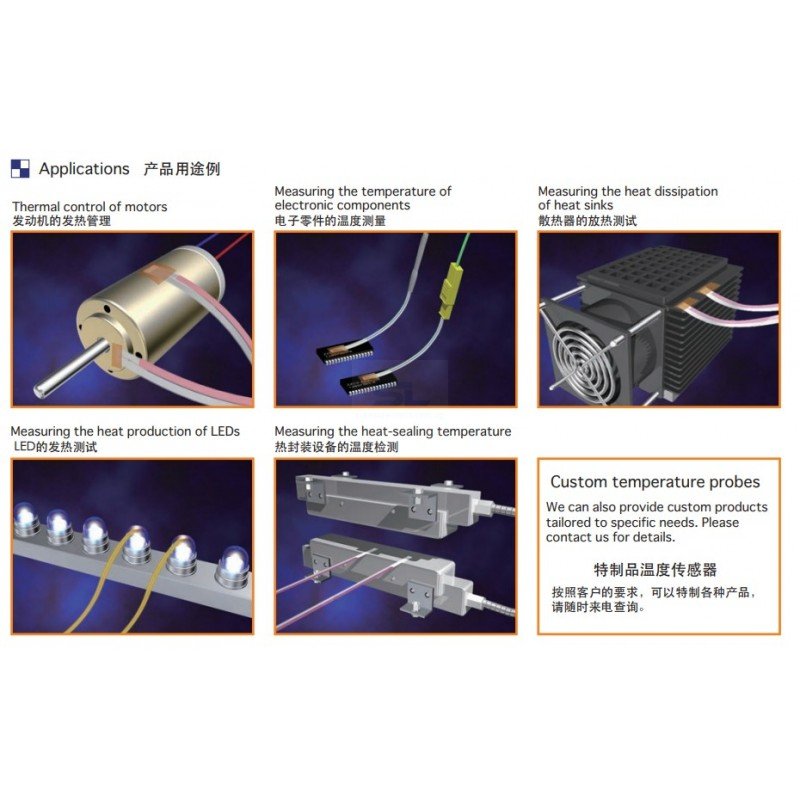

Typical Applications
The very small thermal mass of the sensing tape makes the ST / STN Series particularly suitable for components and surfaces where a larger probe could influence the measured temperature.
- Electronic components
- Heat sinks
- Motors and thermal-control testing
- LED temperature measurement
- Heat-sealing equipment
- Thin plates and small components
- Temperature distribution measurements
- Measurement through narrow gaps
- General research and development
ST Series Flat Leaf Probe
The ST Series combines the sensing tape, lead cable and connector as one complete temperature probe.
It is configurable by tape width and shape, coating, thermocouple type, tape length, cable type, cable length and connector.
ST Series Tape Shape and Coating
Four basic tape constructions are available. Each can be combined with standard or narrow tape widths and either a sharp or flat sensing end.
| Series Code | Coating | Tip Condition | Temperature Range | Response |
|---|---|---|---|---|
| ST-*1 | Fluororesin / Teflon | Open tip | -50°C to 210°C | 2 s |
| ST-*2 | Full fluororesin / Teflon coating | Fully coated | -50°C to 210°C | 8 s |
| ST-*3 | Polyimide | Open tip | -50°C to 400°C for tape ≤150 mm -50°C to 350°C for tape >150 mm |
2 s |
| ST-*4 | Full polyimide coating | Fully coated | -50°C to 400°C for tape ≤150 mm -50°C to 350°C for tape >150 mm |
8 s |
Choose the tape shape and coating
ST selection guide. Confirm the complete combination of tape, coating, length, cable and plug.
| Coating code | Construction | Sensing-tape temperature range | Nominal response |
|---|---|---|---|
| ST-*1 / STN-*1 | Fluororesin coating, open sensing point. | -50 to 210°C | 2 seconds |
| ST-*2 / STN-*2 | Fully fluororesin coated. | -50 to 210°C | 8 seconds |
| ST-*3 / STN-*3 | Polyimide coating, open sensing point. | -50 to 400°C at tape lengths up to 150 mm; -50 to 350°C above 150 mm. | 2 seconds |
| ST-*4 / STN-*4 | Fully polyimide coated. | -50 to 400°C at tape lengths up to 150 mm; -50 to 350°C above 150 mm. | 8 seconds |
| ST-25 | Separate ST-25 construction. | -50 to 210°C | 2 seconds |
The asterisk represents the selected tape-shape code. The sensing-tape temperature rating does not apply automatically to the cable, connection or plug.
ST Tape Shape
| First Digit | Tape Type | Tip Shape |
|---|---|---|
| 1 | Standard width | Sharp |
| 2 | Standard width | Flat |
| 3 | Narrow | Sharp |
| 4 | Narrow | Flat |
ST Thermocouple and Tape Length
The ST Series is available with either Type K or Type E thermocouples. Tape length is selected according to the measurement position.
| Code | Tape Length |
|---|---|
| 003 | 30 mm |
| 005 | 50 mm |
| 008 | 80 mm |
| 010 | 100 mm |
| 015 | 150 mm |
| 020 | 200 mm |
| 030 | 300 mm |
| 040 | 400 mm |
| 050 | 500 mm |
| 100 | 1000 mm |
| 150 | 1500 mm |
| 200 | 2000 mm |
ST Cable and Connector
| Cable | Construction | Heat Resistance | Typical Use |
|---|---|---|---|
| TS | Silicone-rubber insulated | 240°C | Low-temperature ST-*1 / ST-*2 |
| GW | Glass-fibre insulated | 300°C | High-temperature ST-*3 / ST-*4 |
| 0 | Without separate cable | - | Tape connected directly to plug |
| Connector Code | Connection |
|---|---|
| ASP | Anritsu standard plug |
| ANP | Miniature thermocouple plug |
| W | Without plug |
| WT3 / WT4 / WT5 | Spade terminal |
| WC3 / WC4 / WC5 | Ring terminal |

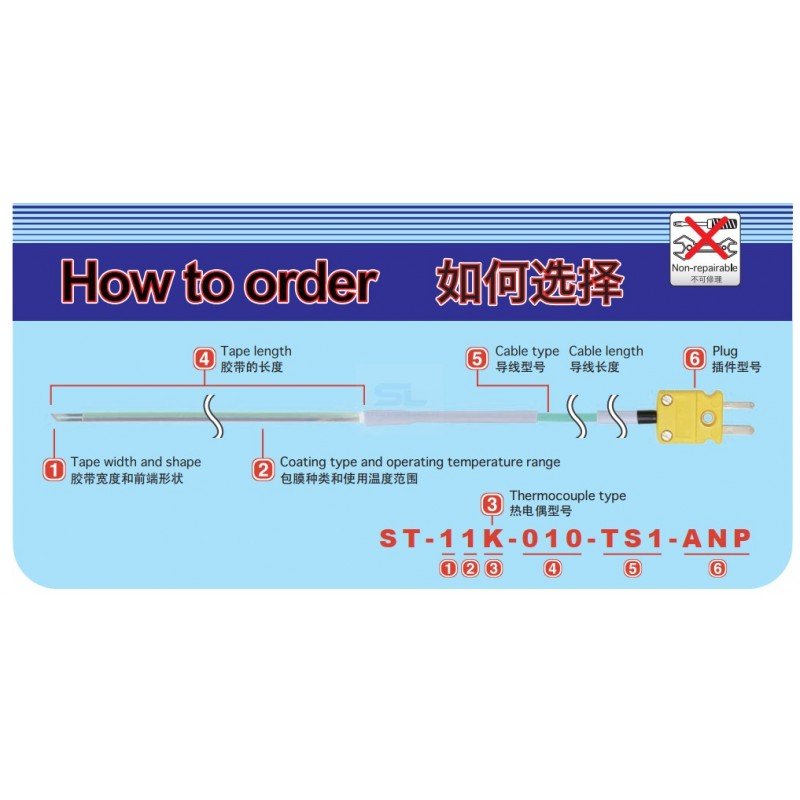

How to Read an ST Model Number
For example: ST-11K-010-TS1-ANP
| Section | Meaning |
|---|---|
| 1 | Standard-width sharp tape |
| 1 | Fluororesin coating, open sensing tip |
| K | Type K thermocouple |
| 010 | 100 mm tape length |
| TS1 | TS cable, 1 m |
| ANP | Miniature thermocouple plug |
ST Series Specifications
| Specification | ST-*1 | ST-*2 | ST-*3 | ST-*4 |
|---|---|---|---|---|
| Thermocouple | Type K or E | Type K or E | Type K or E | Type K or E |
| Temperature Range | -50 to 210°C | -50 to 210°C | -50 to 400°C* | -50 to 400°C* |
| Response Time | 2 s | 8 s | 2 s | 8 s |
| Tolerance at 100°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| Repair | Non-repairable | Non-repairable | Non-repairable | Non-repairable |
*For high-temperature ST-*3 and ST-*4 probes, the maximum is 400°C when the tape length is 150 mm or shorter and 350°C when the tape exceeds 150 mm.
ST probe models and reference pictures
Compare the complete ST probe references below. Match Type E or Type K to the connected instrument.
| Probe | Type E model | Type K model | Temperature range | Response |
|---|---|---|---|---|
ST-11  |
ST-11E-010-TS1-ANP | ST-11K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-12  |
ST-12E-010-TS1-ANP | ST-12K-010-TS1-ANP | -50 to 210°C | 8 s |
ST-13  |
ST-13E-015-GW1-ANP | ST-13K-015-GW1-ANP | -50 to 400°C | 2 s |
ST-21  |
ST-21E-010-TS1-ANP | ST-21K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-24  |
ST-24E-015-GW1-ANP | ST-24K-015-GW1-ANP | -50 to 400°C | 8 s |
ST-31  |
ST-31E-010-TS1-ANP | ST-31K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-32  |
ST-32E-010-TS1-ANP | ST-32K-010-TS1-ANP | -50 to 210°C | 8 s |
ST-34  |
ST-34E-015-GW1-ANP | ST-34K-015-GW1-ANP | -50 to 400°C | 8 s |
ST-41  |
ST-41E-010-TS1-ANP | ST-41K-010-TS1-ANP | -50 to 210°C | 2 s |
ST-42  |
ST-42E-015-TS1-ANP | ST-42K-015-TS1-ANP | -50 to 210°C | 8 s |
ST-44  |
ST-44E-015-GW1-ANP | ST-44K-015-GW1-ANP | -50 to 400°C | 8 s |
ST-25  |
ST-25E-100-TC1-ANP | ST-25K-100-TC1-ANP | -50 to 210°C | 2 s |
ST Series Models Available
The table below lists Type K model families and tape-length code groups. These groups are not complete ordering codes; confirm the exact tape length, cable and connector. Equivalent Type E configurations can be requested.
| Model Family | Available Tape-Length Codes |
|---|---|
| ST-11K | 003~015, 020~050, 060~100, 150, 200 |
| ST-12K | 003~015, 020~050, 060~100, 150, 200 |
| ST-13K | 003~015, 020~050, 060~100, 150, 200 |
| ST-14K | 003~015, 020~050, 060~100, 150, 200 |
| ST-21K | 003~015, 020~050, 060~100, 150, 200 |
| ST-22K | 003~015, 020~050, 060~100, 150, 200 |
| ST-23K | 003~015, 020~050, 060~100, 150, 200 |
| ST-24K | 003~015, 020~050, 060~100, 150, 200 |
Additional ST Type K references
Use these grouped references alongside the complete probe examples above. They identify model and length-code groups, not complete ordering codes. Confirm the exact tape length, cable and connector combination.
| Model | Previously listed reference groups |
|---|---|
| ST-11K | ST-11K-003–015; ST-11K-020–050; ST-11K-060–100; ST-11K-150; ST-11K-200 |
| ST-12K | ST-12K-003–015; ST-12K-020–050; ST-12K-060–100; ST-12K-150; ST-12K-200 |
| ST-13K | ST-13K-003–015; ST-13K-020–050; ST-13K-060–100; ST-13K-150; ST-13K-200 |
| ST-14K | ST-14K-003–015; ST-14K-020–050; ST-14K-060–100; ST-14K-150; ST-14K-200 |
| ST-21K | ST-21K-003–015; ST-21K-020–050; ST-21K-060–100; ST-21K-150; ST-21K-200 |
| ST-22K | ST-22K-003–015; ST-22K-020–050; ST-22K-060–100; ST-22K-150; ST-22K-200 |
| ST-23K | ST-23K-003–015; ST-23K-020–050; ST-23K-060–100; ST-23K-150; ST-23K-200 |
| ST-24K | ST-24K-003–015; ST-24K-020–050; ST-24K-060–100; ST-24K-150; ST-24K-200 |
STN Series Replaceable Flat Leaf Probe
The STN Series uses a replaceable tape-type sensing element. The replaceable sensor connects to a dedicated STN extension cable rather than having a permanent cable attached to every sensing tape.
This arrangement is useful where thin sensing tapes are installed repeatedly or where several replaceable sensing elements are required.
Selected STN sensing elements are supplied in sets of five.

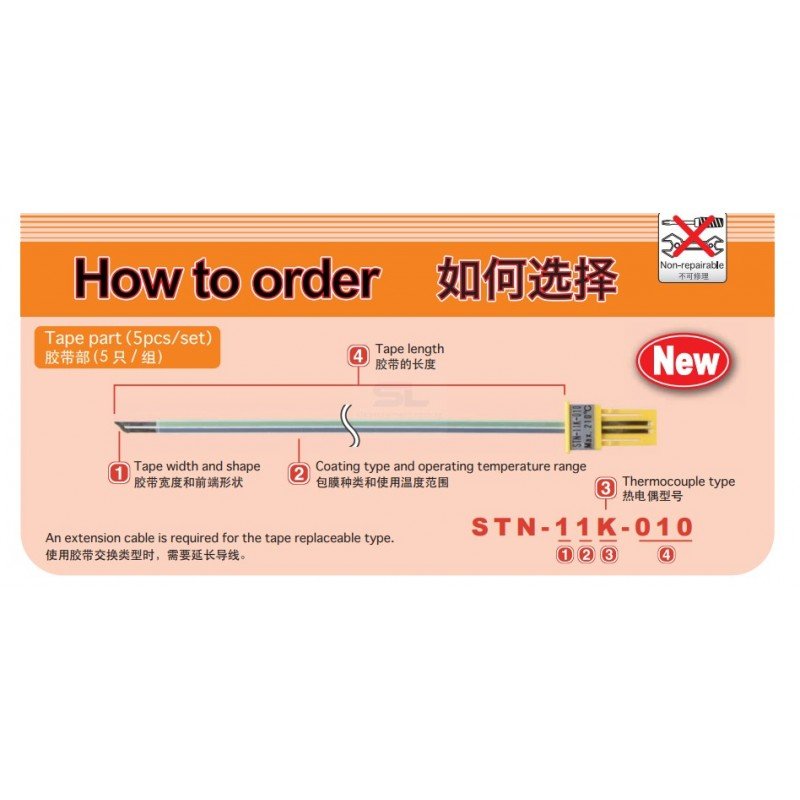

STN Typical Models
STN replaceable sensing tapes
STN separates the replaceable sensing tape from the compatible extension cable. Confirm both parts when assembling a measurement set. The references below are listed by Anritsu as five-piece tape sets; check the supplied contents when ordering.
| Type E reference | Type K reference | Tape length | Temperature range | Response |
|---|---|---|---|---|
| STN-11E-010 | STN-11K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-31E-010 | STN-31K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-11E-200 | STN-11K-200 | 2000 mm | -50 to 210°C | 2 s |
| STN-31E-100 | STN-31K-100 | 1000 mm | -50 to 210°C | 2 s |
| STN-21E-010 | STN-21K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-41E-010 | STN-41K-010 | 100 mm | -50 to 210°C | 2 s |
| STN-22E-010 | STN-22K-010 | 100 mm | -50 to 210°C | 8 s |
| STN-34E-015 | STN-34K-015 | 150 mm | -50 to 400°C | 8 s |
| STN-23E-100 | STN-23K-100 | 1000 mm | -50 to 350°C | 2 s |
| STN-43E-010 | STN-43K-010 | 100 mm | -50 to 400°C | 2 s |
STN Series Specifications
| Specification | STN-*1 | STN-*2 | STN-*3 | STN-*4 |
|---|---|---|---|---|
| Thermocouple | Type K or E | Type K or E | Type K or E | Type K or E |
| Temperature range | -50 to 210°C | -50 to 210°C | -50 to 400°C for tape lengths up to 150 mm; -50 to 350°C for longer tapes |
-50 to 400°C for tape lengths up to 150 mm; -50 to 350°C for longer tapes |
| Tolerance: -50°C to below -40°C | ±3.5°C | ±3.5°C | ±3.5°C | ±3.5°C |
| Tolerance at 0°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| Tolerance at 100°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| Tolerance at 200°C | ±2.5°C | ±2.5°C | ±2.5°C | ±2.5°C |
| Tolerance at 300°C | Outside range | Outside range | ±2.5°C | ±2.5°C |
| Tolerance at 400°C | Outside range | Outside range | ±3.0°C; tape length up to 150 mm only | ±3.0°C; tape length up to 150 mm only |
| 99% response time | 2 seconds | 8 seconds | 2 seconds | 8 seconds |
| Durability classification | S: no standard durability rating assigned for this special-application probe. | |||
| Repair | Sensing tapes are non-repairable. Replace the tape when required. | |||
Tolerance calculation: From -40°C upwards, within the selected tape’s operating range, use the greater of ±2.5°C or ±(0.0075 × |t|)°C, where t is the measured temperature in °C.
Measurement conditions: Published tolerance applies to internal-temperature measurement with sufficient heat capacity. Response is measured to 99% of the true value in boiling water or vapour. Surface attachment, contact quality and the target material affect actual performance.
Temperature limits: The sensing-tape rating does not automatically apply to the cable, connection or plug. Keep each component within its own operating limits.
Tolerance and measurement conditions
| Temperature | ST / STN coating codes 1–4 | ST-25 |
|---|---|---|
| -50°C to below -40°C | ±3.5°C | ±3.5°C |
| 0°C | ±2.5°C | ±2.5°C |
| 100°C | ±2.5°C | ±2.5°C |
| 200°C | ±2.5°C | ±2.5°C |
| 300°C | ±2.5°C; high-temperature types only. | Outside range. |
| 400°C | ±3.0°C; high-temperature types with tape length up to 150 mm only. | Outside range. |
For coating codes 1–4 at -40°C and above, within the permitted operating range, tolerance is the greater of ±2.5°C or ±0.75% of the absolute temperature in °C. ST-25 tolerance is ±2.5°C from -40 to 210°C.
Published tolerance is established under internal-temperature test conditions with sufficient heat capacity. Published response time is the time to reach 99% of the temperature change in boiling water or vapour. Attachment, contact quality and the target material affect practical surface measurements.
Anritsu does not assign a general durability rating for these special-application probes and lists them as non-repairable. STN tape replacement is a feature of its construction, rather than repair of a damaged tape.
Product video
Selecting and attaching the probe
Describe the target material, available contact area and how the tape will be secured. The fixing method must suit the surface and temperature without creating an unacceptable delay or disturbing the measurement.
Confirm the thermocouple input and connector on your instrument. Type E and Type K probes require the corresponding input setting and compatible connections.
Selecting an ST or STN Probe
Choose the complete ST probe assembly when you need a sensing tape supplied with its cable and termination. Choose the STN arrangement when replaceable sensing tapes and a compatible extension cable suit your measurement work.
- Measurement point: Describe the surface, material or space where the tape will be positioned.
- Temperature: Include the normal and highest expected temperature.
- Tape: Specify the required shape, coating and length.
- Instrument: Confirm Type K or Type E and the thermometer or data logger model.
- Connection: For STN, identify any extension cable already in use.
Request a quotation
Contact us for pricing and availability. Please include:
- ST complete probe or STN replaceable sensing tape.
- Type E or Type K thermocouple.
- Minimum and maximum measurement temperatures.
- Tape shape, coating and required length.
- Target material and proposed attachment method.
- Thermometer or data logger model, cable length and connector.
- Quantity and existing full model code, if replacing a probe.
