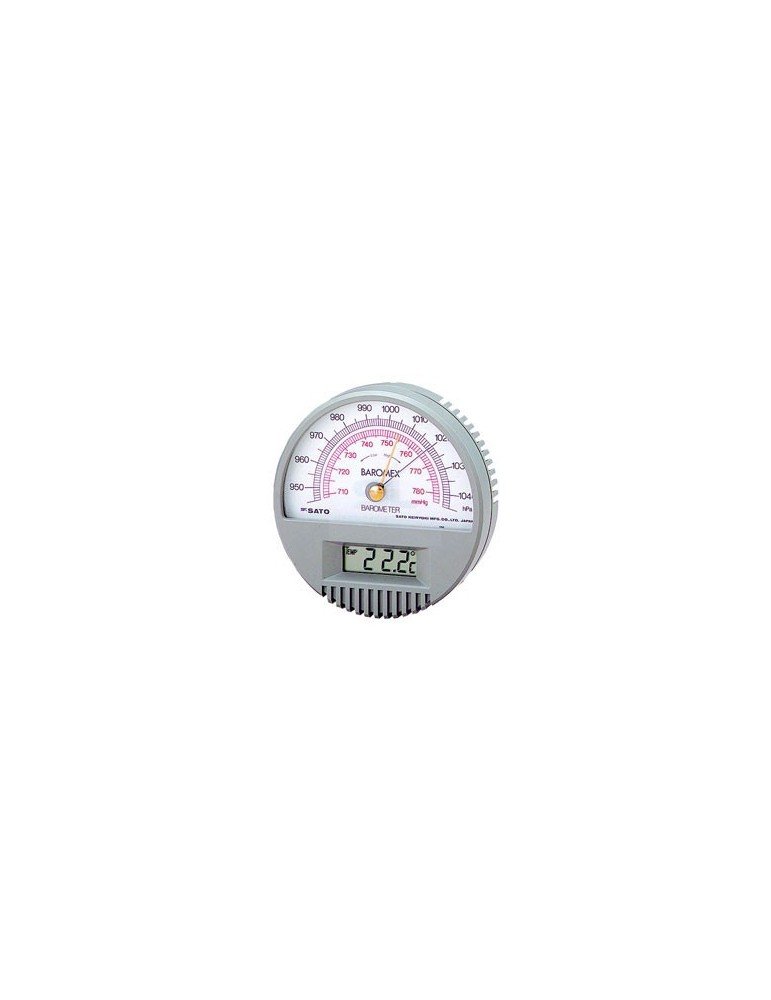

Check atmospheric pressure and room temperature together with the Sato Baromex 7612-00. The circular pressure dial provides a visible indication of barometric conditions, while the integrated digital thermometer displays the temperature at the installation location.
For offices, observation rooms and teaching spaces, this combination provides a convenient point for routine readings. If your procedure requires a written history, record the readings and observation times in a log sheet.
Pressure dial with reference pointer
The barometer uses an aneroid mechanism to indicate atmospheric pressure. A separate adjustable reference pointer lets you mark an earlier reading and compare it with the measuring pointer during the next check.
For useful trend observations, read the instrument at consistent times and record the result before resetting the reference pointer. A rising or falling reading describes the pressure change at that location; weather interpretation should also consider other observations and forecasts.
Pressure and temperature specifications
| Specification | Details |
|---|
| Product / catalogue number |
Sato Baromex barometer with digital thermometer / 7612-00. |
|---|
| Pressure indication |
Analogue dial with adjustable reference pointer. |
|---|
| Pressure scale |
945–1045 hPa, black scale; 710–780 mmHg, red scale. |
|---|
| Minimum pressure graduation |
1 hPa / 1 mmHg. |
|---|
| Pressure accuracy |
±1 hPa at 980–1020 hPa and 15–30°C; ±3 hPa otherwise within the specified operating conditions. |
|---|
| Temperature range |
0–50°C. |
|---|
| Temperature resolution |
0.1°C. |
|---|
| Temperature accuracy |
±1°C at 0–40°C; ±2°C elsewhere within the measuring range. |
|---|
| Temperature unit selection |
°C / °F switch on the rear. |
|---|
| Dimensions |
135 mm diameter × 33 mm depth. |
|---|
| Weight |
Approximately 220 g, including battery. |
|---|
| Power |
One AA battery for the digital thermometer. |
|---|
Reading the specifications: Scale graduation and display resolution are different from accuracy. Use the stated accuracy limits when deciding whether this instrument meets your inspection or measurement requirements.
Indoor mounting and everyday use
Mount the instrument vertically on a stable indoor wall. Choose a position away from direct sunlight, heaters, strong drafts and vibration so the readings represent the conditions you intend to observe.
Allow approximately 15–30 minutes for the instrument to settle after installation. Keep its ventilation openings clear and protect it from water and condensation.
When comparing pressure readings with another instrument or a weather report, check the reference basis. Local atmospheric pressure and pressure corrected to sea level can differ, particularly when the measurement locations are at different elevations.
Supplied items and routine care
- Sato Baromex 7612-00 instrument.
- Wall-mount bracket with three screws.
- One AA battery.
- Instruction manual.
Replace the battery when the temperature display becomes dim. Clean the case gently with a soft cloth and follow the manual when making any pressure adjustment.
Choosing between a dial barometer and PC recording
The 7612-00 suits visual checks and manually recorded observations. For applications requiring live graphs and pressure data saved to a computer, consider the Sato SK-500B digital barometer.
Before selecting either instrument, decide whether you need a local indication, a recorded measurement history or a calibrated reference for a particular procedure.
Request pricing and availability
Contact us for pricing and availability. Please specify Sato Baromex 7612-00, the required quantity and the intended application. Include any calibration or certificate requirements so these can be confirmed with the quotation.
