Record atmospheric conditions alongside your test results with the Sato SK-500B digital barometer. This desktop instrument provides a numerical pressure reading for laboratories, inspection rooms and other indoor locations where barometric pressure forms part of the measurement record.
Use the front display for routine observations, connect a PC for measurement history, or specify the optional printer for paper records at the instrument. Choose the recording arrangement according to how your team reviews and retains its results.
Atmospheric pressure measurement for laboratory and testing work
| Measurement task | How to plan the installation |
|---|
| Laboratory environmental records |
Record local atmospheric pressure alongside the date, time and other environmental conditions required by your procedure. |
|---|
| Testing and quality control |
Check that the barometer’s accuracy meets the test method, particularly where pressure is used in a correction or calculation. |
|---|
| Pressure trend observations |
Use PC recording when you need to review changes over time rather than take occasional manual readings. |
|---|
| Comparison measurements |
Define the measurement height, reference instrument and calibration requirements before comparing results. |
|---|
The SK-500B measures atmospheric pressure. It is not a differential-pressure instrument for comparing two rooms, and its pressure port should not be treated as a general-purpose connection for compressed air, liquids or process gases.

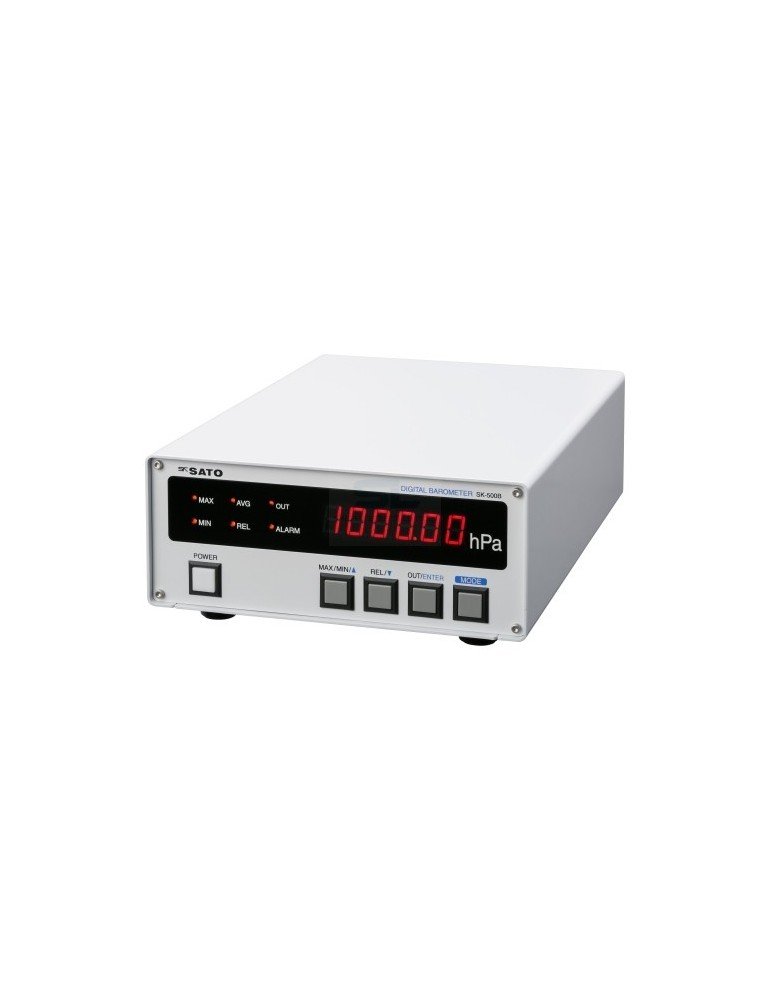

Sato SK-500B desktop digital barometer for atmospheric pressure measurement.
SK-500B specifications
| Specification | Details |
|---|
| Model / catalogue number |
SK-500B / 7630-00. |
|---|
| Measuring range |
600.00–1100.00 hPa. |
|---|
| Display resolution |
0.01 hPa. |
|---|
| Accuracy |
±0.50 hPa at 700.00–1100.00 hPa and 10–40°C; ±1.00 hPa under other conditions within the specified measuring and operating ranges. |
|---|
| Sampling interval |
Approximately 1 second. |
|---|
| Sensor |
Piezoresistive pressure sensor. |
|---|
| Display |
Six-digit, seven-segment red LED. |
|---|
| Operating environment |
-10 to +50°C; below 85% RH, without condensation. |
|---|
| Power |
Dedicated AC adapter: 100–240 V AC input; 9 V DC, 660 mA output. |
|---|
| Dimensions |
Approximately 200 W × 90 H × 280 D mm, excluding protrusions. |
|---|
| Weight |
Approximately 3.0 kg. |
|---|
Resolution and accuracy: The 0.01 hPa display increment helps show small changes, but it does not mean the instrument is accurate to ±0.01 hPa. Use the accuracy specification and calibration results when assessing suitability for a measurement procedure.
PC recording, graphs and CSV files
Sato’s dedicated software displays measurements as a live graph and saves acquired data in CSV format. The instrument communicates through RS-232C; connection to a USB port uses the appropriate USB-to-serial adapter and driver.
For a new installation, confirm the software version, Windows environment and cable compatibility before commissioning. Plan for the PC to remain connected and running during the required recording period.
SK-500B software display example. Measurements can be graphed and saved as CSV files on a connected PC.
Measurement functions and alarm outputs
MAX and MIN help review the highest and lowest readings, while AVG provides a moving average. REL displays a value relative to a selected reference. Choose the function that matches the observation you need to make.
Upper and lower alarm thresholds can be set separately. Contact outputs allow connection to a suitable external warning device, such as a buzzer or indicator light. Check the electrical ratings and connection instructions when specifying the external alarm arrangement.
Printer, paper and supplied accessories
| Part number / item | Description | Supply status |
|---|
| 7630-00 |
Sato SK-500B digital barometer. |
Main instrument. |
|---|
| 7630-60 |
Dedicated printer for producing measurement records at the instrument. |
Optional. |
|---|
| 8009-82 |
Replacement printing paper, 10 rolls per pack. |
Consumable for the dedicated printer. |
|---|
| AC adapter |
Dedicated power adapter for the barometer. |
Standard accessory. |
|---|
| Communication cables |
RS-232C cable and USB-to-serial cable. |
Listed standard accessories; confirm the supplied cable and driver requirements for your PC. |
|---|
| Instruction manual |
Operating and connection instructions. |
Standard accessory. |
|---|
When ordering paper for an existing printer, provide its model or catalogue number. This helps confirm compatibility where an older printer is already in service.
Installation and comparison of readings
Install the barometer horizontally on a stable indoor surface. Keep it away from vibration, direct airflow, sunlight, heat sources and splashing water. Allow the instrument to settle to the room conditions before taking comparison measurements.
Atmospheric pressure changes with elevation. A reading taken at the instrument’s location may therefore differ from a weather service value corrected to sea level. Compare readings on the same pressure basis and account for differences in measurement height.
The instrument’s reference height is the centre of its rear pressure port. Include this reference when setting up a comparison with another barometer.
Calibration and quotation
Contact us for pricing and availability. Specify the Sato SK-500B, catalogue number 7630-00, required quantity and whether you need PC recording, the optional printer or replacement paper.
If calibration documentation is required, provide the measurement points, acceptance limits and certificate requirements with your enquiry. This allows the appropriate calibration arrangement to be confirmed before ordering.
