FUJIFILM Prescale Pressure Measurement Film
:
Reveal contact pressure and uneven loading with FUJIFILM Prescale pressure measurement film. The film develops a red impression where pressure is applied, helping you inspect the contact pattern between mating surfaces.
- Pressure range: Nine standard grades covering 0.006–300 MPa.
- Applications: Roller contact, press platens, clamping, assembly and gasket contact checks.
- Film construction: Two-sheet and mono-sheet types, depending on the selected grade.
- Selection: Choose according to expected contact pressure, temperature, humidity and loading duration.
Identify uneven surface contact with FUJIFILM Prescale pressure measurement film. Placed between contacting surfaces, the film produces a red impression that shows where pressure has been applied. Differences in colour density help reveal variations across the contact area.
Use the impression to investigate loading patterns, compare machine adjustments and document contact conditions during maintenance or process setup. Prescale measures pressure between contacting surfaces; it is not a direct substitute for a liquid or gas pressure gauge.
How Prescale pressure measurement film works
Applied pressure breaks microcapsules in the film, allowing a colour-forming material to react with a developer. The resulting red pattern records the distribution of contact pressure. Colour density is interpreted using the instructions and reference curves for the selected film grade.
- Two-sheet type: Uses separate A-film and C-film, with their coated surfaces facing each other during measurement.
- Mono-sheet type: Combines the colour-forming and developing layers in a single film.
- Single-use measurement: The colour change is irreversible. Use fresh film for each measurement.
FUJIFILM Prescale grades and pressure ranges
Select a grade that covers the expected contact pressure. Where the pressure is unknown or varies substantially across the surface, more than one grade may be needed to investigate the full pattern.
| Film grade | Pressure range | Construction | Standard roll size Width × length |
|---|---|---|---|
| 5LW | 0.006–0.05 MPa | Two-sheet | 320 mm × 2 m |
| 4LW | 0.05–0.2 MPa | Two-sheet | 320 mm × 3 m |
| LLLW | 0.2–0.6 MPa | Two-sheet | 270 mm × 5 m |
| LLW | 0.5–2.5 MPa | Two-sheet | 270 mm × 6 m |
| LW | 2.5–10 MPa | Two-sheet | 270 mm × 10 m |
| MW | 10–50 MPa | Two-sheet | 270 mm × 10 m |
| MS | 10–50 MPa | Mono-sheet | 270 mm × 10 m |
| HS | 50–130 MPa | Mono-sheet | 270 mm × 10 m |
| HHS | 130–300 MPa | Mono-sheet | 270 mm × 10 m |
MW or MS? Both cover the same nominal pressure range, but their film construction differs. Specify the required grade when ordering. HHS is intended for continuous-pressure measurement according to the manufacturer’s instructions.
Applications for contact pressure inspection
| Application | What to examine |
|---|---|
| Press platens and tooling | Compare contact patterns across the working area when investigating uneven loading. |
| Rollers and nip contact | Inspect the contact impression across the roller width under defined test conditions. |
| Gaskets and flange faces | Examine compression patterns and areas of incomplete contact. A film impression alone does not confirm leak-tightness. |
| Clamping and fixtures | Compare pressure distribution at gripping or locating surfaces during setup. |
| Component assembly | Investigate contact between mating parts and compare impressions before and after adjustment. |
Product illustrations and reference images
The existing illustrations below are retained for reference. Older graphics may show an earlier product selection; use the grade table above and the instructions supplied with the selected film for specification and use.
Prescale film reference illustration. Refer to the grade table above for the standard selection.
Additional Prescale reference information. Film selection depends on the measurement conditions.

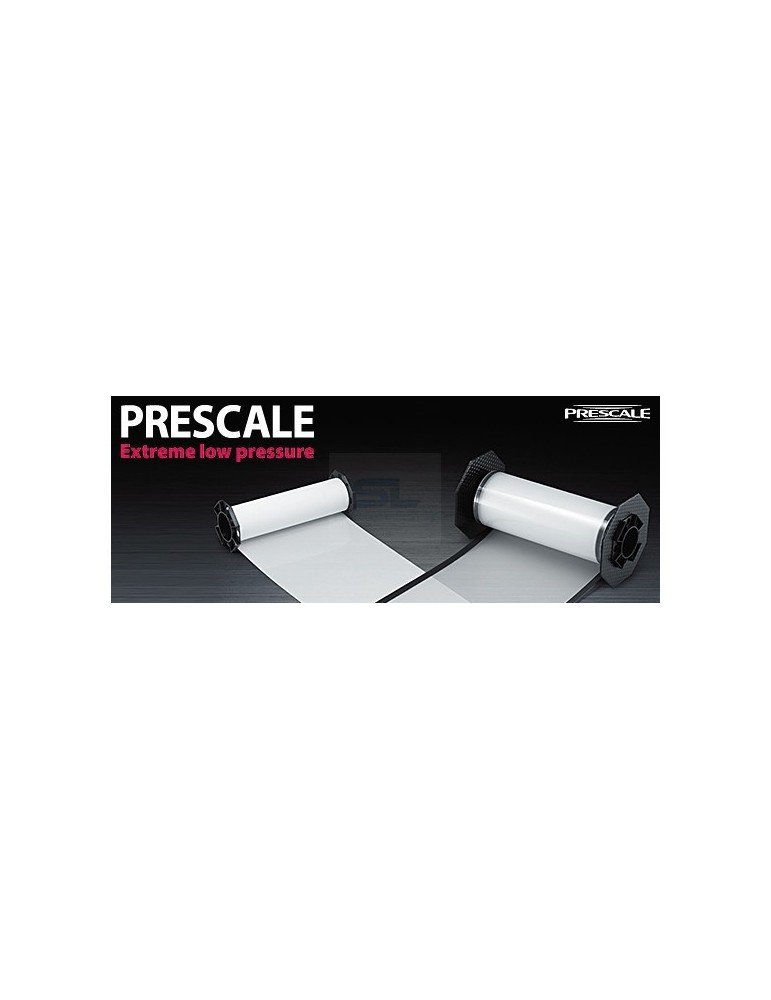

Prescale pressure measurement film — reference image 1.
Prescale pressure measurement film — reference image 2.
Prescale pressure measurement film — reference image 3.
Select the right film for your measurement
Do not select Prescale solely from a machine’s hydraulic or pneumatic gauge reading. The pressure acting at the contact surface also depends on the applied force and actual contact area.
For heated equipment, provide the surface temperature and exposure time before choosing a film. Standard Prescale should not automatically be assumed suitable for a hot-press application.
Reveal contact pressure and uneven loading with FUJIFILM Prescale pressure measurement film. The film develops a red impression where pressure is applied, helping you inspect the contact pattern between mating surfaces.
- Pressure range: Nine standard grades covering 0.006–300 MPa.
- Applications: Roller contact, press platens, clamping, assembly and gasket contact checks.
- Film construction: Two-sheet and mono-sheet types, depending on the selected grade.
- Selection: Choose according to expected contact pressure, temperature, humidity and loading duration.
