Original Dickson circular chart paper for compatible Dickson chart recorders.
- Chart sizes: 3", 4", 6" and 8".
- Recording periods: 5-hour, 8-hour, 12-hour, 24-hour, 7-day and 31-day options.
- Packing: 60 sheets per pack.

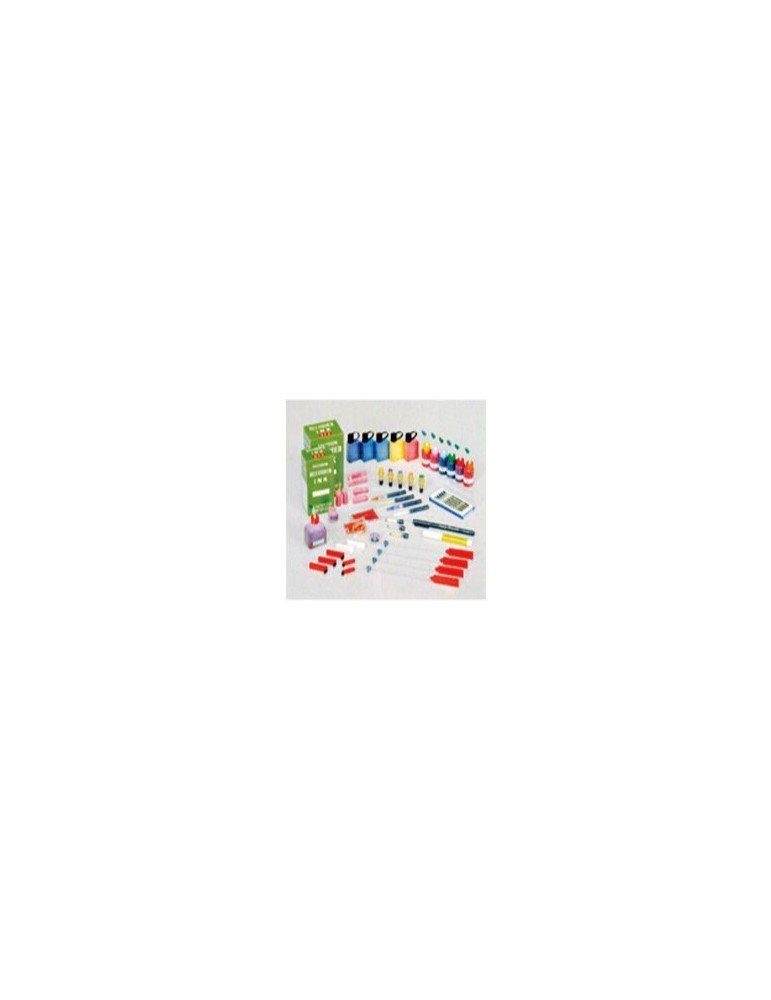

Chart Recorder Pens, Ink Ribbons & Thermohygrograph Cartridges
:
Find replacement recording pens, ink ribbons and cartridge pens for chart recorders and thermohygrographs. Match the consumable to the instrument model, existing part number and required ink colour.
- Recorder brands: Yokogawa, Chino, Dickson, Sekonic and ABB Kent.
- Thermohygrograph enquiries: Sato, Isuzu and Hisamatsu.
- Consumable options: Pens, ribbon cassettes, recording heads and refill ink, depending on the instrument.
- Identification: Use the references below or provide photographs of the existing consumable and instrument nameplate.
A replacement chart recorder pen or ink ribbon must match the recorder mechanism as well as the required colour. The shape of the cartridge, mounting arrangement and complete part number help identify the correct item.
SL Process Measurement supplies recording consumables for a range of chart recorders and thermohygrographs. Use the reference tables below when enquiring about replacement pens, ribbon cassettes, recording heads or refill ink.
Choosing the correct recording consumable
| Consumable | Details to confirm |
|---|---|
| Recorder pen or cartridge pen | Recorder model, pen reference, ink colour, mounting shape and recording channel. |
| Ink ribbon or ribbon cassette | Complete cassette reference, recorder model and required colour arrangement. |
| Recording head | Instrument model, existing head reference and photographs of the installed assembly. |
| Refill ink | Ink specification and confirmation that the installed pen is designed to be refilled. |
Yokogawa recorder consumable references
The following references are retained from our existing listing. References shown together are an identification starting point; confirm the complete code and recorder compatibility before ordering.
| Listed reference | Associated reference or selection note |
|---|---|
| D47372 | B9901AX |
| D47374 | B9906JA |
| D47375 | Provide the recorder model and existing consumable label. |
| D47377 | 4612712-001 — confirm the exact digits on the original packaging. |
| F51741 | B9586X* — the asterisk represents an incomplete reference; provide the full suffix. |
Ribbon identification: Yokogawa lists B9901AX as a six-colour ribbon cassette for the dot-printing version of the µR10000, and B9906JA for dot-printing µR20000 models. Confirm the recorder version when requesting either cassette.
Chino recorder consumable references
Provide the full reference, including every digit after the hyphen. Similar-looking codes should not be treated as interchangeable.
| Reference family | Listed part numbers |
|---|---|
| 22010 | 22010-425301 22010-425302 22010-425303 |
| 22019 | 22019-425301 22019-425302 22019-425303 |
| 22023 | 22023-039003 |
| 22025 | 22025-425314 22025-425317 22025-425331 |
Dickson chart recorder pens
| Part number | Colour | Pack contents |
|---|---|---|
| P222 | Red | 6 red pens |
| P226 | Blue | 6 blue pens |
| P246 | Mixed red and blue | 3 red pens and 3 blue pens |
Include your Dickson recorder model and the colour used for each recording channel. Pack colour alone does not establish compatibility with every Dickson instrument.
Sekonic recorder consumable references
The complete unique reference list is provided below. Letter suffixes and leading zeros form part of the identification and should be included in your enquiry.
| Reference group | Listed part numbers |
|---|---|
| HE and numeric references | HE13 881Y224 881Y225 8803 |
| T00 references | T00224 T00252 T00387 T00388 T00389 T00745 T00887 T00888 T00889 T00890 T00891 |
| T01 references | T01157 T01158 T01645 T01646 T01797 T01950 |
| T02 references | T02371 T02372 T02373 T02799 |
| T09 references | T09533 |
| T52 references | T52985 T52986 |
| T55 references | T55030 T55568 T55568 E T55929 |
| T56 references | T56155 T56156 T56184 C T56185 D |
| T58 references | T58100 T58101 T58102 T58103 |
| T65 references | T654590B T656520B T65653 |
Some references relate to older instruments. Please provide the recorder model, the original consumable reference and photographs so availability and the appropriate replacement can be checked.
Pens for Isuzu, Sato and Hisamatsu instruments
The entries in this table identify instruments or instrument families, not pen part numbers. Match the actual cartridge to the instrument before ordering.
| Brand | Instrument models and families | Information to provide |
|---|---|---|
| Isuzu | TH-22 TH-25 / TH-25R TH-27 / TH-27R 3-3122 3-3126 3-3127 |
Instrument nameplate, existing cartridge shape, colour and any packaging reference. |
| Sato | Barograph MiniCube NSII-Q Rotona Sigma II 7210-00 7211-00 |
Full instrument model and the pen reference from the current packaging or instruction manual. |
| Hisamatsu | TN-2500 | Instrument model, existing pen photograph and required ink colour. |
Other recording pen references
| Listed reference | Ordering information |
|---|---|
| F51462 | Confirm recorder model, colour and quantity. |
| F51581 | Confirm recorder model, colour and quantity. |
| F51713 | Confirm recorder model, colour and quantity. |
| F51714 | Confirm recorder model, colour and quantity. |
| F51079 | Confirm recorder model, colour and quantity. |
| 46182712-001 | Provide a photograph of the original label to confirm the complete reference. |
Reference check: Our existing listing contains both 4612712-001 and 46182712-001. These are shown separately because the digits differ; do not assume they identify the same item.
Request pricing or identify an unlisted item
Contact us for pricing and availability. For listed references, older instruments, ABB Kent recorders or a consumable you cannot identify, please include:
- Recorder manufacturer and full instrument model.
- Complete pen, ribbon or cartridge part number.
- Required ink colour or ribbon colour arrangement.
- Quantity required, stating individual pieces or packs.
- Photographs of the existing consumable, packaging and instrument nameplate.
If the label is missing, send clear photographs of the cartridge from the front, side and mounting face. This helps narrow down the correct replacement.
Find replacement recording pens, ink ribbons and cartridge pens for chart recorders and thermohygrographs. Match the consumable to the instrument model, existing part number and required ink colour.
- Recorder brands: Yokogawa, Chino, Dickson, Sekonic and ABB Kent.
- Thermohygrograph enquiries: Sato, Isuzu and Hisamatsu.
- Consumable options: Pens, ribbon cassettes, recording heads and refill ink, depending on the instrument.
- Identification: Use the references below or provide photographs of the existing consumable and instrument nameplate.
4 other products in the same category:
Find the correct Kobayashi recording chart paper for your instrument using the chart number, recorder model and printed scale. Options include roll, fan-fold and rectangular charts for compatible industrial and environmental recorders.
- Applications: Temperature, humidity, pressure, weather and process recording.
- Selection: Match the paper dimensions, feed arrangement, scale and recording period.
- References: Extensive chart-number listings, including Sekonic, Sato and other recorder requirements.
- Identification: A photograph of the existing chart and packaging helps confirm the correct specification.
Original Isuzu chart paper for compatible thermohygrographs and chart recorders.
- Recording periods: Daily, 7-day and 31-day charts.
- Chart references: Multiple references for different Isuzu recorder models.
- Selection: Match the chart reference, recorder model and measuring scale before ordering.
Reveal contact pressure and uneven loading with FUJIFILM Prescale pressure measurement film. The film develops a red impression where pressure is applied, helping you inspect the contact pattern between mating surfaces.
- Pressure range: Nine standard grades covering 0.006–300 MPa.
- Applications: Roller contact, press platens, clamping, assembly and gasket contact checks.
- Film construction: Two-sheet and mono-sheet types, depending on the selected grade.
- Selection: Choose according to expected contact pressure, temperature, humidity and loading duration.
