Palmer Wahl 8″ & 12″ Pressure and Temperature Chart Recorders

Palmer Wahl pressure and temperature chart recorders provide a paper record of measurements over time. Choose an 8-inch or 12-inch recorder with an aluminium or Pelican® case, configured for pressure, temperature or combined recording.

Recording options: Up to three pens, depending on configuration.
Chart drives: Battery-operated, with spring-wound and electric options available.
Installation: Portable and fixed-mount configurations.

Description
Attachments

Create a paper record of pressure or temperature throughout a test or operating period. Palmer Wahl circular chart recorders are available in 8-inch and 12-inch models, with aluminium and Pelican® case options for different installation requirements.

Each recorder is configured to order. Select the measurement ranges, number of recording pens, chart drive and mounting arrangement to match your application.

Choose Your Recorder Configuration

Selection	Available options
Recorder size	8-inch or 12-inch
Measurements	Pressure, temperature or combined pressure and temperature
Case	Die-cast aluminium or Pelican case
Recording pens	Up to three, depending on the selected configuration
Chart drive	Battery-operated; spring-wound and electric alternatives available
Measurement ranges	Selected for each pressure or temperature recording element

Confirm the complete configuration before ordering. Case style, mounting arrangement and measurement options must be selected together.

Aluminium or Pelican Case?

Case type	Construction and options	Mounting styles

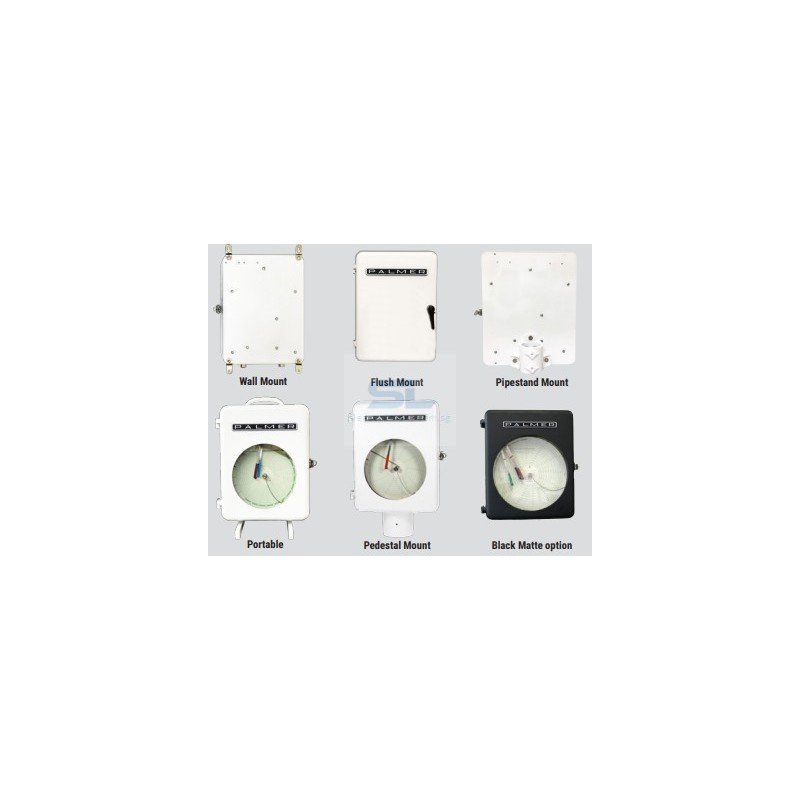

Aluminium	Heavy-duty die-cast case with a corrosion-resistant finish.	Wall, flush, pipestand, portable or pedestal, subject to configuration.
Pelican	Protective case with carrying handles and a portable configuration suited to movement between locations.	Wall, pipestand or portable.

Pedestal mounting is not available for combined pressure-temperature recorders in the aluminium range. Check mounting dimensions and connection positions against the installation space.

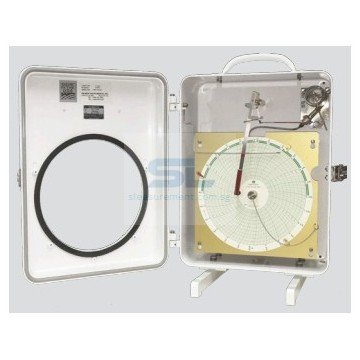

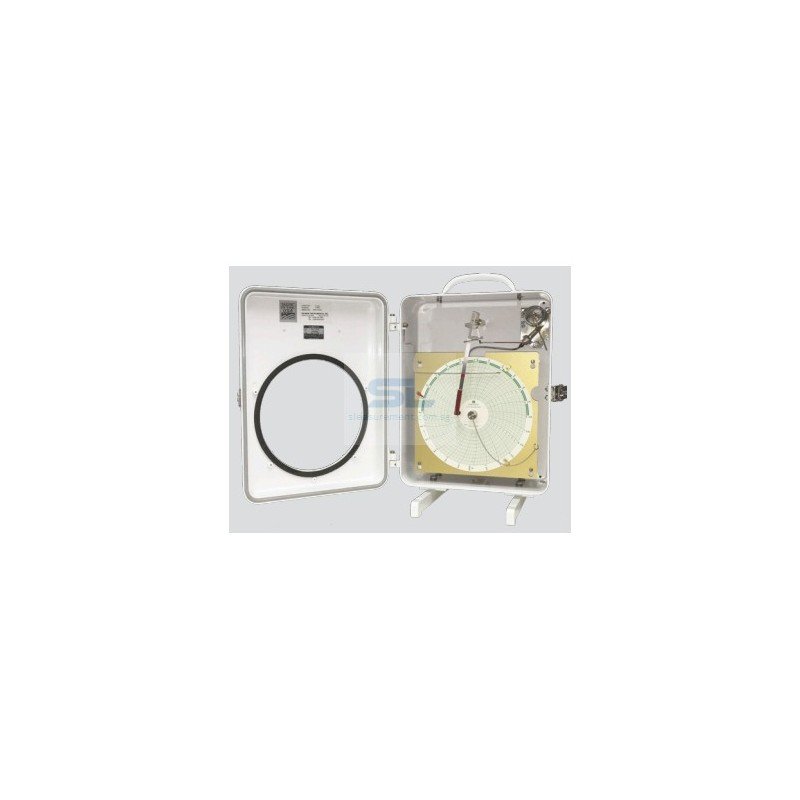

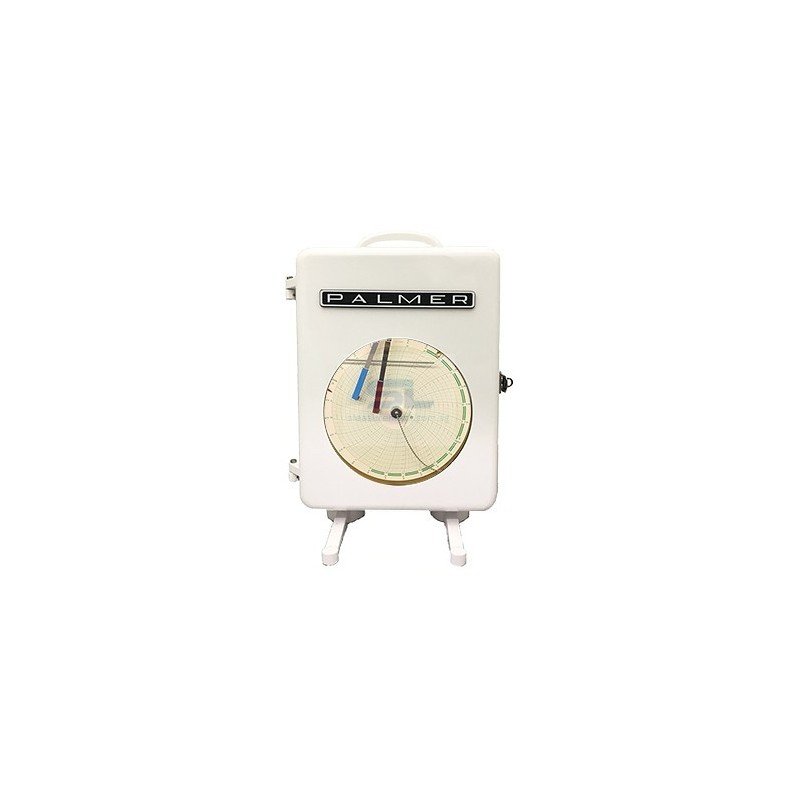

Palmer Wahl pressure and temperature chart recorder specification illustration

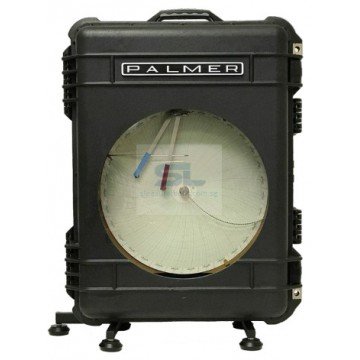

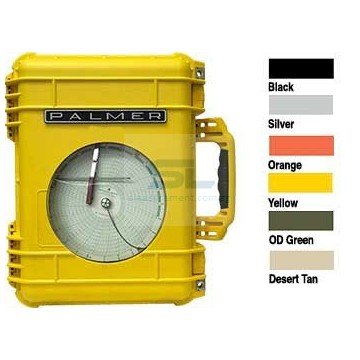

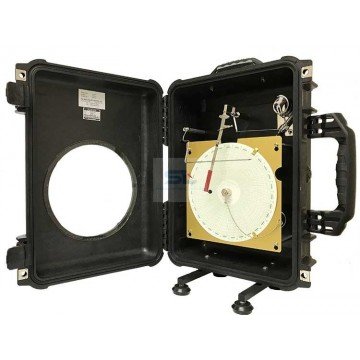

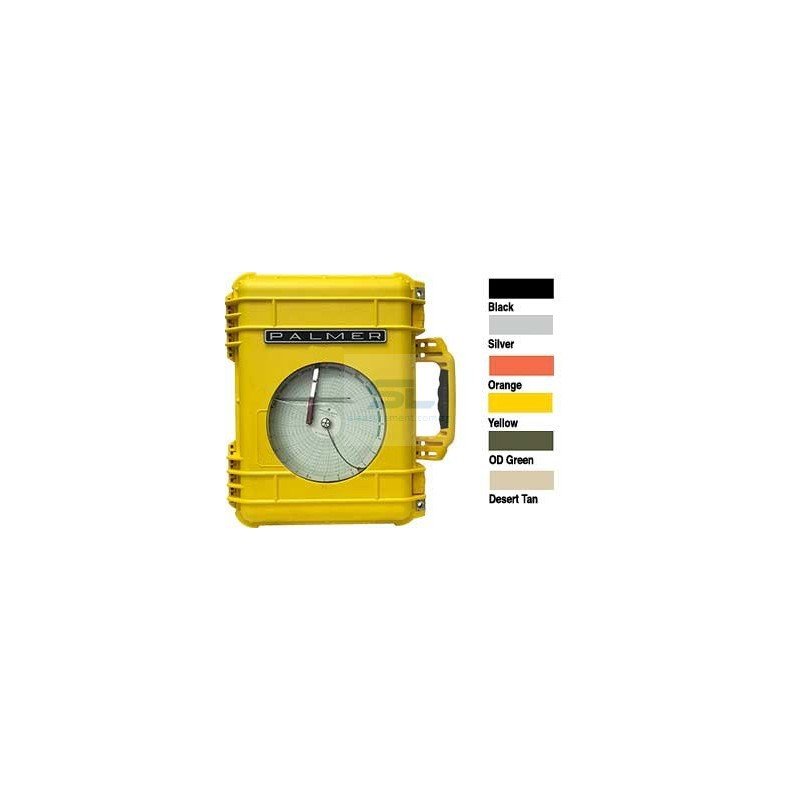

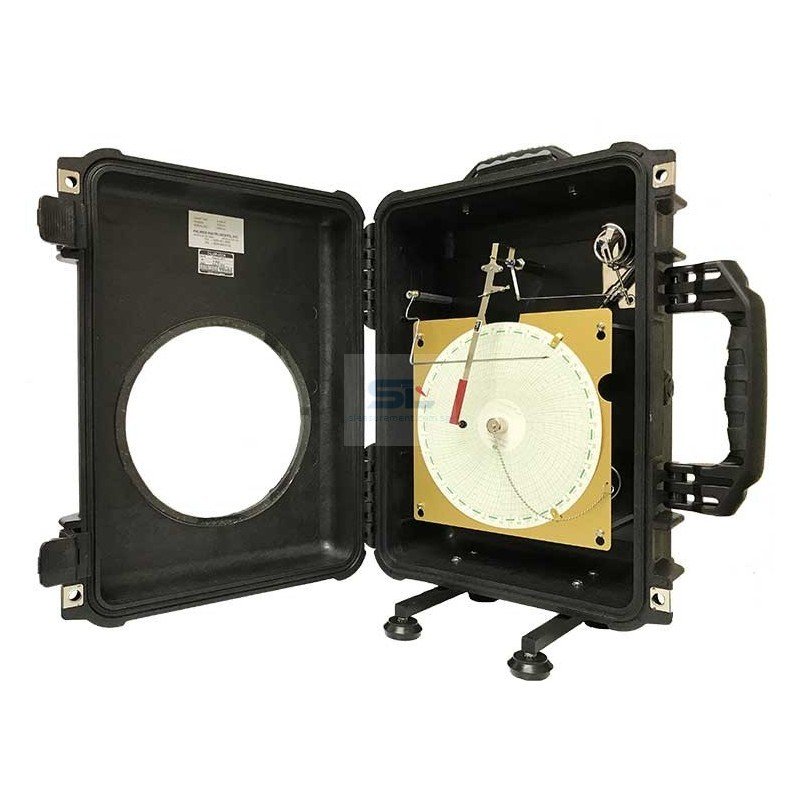

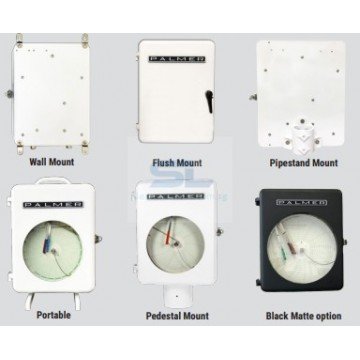

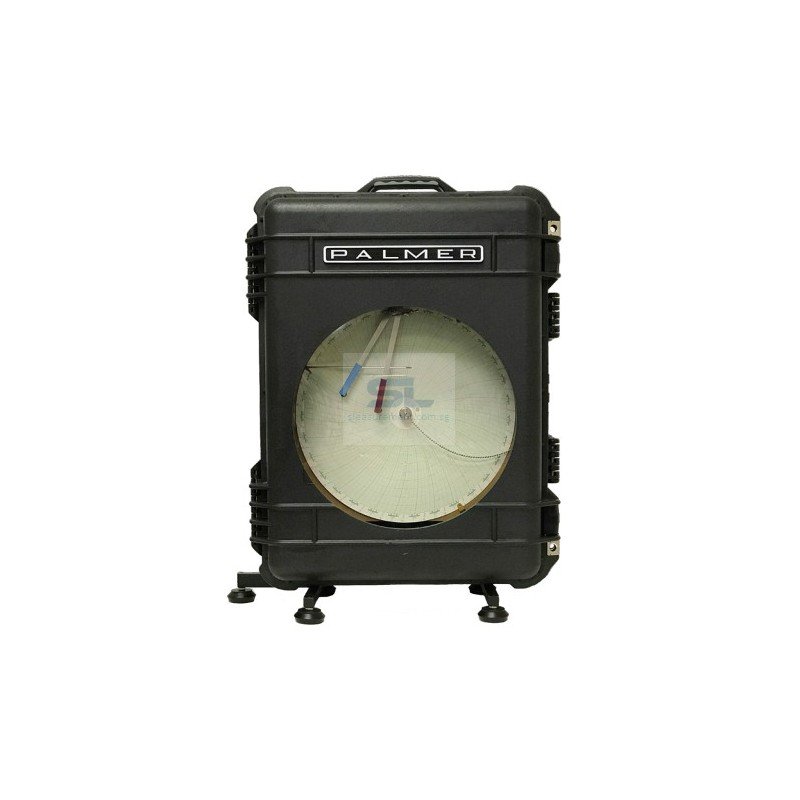

Palmer Wahl Pelican case chart recorder styles

Specify the Pressure Range and Connection

For a pressure recorder, provide the normal operating pressure, maximum test pressure and required chart units. Also identify the process medium and connection arrangement so the pressure element and fittings can be selected appropriately.

The catalogue lists pressure ranges in units including PSI, bar and kPa. Connection requirements vary with the selected pressure range; high-pressure configurations require suitable high-pressure fittings.

When replacing an existing recorder, send a photograph of its nameplate and a sample chart. Include the existing connection size and thread type to help identify the required replacement configuration.

Palmer Wahl chart recorder pressure specifications and selection details

Temperature and Combined Recording

If temperature recording is required, specify the measurement range, sensing-bulb arrangement and capillary length. For combined recording, identify which measurement is required on each pen.

Consider the distance between the measurement point and the recorder, the available mounting space and how the sensing element will connect to the process.

Palmer Wahl temperature chart recorder range options

Match the Chart Drive to the Recording Period

Choose the chart rotation period around the test duration or reporting interval. A short test and a week-long operating record require different time scales.

Battery-operated multi-speed drives are available. Spring-wound alternatives and special-order electric drives provide additional options. Confirm the selected drive's available speeds and use chart paper with the matching time scale and measurement range.

Planning a Pressure-Test Record

When specifying a chart recorder for hydrostatic testing or another pressure-test procedure, include the required pressure range, test duration and acceptance criteria in your enquiry.

Agree on chart identification, calibration documentation and how the completed record will be reviewed. These details help ensure the recorder configuration suits the required test documentation.

Replacement Charts and Pens

Include spare chart paper and pens with your equipment enquiry. Matching consumables requires more than the recorder size: provide the chart reference, measurement scale and rotation period.

For an existing instrument, a clear photograph of the chart and pen arrangement helps identify suitable consumables.

Request Pricing for Your Configuration

SL Process Measurement Pte Ltd is based in Singapore and welcomes enquiries from professional buyers.

For a Palmer Wahl chart recorder quotation, please provide:

Measurement: Pressure, temperature or both, with the required range for each pen.
Recorder size: 8-inch or 12-inch.
Case and mounting: Aluminium or Pelican, with the preferred installation style.
Recording period: Required chart rotation time and drive type.
Process details: Medium, connections and any temperature sensing requirements.
Documentation and consumables: Calibration requirements, spare charts and pens.
Order details: Quantity, delivery country and required date.

Use the product enquiry options on this page to send your specification or existing recorder details.
