The Evikon E2418-DF differential pressure transmitter measures small pressure differences in dry, clean air. Connect it to a compatible building management system, PLC or monitoring system for HVAC and room pressure applications.
Monitor small air-pressure differences with the Evikon E2418-DF. The transmitter provides analogue signals and Modbus communication for integration into building services and industrial monitoring systems.
For room pressure monitoring, select a range that covers both the normal pressure difference and expected excursions. For filter or ventilation measurements, check the highest differential pressure expected during operation.
| Application | What to specify |
|---|---|
| Room-to-room pressure monitoring | Normal pressure difference, positive or negative operation, and alarm thresholds required in the receiving system. |
| Cleanroom and laboratory ventilation | Required range, measurement performance and connection to the monitoring or building management system. |
| Air-filter pressure drop | Expected pressure difference with a clean filter and at the planned replacement threshold. |
| HVAC and air-handling equipment | Pressure tapping locations, operating conditions and required analogue or Modbus interface. |
Application suitability depends on the selected range and measurement requirements. Pressure tubing must deliver dry, clean air to the sensor.
| Model | Measurement range | Selection consideration |
|---|---|---|
| E2418-DF-50 | −50 to +50 Pa | For measurements that remain within the narrower pressure range. |
| E2418-DF-500 | −500 to +500 Pa | For installations requiring a wider differential pressure range. |
The analogue output scale can be configured within the selected model's measurement range. Specify the required lower and upper scale values when ordering.
| Item | Specification |
|---|---|
| Measured medium | Dry, clean air without dust, oil, mist or aggressive compounds |
| Sensing method | Thermal microflow |
| Resolution | 0.1 Pa |
| Zero-point accuracy | ±0.2 Pa |
| Span accuracy | ±3% of reading |
| Analogue outputs | Two outputs, user-selectable as 4–20 mA or 0–10 V |
| Digital interface | RS485 Modbus RTU |
| Power supply | 12–36 V DC standard; 24 V AC option |
| Enclosure | IP65-rated ABS housing for wall mounting |
| Operating conditions | −20 to +80°C; 35–85% RH |
Resolution and accuracy are different specifications. The 0.1 Pa resolution should not be interpreted as ±0.1 Pa measurement accuracy. Review the zero-point and span specifications against the pressure limits you need to monitor.

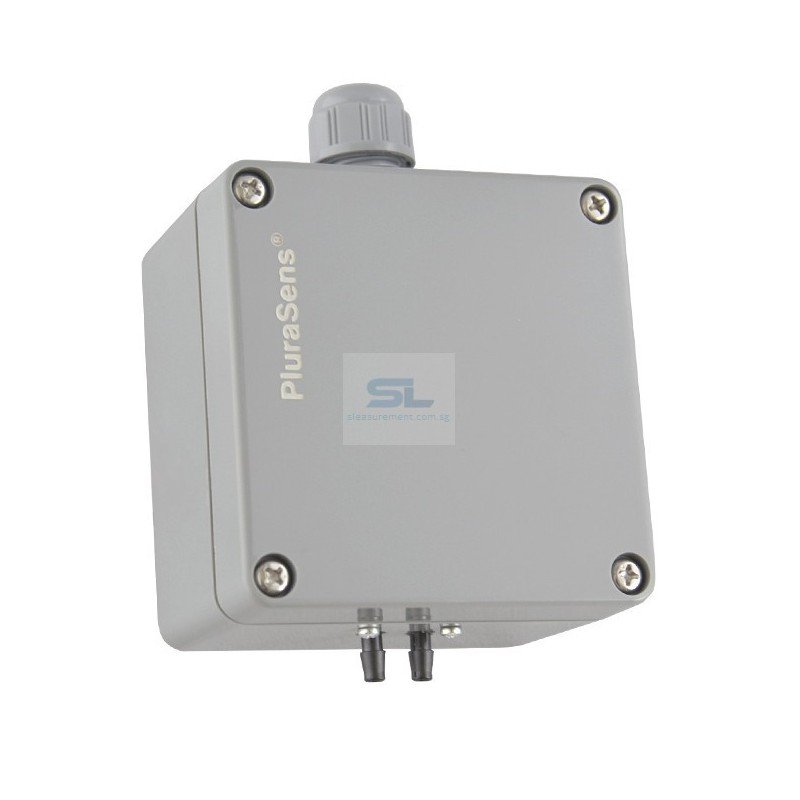

Evikon E2418-DF differential pressure transmitter. Specify the required pressure range and output configuration.
Contact us for pricing and availability. Include the required model or pressure range, application, normal operating pressure difference, output signal, power supply and quantity.
For replacement enquiries, send the existing nameplate photograph and wiring details. For a new monitoring installation, include the receiving controller or system model and any calibration documentation requirements.
|
Download |
The Evikon E2418-DF differential pressure transmitter measures small pressure differences in dry, clean air. Connect it to a compatible building management system, PLC or monitoring system for HVAC and room pressure applications.
Anritsu Low Temperature Probe BR Series probes are ideal for measuring temperature inside of freezer, refrigerator, incubator or drying oven.
Specific components may be combined to customize products for the needs of a customer's specific application.
The Sato SK-270WP-K waterproof digital thermometer replaces the SK-250WP for routine temperature checks in food preparation, production and laboratory work.
KOFLOC thermal mass flow meters and controllers measure or regulate gas flow in laboratory equipment, gas supply systems and industrial processes. Select a mass flow meter for measurement, or a mass flow controller for automatic regulation to a setpoint.
The Anritsu ACS II series provides controlled temperature sources for calibrating and checking contact temperature probes. Choose a dedicated surface calibrator, an internal probe calibrator or a combined system to suit your measurement work.
Anritsu CS series probes are small surface temperature sensors designed to measure the temperature of stationary surface.Specific components may be combined to customize products for the needs of a customer's specific application.
EDL's Comparison Cryostat Calibrator (CRYO-CAL-2) is the most trusted cryogenic calibration device available on the market. This passively cooled cryostat allows the user to safely and affordably calibrate a range of temperature measurement devices from 77K (-196 °C) up to 0 °C.

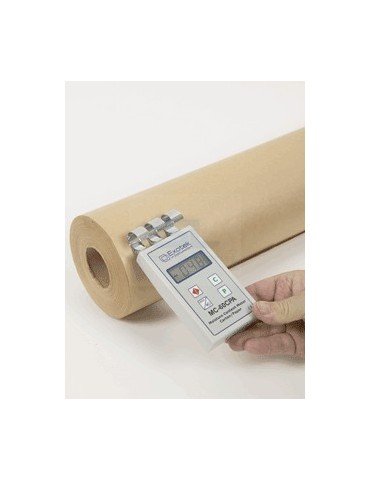

Check moisture in paper and cardboard without puncturing the material using the Exotek MC-60CPA pinless moisture meter. Place the sensor against the surface for quick checks on suitable paper rolls, stacks and reams.
