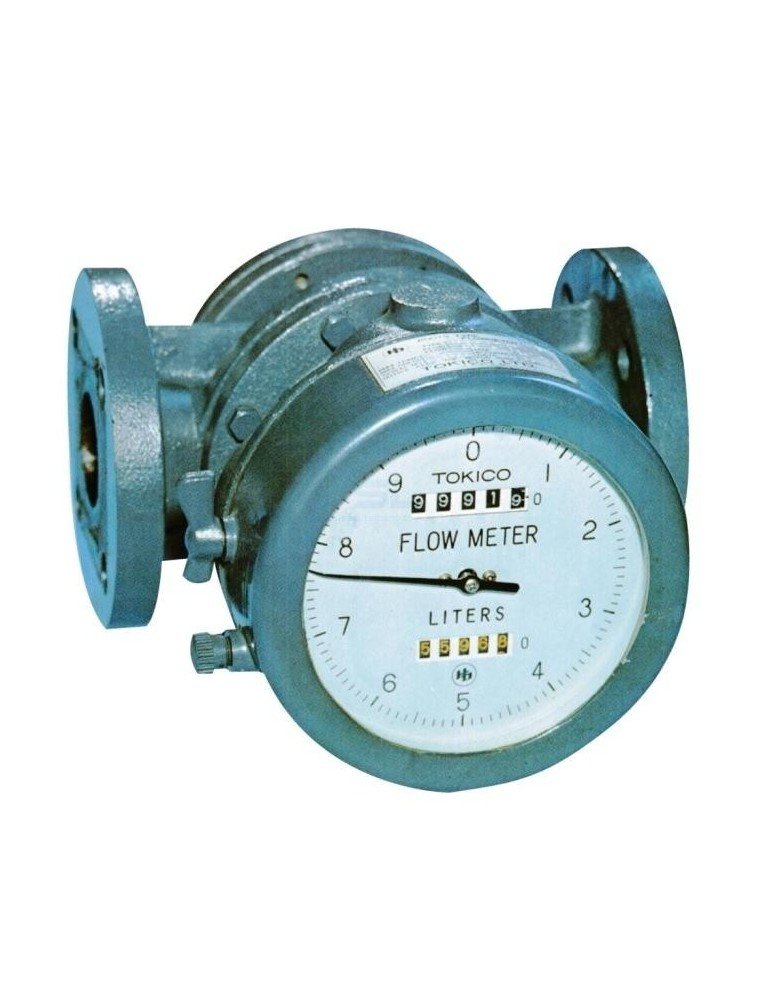

Tokico Positive Displacement Oil Flowmeter – Diesel, Heavy Oil & Crude Palm Oil (CPO)

Record oil delivered, transferred or supplied to equipment with a Tokico positive displacement oil flowmeter. A mechanical totaliser provides a local volume reading for operators checking fuel usage, tank transfers and individual deliveries.

The range covers small fuel lines through to larger oil-transfer duties. Selecting the right meter requires the actual flow conditions and oil properties, rather than pipe diameter alone.

Applications for diesel and oil measurement

• Diesel and light oil: Fuel transfer, day-tank filling and equipment fuel-supply monitoring.
• Kerosene: Volume measurement in compatible storage and distribution arrangements.
• Heavy oil: Boiler and process-fuel applications with a suitable temperature and viscosity configuration.
• Other oils: Application-specific selection after checking fluid properties and wetted materials.

For fuel systems with a return line, a meter on the supply line records supplied volume. Calculating net consumption requires the returned fuel to be accounted for as well.

Compare the Tokico model families

These are family-level selection ranges, not the operating range of every meter. Detailed capacity variants may use different connection sizes or flow limits. Confirm the full model code, oil viscosity, rotor material and continuous or intermittent duty before ordering.

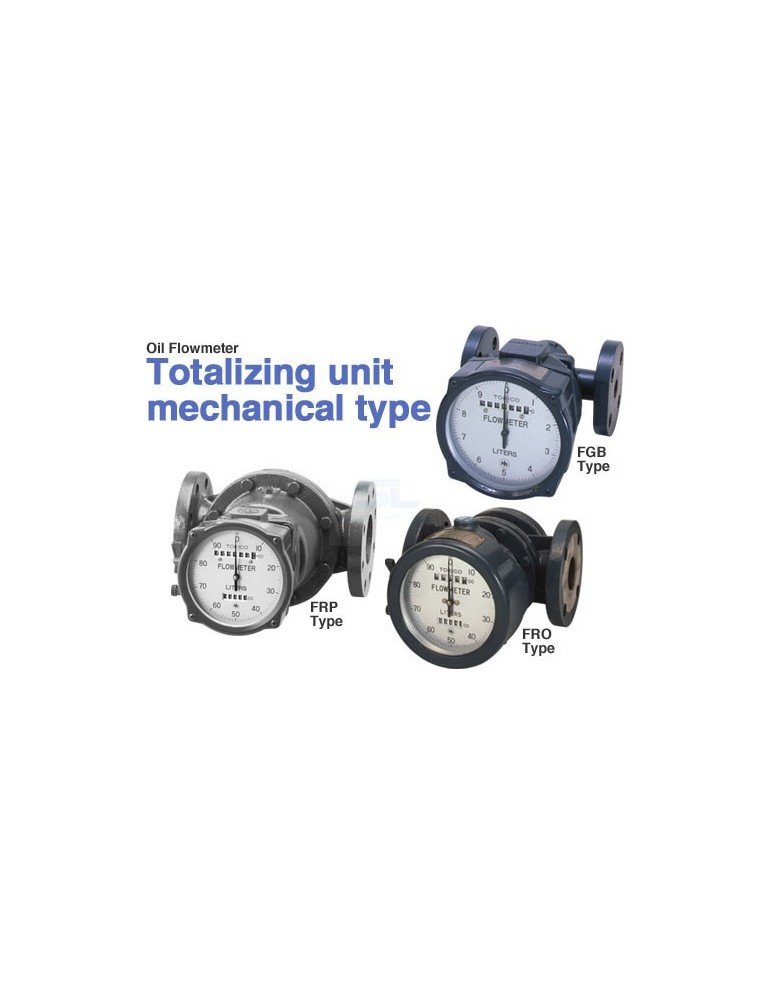

Tokico oil flowmeter model references

Use the following model references to identify an existing Tokico FGB, FRO or FRP oil flowmeter. Counter options and ordering codes vary by version. For replacement enquiries, provide the complete nameplate code so the specification can be checked.

FGB models — current and replacement references

Replacing a Tokico FGB-00X flowmeter? The older 00X totalising-counter version has been replaced by 02X. The 04X version provides a reset counter in addition to the totaliser. Send the existing meter's complete model code and nameplate photograph so the replacement specification can be checked.

The FGB references above cover small oil-metering installations. Confirm the required counter version and operating flow range for the actual oil, viscosity and temperature.

FRO models — 40 and 50 mm

These FRO ordering references are retained for identification of existing installations. Send a clear nameplate photograph when requesting a replacement, particularly where the letter O and numeral 0 may be difficult to distinguish.

FRP models — 80 and 100 mm

Different capacity codes are not automatically interchangeable. For example, FRP0845 and FRP0847 share an 80 mm connection size, while FRP1051 and FRP1052 share a 100 mm connection size. Confirm the required capacity and operating conditions before selecting a replacement.

FRA models — 150 mm / 6 inches

The Tokico FRA series covers larger oil-transfer duties. Request the appropriate complete ordering code using the required flow range, oil properties, connection standard and counter arrangement.

Contact us for model matching, pricing and availability. Include the complete model code, nameplate photograph and operating details. References listed here support identification; availability and the final supply specification require confirmation.

How positive displacement measurement works

The measuring chamber and rotors divide the passing liquid into known volumes. Rotor movement drives the counter, allowing the meter to accumulate the volume passing through it.

FGB models use a gear-type mechanism. The roots-type models use paired rotors that rotate without contacting each other, helping reduce rotor wear and pressure loss.

The mechanical totaliser measures accumulated volume. If you also need an instantaneous flow-rate display or electronic integration, specify those functions separately.

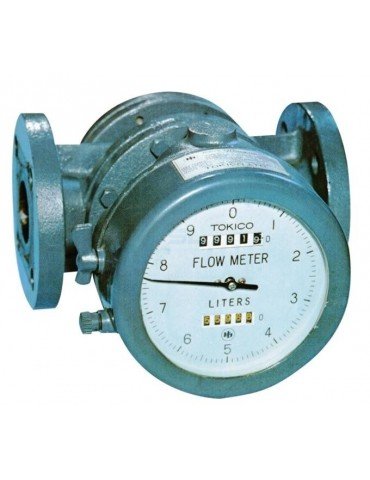

Tokico oil flowmeter reference. Confirm the model, counter and connections for the required installation.

Accuracy and operating conditions

Standard accuracy is typically ±0.5% within the specified conditions. Selected configurations offer ±0.2%; this must be confirmed for the required model and application.

The permissible flow range changes with oil viscosity, rotor construction and operating duty. A maximum intermittent rating should not be treated as the continuous operating capacity.

Pressure and temperature limits also vary by model. For heated oils, provide both normal operating and start-up conditions so the meter can be checked across the expected operating cycle.

Mechanical counters and electronic alternatives

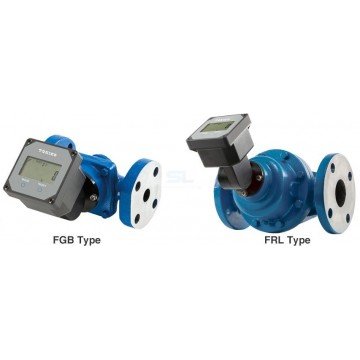

Compare the Tokico electronic oil flowmeter for diesel, heavy oil and CPO applications when planning remote monitoring or a digital display.

Crude palm oil and heated-oil enquiries

For crude palm oil (CPO), request an application check before choosing a model. Provide the oil temperature, viscosity at that temperature, expected solids content and minimum start-up temperature.

A meter selected for diesel should not automatically be used for CPO. The measuring element, seals, temperature rating and pressure loss need to suit the actual oil and operating conditions.

Ordering and replacement information

Contact us for pricing and availability. Include:

• Oil type and viscosity at the operating temperature.
• Minimum, normal and maximum flow rates, with units.
• Continuous or intermittent operating duty.
• Operating pressure and temperature.
• Pipe size, flange standard and flow direction.
• Totaliser, reset-counter or signal-output requirements.
• Required quantity and any calibration documentation requirements.

For an existing Tokico meter, send photographs of the nameplate, counter and connections. Include the complete model code so the capacity, installation dimensions and counter arrangement can be matched.
