Tokico Electronic Oil Flowmeter – Diesel, Heavy Oil & Crude Palm Oil (CPO)

:

Tokico electronic positive displacement flowmeters measure oil volume with a local digital display and optional signal outputs. Select the appropriate configuration for diesel, light oil, heavy oil, lubricants or crude palm oil (CPO).

  • Measurement: Positive displacement principle with nominal accuracy of ±0.5% within the specified operating conditions.
  • Local indication: Electronic display for convenient reading at the meter.
  • System connection: Pulse, analogue and alarm functions depend on the selected counter configuration.
  • Model selection: Match the flow range, viscosity, temperature, pressure and connection requirements.

For CPO and heated oils: Confirm fluid temperature, viscosity and material compatibility before selecting the meter.

Questions about this product?
Email enquiry WhatsApp us

Measure transferred oil volume with a Tokico electronic positive displacement flowmeter. The digital counter provides local readings of accumulated volume, resettable volume and instantaneous flow. Output options connect the meter to compatible counters, recorders and control systems.

Select the meter for the actual liquid and operating conditions. Diesel, heavy oil and crude palm oil (CPO) applications require different checks for viscosity, temperature, flow capacity and wetted materials.

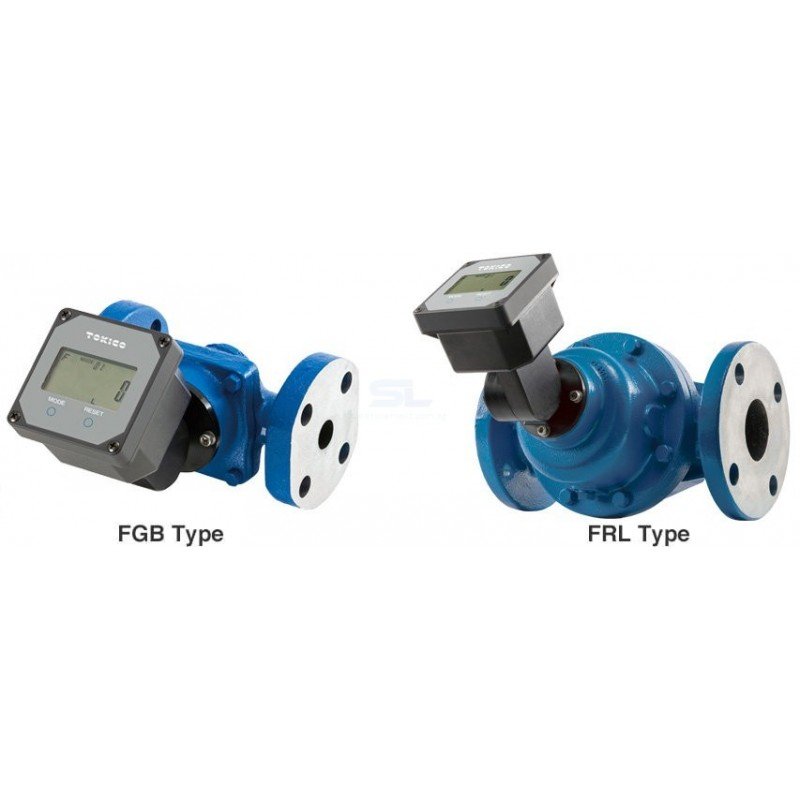

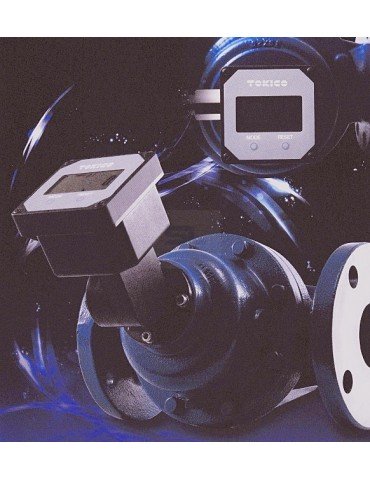

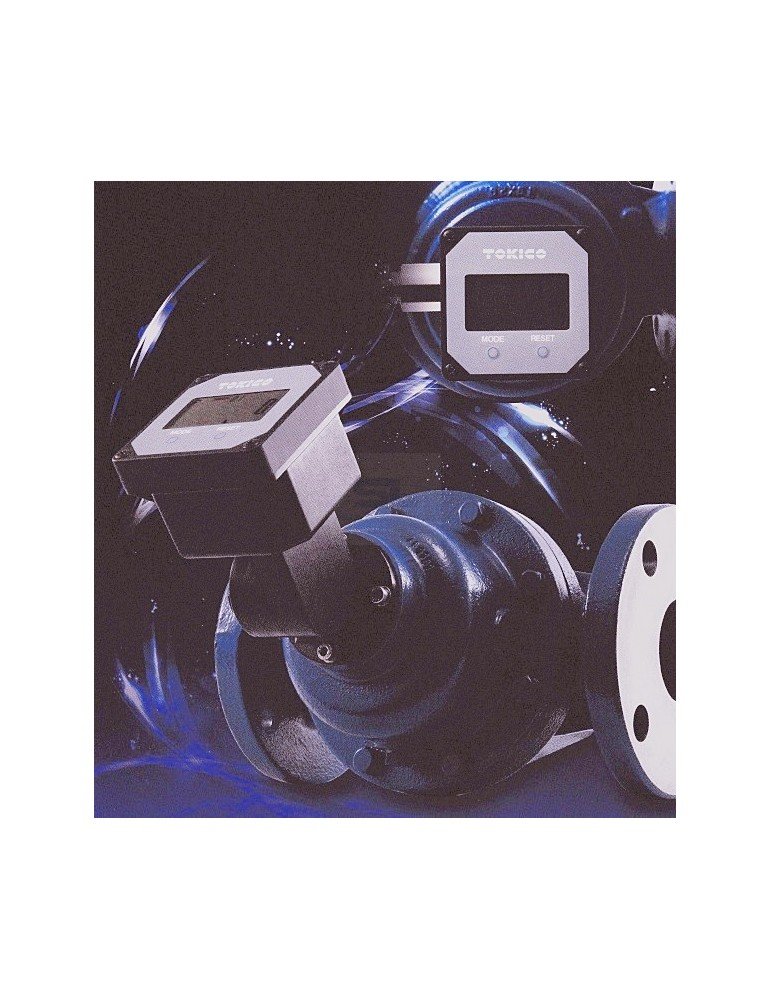

Tokico electronic positive displacement oil flowmeter with digital counter

Tokico electronic oil flowmeter. Meter construction and counter options depend on the selected configuration.

Oil flow measurement by application

ApplicationInformation needed for selection
Diesel and light oil Minimum, normal and maximum transfer rates, operating temperature and daily running hours.
Boiler fuel and heavy oil Oil grade, viscosity at operating temperature, heating conditions and available pressure.
Crude palm oil (CPO) Transfer temperature, viscosity, composition, solids or water content, and cleaning conditions.
Lubricating oil Lubricant grade, working temperature and lowest flow that must be measured.
Existing meter replacement Complete model code, nameplate photograph, connection details and existing display or output requirements.

Tokico electronic oil flowmeter models by size

The older -72X electronic version has been replaced by the 75-series. Choose 75XX for local indication without signal output, 75PX for pulse output, 75XA for analogue output, or 75PA for pulse and analogue outputs.

Size / familyOlder version75XX
No output		75PX
Pulse output		75XA
4–20 mA		75PA
Pulse + 4–20 mA
15 mm / 1/2 inch
FGB		 -72X suffix FGBB423BAL-75XX FGBB423BAL-75PX FGBB423BAL-75XA FGBB423BAL-75PA
20 mm / 3/4 inch
FGB		 -72X suffix FGBB631BDL-75XX FGBB631BDL-75PX FGBB631BDL-75XA FGBB631BDL-75PA
25 mm / 1 inch
FGB		 -72X suffix FGBB835BDL-75XX FGBB835BDL-75PX FGBB835BDL-75XA FGBB835BDL-75PA
40 mm / 1 1/2 inches
FRL		 -72X suffix FRL0438BAA-75XX FRL0438BAA-75PX FRL0438BAA-75XA FRL0438BAA-75PA
50 mm / 2 inches
FRL		 -72X suffix FRL0541BAA-75XX FRL0541BAA-75PX FRL0541BAA-75XA FRL0541BAA-75PA
80 mm / 3 inches
FRL		 -72X suffix FRL0845BAA-75XX FRL0845BAA-75PX FRL0845BAA-75XA FRL0845BAA-75PA
100 mm / 4 inches
FRL		 -72X suffix FRL1051BAA-75XX FRL1051BAA-75PX FRL1051BAA-75XA FRL1051BAA-75PA

Ordering-code note: These references identify the meter body and electronic output configuration. The complete ordering code also includes an attachment suffix, such as -X for no attachment. Confirm the complete code and temperature configuration when ordering.

Replacing a -72X meter? Supply the existing nameplate and full model code. Connection size alone does not confirm interchangeability: capacity, materials, oil service and counter functions must also match. Compatibility for an indicator-only replacement requires a separate check.

Electronic counter and signal options

The Type 75 counter displays total volume, resettable volume and instantaneous flow. Its viewing angle adjusts in 15-degree steps to help operators read the display at the installation.

Output codeFunctionTypical requirement
75XX Local indication without signal output Reading and recording volume directly at the meter
75PX Non-contact pulse output Sending volume pulses to a compatible external counter or PLC
75XA 4–20 mA analogue output Sending a flow-rate signal to a compatible monitoring or control system
75PA Pulse and 4–20 mA analogue outputs Remote volume counting together with flow-rate monitoring

Electrical requirements: Pulse and analogue output operation requires an external 12–24 V DC supply. Specify the required pulse value, analogue flow span and receiving equipment when ordering. Any alarm function must also be confirmed for the selected configuration.

Battery life: The catalogue states approximately 10 years from manufacture, subject to operating conditions. This is not a guaranteed 10-year service period from installation.

Selecting the measuring unit

FGB models use gear-type rotors, while FRL models use roots-type rotors. Both apply positive displacement measurement, but their capacity, materials and operating limits differ.

Specify the lowest and highest flow rates the meter will experience, including start-up and transfer conditions. Confirm whether operation is continuous or intermittent, and provide the viscosity at the actual operating temperature.

Pressure and temperature ratings must be checked against the complete meter specification. Do not apply the maximum rating of one configuration to every model in the range.

CPO and heated-oil applications

For a crude palm oil flowmeter enquiry, provide the normal transfer temperature, minimum start-up temperature and viscosity. Include details of any heating, flushing or cleaning cycle.

Confirm compatibility with the selected wetted materials and seals. A configuration selected for ambient-temperature diesel should not automatically be used for heated palm oil.

If the measurement will be used for sales, receipt reconciliation or reporting in tonnes, state this when enquiring. The required volume or mass basis, density information and documentation can then be reviewed.

Mechanical or electronic indication?

Choose the counter according to how the reading will be used: local inspection, transfer records, remote counting or connection to a monitoring system.

For a mechanical counter arrangement, compare the Tokico mechanical positive displacement oil flowmeter.

Request a model selection and quotation

Contact us for pricing and availability. Include:

  • Liquid name and grade, including CPO composition where relevant.
  • Minimum, normal and maximum flow rates, with units.
  • Operating temperature, pressure and viscosity.
  • Pipe size, connection standard and installation orientation.
  • Daily operating hours and continuous or intermittent duty.
  • Required display, pulse, analogue or alarm functions.
  • Quantity and calibration documentation requirements.
  • Existing model code and nameplate photograph for replacement enquiries.


Download

 PD Electronic Oil Flowmeter - Catalogue (1.18M)
