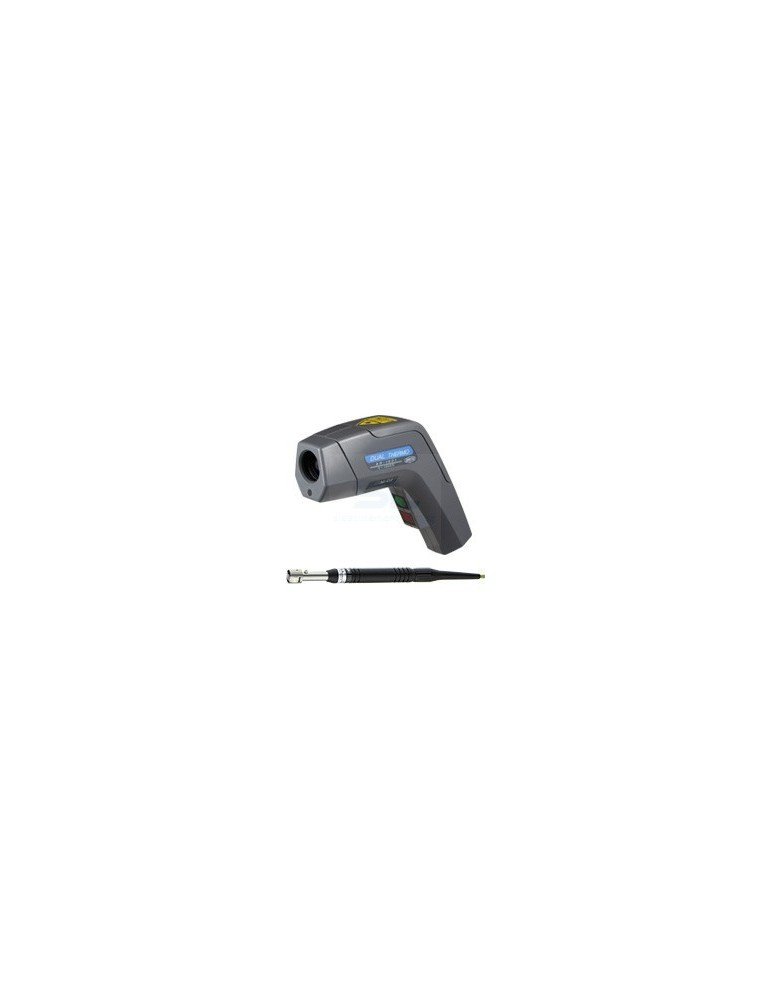

The Anritsu AR-6500 series combines non-contact infrared measurement with a Type K contact thermometer input. Use a compatible contact probe as a reference for automatic emissivity setting.
Check surface temperatures without contact, then use a suitable contact probe when you need a reference reading. The Anritsu AR-6500 series infrared thermometer brings both methods into one handheld instrument for production checks, maintenance and temperature investigations.
Infrared readings depend on the surface being measured and its emissivity. The AR-6500 series supports automatic emissivity setting using a contact-type probe, helping you establish a setting for the target surface.
Select a probe suitable for the material, temperature and surface shape. A reliable reference requires stable contact with the same area being checked by infrared measurement. Contact probes are not included with the instrument.
| Model | Infrared range | Measurement spot at 500 mm | Analog output |
|---|---|---|---|
| AR-6500 | -50.0 to 500.0°C | Ø19 mm | Not provided |
| AR-6501 | -50.0 to 500.0°C | Ø19 mm | 1 mV/°C |
| AR-6500-H | 0 to 1200°C | Ø12 mm | Not provided |
| AR-6501-H | 0 to 1200°C | Ø12 mm | 1 mV/°C |
Choose the measuring distance so the target fills the measurement area. A target smaller than the spot can allow the surrounding surface to influence the result.
| Models | Temperature band | Specified accuracy |
|---|---|---|
| AR-6500 / AR-6501 | -50.0 to -0.1°C | ±3°C ±1 digit |
| AR-6500 / AR-6501 | 0.0 to 250.0°C | ±2°C ±1 digit |
| AR-6500 / AR-6501 | 250.1 to 500.0°C | ±(0.8% of reading + 1 digit) |
| AR-6500-H / AR-6501-H | 0 to 250°C | ±4°C ±1 digit |
| AR-6500-H / AR-6501-H | 251 to 600°C | ±3°C ±1 digit |
| AR-6500-H / AR-6501-H | 601 to 1200°C | ±(0.5% of reading + 1 digit) |
| Input | Type K thermocouple with ANP miniature connector |
|---|---|
| Instrument range | -50.0 to 500.0°C; use within the connected probe's rating |
| Instrument accuracy | ±(0.05% of reading + 0.1°C) ±1 digit |
| Sampling interval | Approximately 300 ms |
These contact specifications apply to the AR-6500. Probe accuracy and contact conditions must also be considered when assessing the complete measurement.
Specify the surface material, temperature range, target size and measuring distance. Include whether you need an analog output and a contact reference probe.
Contact us for pricing and availability. Share your application details so we can help select the model and probe combination.
|
