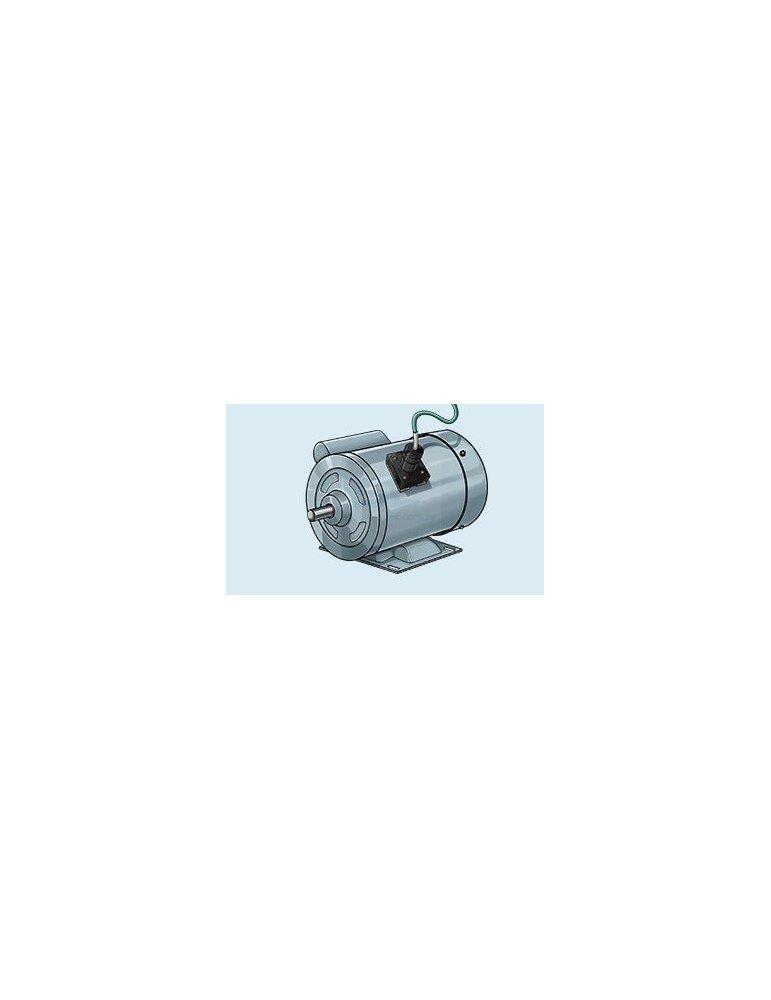

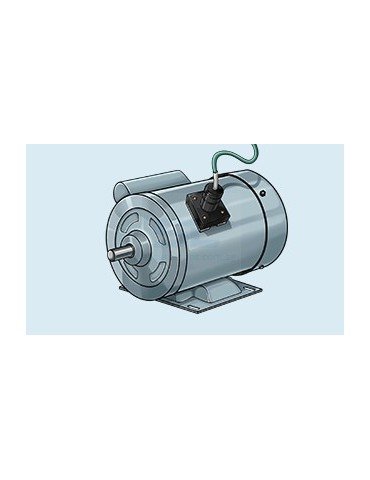

Attach an Anritsu MG Series magnetic temperature probe to a suitable stationary metal surface for contact temperature measurement. Built-in magnets hold the sensing head in position, reducing the need to maintain pressure by hand.
Keep the temperature sensing point against a stationary metal surface with an Anritsu MG Series magnetic surface temperature probe. The built-in magnet holds the head against a suitable target, helping operators take readings without continuously pressing a handheld probe into place.
For equipment surfaces, moulds and other magnetically receptive components, select the head size around the available contact area. Confirm the temperature, surface condition and cable arrangement before choosing the complete model.
Anritsu MG magnetic probes for stationary surface temperature measurement.
All models below can be specified with Type E or Type K thermocouples.
| Model | Head size | Grip | Temperature range | Catalogue magnetic attraction |
|---|---|---|---|---|
| MG-11 | 27 × 32 mm | Without grip | -50 to 250°C | 700 g |
| MG-13 | 27 × 32 mm | With grip | -50 to 250°C | 700 g |
| MG-21 | 14 mm diameter | Without grip | -50 to 250°C | 400 g |
| MG-23 | 14 mm diameter | With grip | -50 to 250°C | 400 g |
| MG-22 | 14 mm diameter | Without grip | -50 to 400°C | 400 g |
| MG-24 | 14 mm diameter | With grip | -50 to 400°C | 400 g |
| MG-33 | 8 mm diameter | With grip | -50 to 250°C | 340 g |
| MG-34 | 8 mm diameter | With grip | -50 to 400°C | 340 g |
| MG-62 | 27 × 32 mm | Without grip | -50 to 400°C | 650 g |
| MG-64 | 27 × 32 mm | With grip | -50 to 400°C | 650 g |
The magnetic-attraction figures are manufacturer reference values. Surface material, coating, roughness, curvature and cable pull can affect retention. Check that the probe sits securely with the sensing element in proper contact.

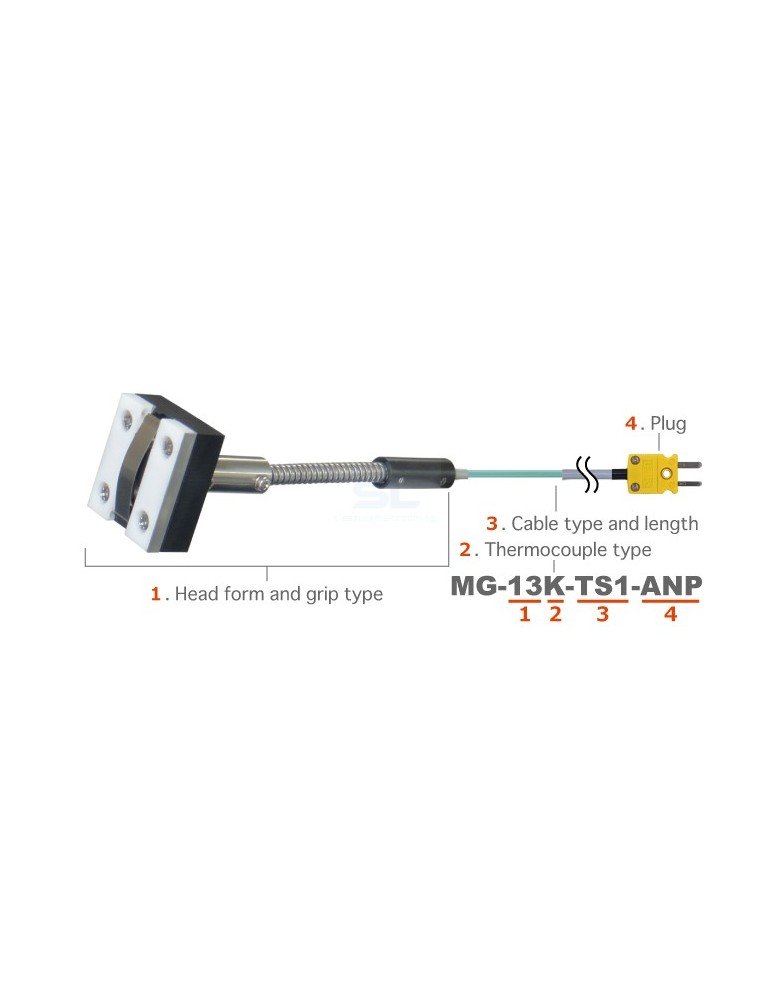

Select the head, grip arrangement, thermocouple, cable and connector. Check older references against the replacement information below.
The following table retains all complete Type E and Type K references previously listed on this page. These configurations use the ANP miniature plug.
| Probe | Type E model | Type K model | Temperature range |
|---|---|---|---|
MG-11  |
MG-11E-TS1-ANP | MG-11K-TS1-ANP | -50 to 250°C |
MG-64  |
MG-64E-GW1-ANP | MG-64K-GW1-ANP | -50 to 400°C |
MG-21  |
MG-21E-TS1-ANP | MG-21K-TS1-ANP | -50 to 250°C |
MG-24  |
MG-24E-GW1-ANP | MG-24K-GW1-ANP | -50 to 400°C |
MG-33  |
MG-33E-TA1-ANP | MG-33K-TA1-ANP | -50 to 250°C |
MG-34  |
MG-34E-GX1-ANP | MG-34K-GX1-ANP | -50 to 400°C |
MG-12 and MG-14 production ended in January 2019, with maintenance support ending in March 2020. Anritsu identifies MG-62 and MG-64 as the successor models.
| Previous model | Replacement model | Selection note |
|---|---|---|
| MG-12E | MG-62E | Confirm cable, connector and installation fit. |
| MG-12K | MG-62K | Confirm cable, connector and installation fit. |
| MG-14E | MG-64E | Confirm the required grip and complete configuration. |
| MG-14K | MG-64K | Confirm the required grip and complete configuration. |
The older model list on this page included MG-11K, MG-12K, MG-21K and MG-22K. MG-12K is retained here for replacement identification; it should not be ordered as a current production model.
For a custom probe based on MG-12 or MG-14, send the complete identification code and photographs. Confirm the replacement configuration before assuming dimensional or electrical interchangeability.
| Surface temperature | Models rated to 250°C | Models rated to 400°C |
|---|---|---|
| -50 to 100°C | ±2.5°C | ±2.5°C |
| Above 100 to 200°C | ±3.1°C | ±3.1°C |
| Above 200 to 250°C | ±4.0°C | ±5.0°C |
| Above 250 to 300°C | Outside range | ±5.0°C |
| Above 300 to 400°C | Outside range | ±7.2°C |
Published tolerance applies to stationary, flat and smooth metal surfaces. The nominal response is two seconds to 99% response under the manufacturer’s surface test conditions.
The durability classification exceeds 50,000 contacts under specified test conditions. It is not a guarantee of service life on every surface.
| Model group | Body material | Guard |
|---|---|---|
| MG-11 / MG-13 | Phenolic resin | Fluororesin |
| MG-21 / MG-23 | Fluororesin | No separate guard listed |
| MG-22 / MG-24 | Polyimide | No separate guard listed |
| MG-62 / MG-64 | Aromatic polyester | Glass-cloth laminate with stainless steel cover |
| MG-33 / MG-34 | SUS303 stainless steel | Model-specific head construction |
Current models are listed as repairable, subject to inspection and service availability.
Match Type E or Type K to the thermometer or data logger input. Confirm whether the instrument requires an ANP miniature plug, ASP standard plug or another termination.
The sensing-head rating does not apply to the whole cable. Standard cable references include TS for MG-11, MG-13, MG-21 and MG-23; GW for MG-22, MG-24, MG-62 and MG-64; TA for MG-33; and GX for MG-34.
For MG-33, the TA cable has relatively high resistance. Confirm compatibility with the instrument’s permitted source resistance, particularly when specifying a longer cable.
Magnetic attachment: Confirm that the actual target material attracts the probe securely. Aluminium, copper and some stainless steels will not provide suitable magnetic retention.
Surface contact: Paint, scale, roughness and curvature can affect both contact and readings. Describe the surface condition when selecting the head.
Cable routing: Leave sufficient slack so the cable does not pull the sensing head away from the target.
Stationary use: For moving or rotating targets, compare the Anritsu U and UX surface temperature probes.
Contact us for pricing and availability. Please include:
|
