Sato TM-27 & TM-29 Non-Contact Countdown Timers

Start a countdown without pressing a button with the Sato TM-27 and TM-29 non-contact timers. Hold your hand over the sensor to begin timing, making them practical for handwashing stations, food preparation areas and repetitive workstation tasks.

TM-27: Set 5–90 seconds in 5-second steps for short, repeated tasks.
TM-29: Set 1 second to 99 minutes 59 seconds in 1-second steps.
Touchless operation: Start the countdown and silence the sounding alarm using the sensor.
Battery operation: Each model uses three AAA batteries.

Description

Keep timed routines moving with Sato TM-27 and TM-29 non-contact countdown timers. Once the required duration has been set, a hand movement over the sensor starts the countdown without touching a start button.

Choose the TM-27 for a short, repeated interval or the TM-29 when tasks require longer durations and finer time settings. Both provide a local timing reminder that staff can use at the point of work.

Choose the right countdown timer

Feature	TM-27	TM-29
Catalogue number	1707-20	1707-30
Countdown range	5–90 seconds	1 second to 99 minutes 59 seconds
Setting increment	5 seconds	1 second
Sensor	Infrared, non-contact	Infrared, non-contact
Detection distance	Approximately 3 cm	Approximately 3 cm above the sensor
End-of-countdown indication	Audible alarm for approximately 5 seconds	Audible alarm, flashing LED and blinking LCD
Alarm sound selection	Standard beep alarm	Three selectable sound patterns
Repeat timing	Returns to the preset duration after the alarm	Repeat function
Power supply	Three AAA batteries	Three AAA batteries
Typical battery life	Approximately one year at 20 uses per day	Approximately one year at 50 uses per day
Body material	ABS resin	ABS resin
Dimensions	114 × 62 × 24 mm (W × H × D)	120 × 62 × 22 mm (W × H × D), excluding protrusions
Weight including batteries	Approximately 110 g	Approximately 130 g

TM-27 for short, repeated timing

The TM-27 / 1707-20 suits a workstation where the same short interval is used repeatedly. Set the duration using the rear button, then start each countdown by holding a hand over the sensor.

After the countdown ends, the alarm sounds for approximately five seconds and the display returns to the preset duration, ready for the next use.

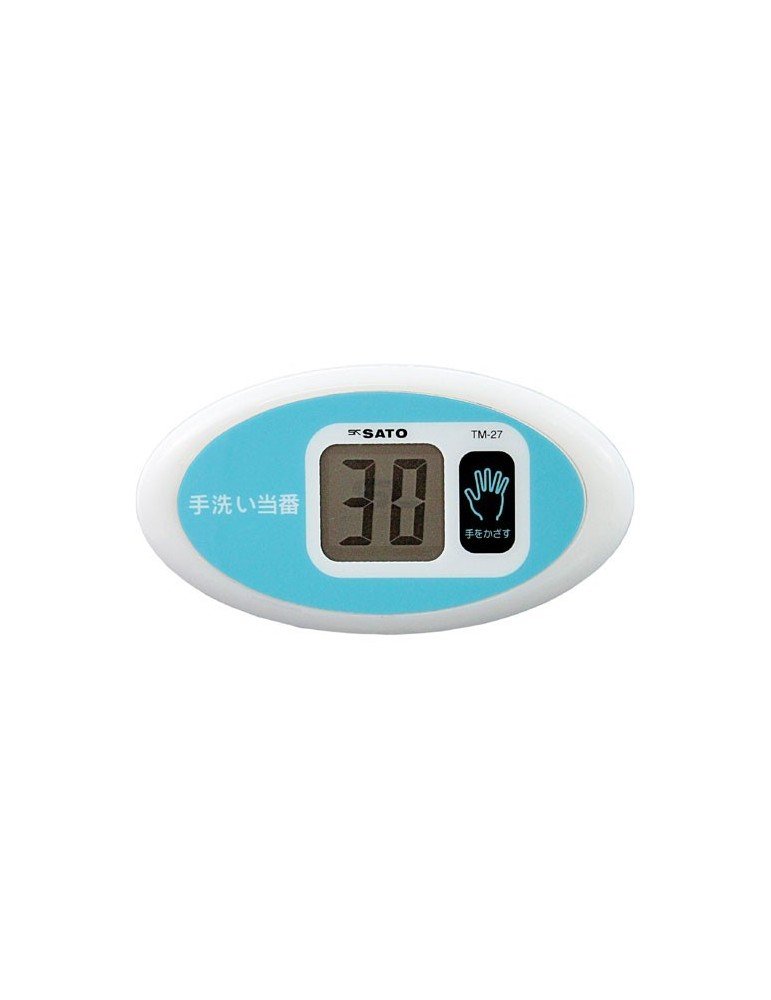

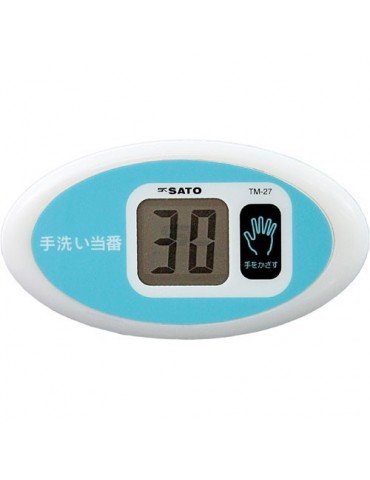

Sato TM-27 non-contact countdown timer 1707-20

Sato TM-27: short countdowns from 5 to 90 seconds.

TM-29 for longer tasks and selectable alarms

The TM-29 / 1707-30 provides a wider setting range for tasks lasting seconds or minutes. Its three selectable alarm patterns help users choose an audible indication appropriate to the workstation, while the LED and LCD also flash when time is up.

The front panel has IPX1 drip protection. This rating applies to the front panel only; it does not make the complete timer suitable for immersion or washdown.

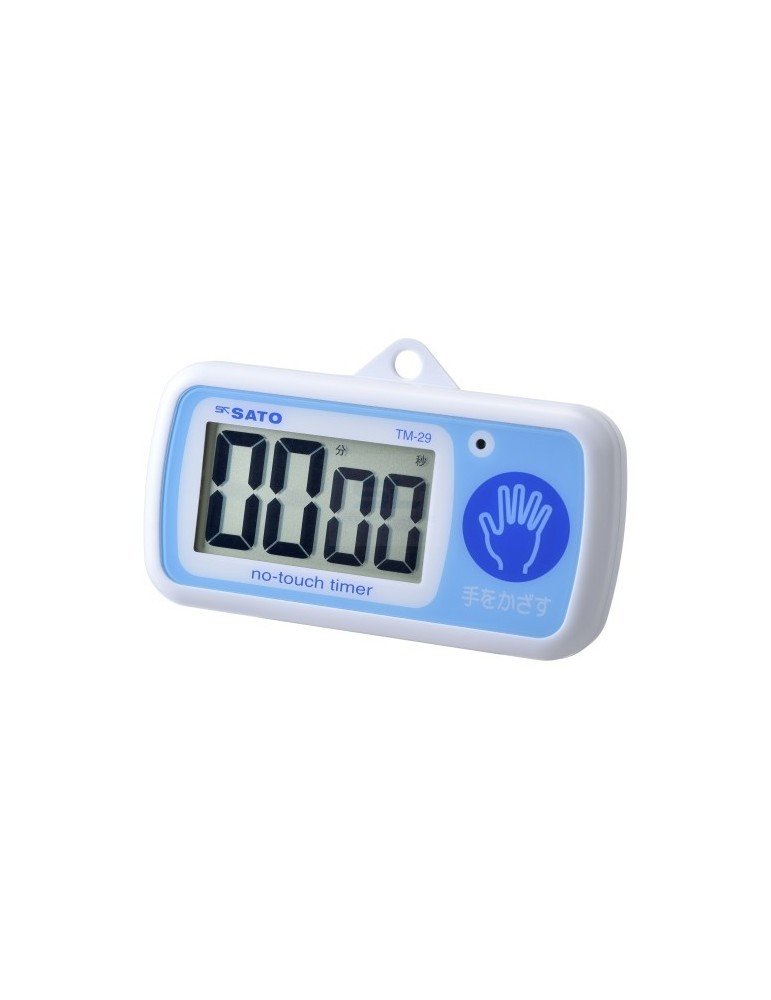

Sato TM-29 non-contact countdown timer 1707-30

Sato TM-29: countdown settings up to 99 minutes 59 seconds.

Sato TM-29 timer operation reference illustration

TM-29 reference illustration for touchless countdown operation.

Timing at the point of work

Handwashing stations: Provide a visible countdown for the duration specified in your workplace procedure.
Food preparation: Start a preset interval without pressing a timer button during the task.
Workstations: Give staff a local reminder for repeated waiting or processing steps.
Training areas: Demonstrate timed routines with a clear display and end-of-countdown alarm.

Select the timer according to the required duration and how staff will see or hear the alarm. The timer supports the routine; it does not verify that the task has been completed correctly.

Placement and supplied accessories

The TM-27 provides a stand and rear magnet, with an adapter plate supplied for installation. The TM-29 offers magnetic mounting, an adapter plate and a hanging hook.

Position the timer where the display is visible and the sensor can be reached deliberately. Keep the sensor area clear and check operation after installation.

Both models are supplied with three AAA batteries, an adapter plate and an instruction manual.

Request pricing and availability

Contact us for pricing and availability. Specify TM-27 / 1707-20 or TM-29 / 1707-30, the quantity required and your preferred countdown duration. For multiple workstations, include the number of installation points and mounting requirements.
