Reference:

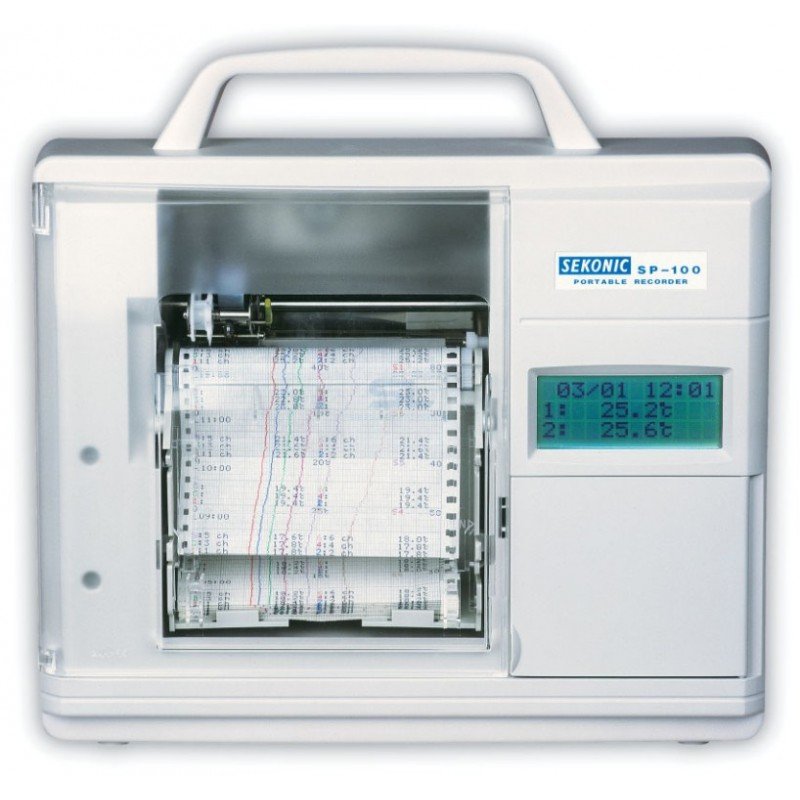

Record up to six measurement points on one paper chart with the Sekonic SP-100 portable hybrid recorder. Configurable inputs support thermocouples, resistance thermometers, DC voltage and current measurement.
Manufacturer-discontinued; offered from remaining stock. The chart gives operators a visible record on site. Temperature sensors, a current-input shunt and the optional memory-card unit must be selected separately as required for your application.
Original
Free Delivery in Singapore (except Sensitive Area)
Local Support
Bring several process signals together on one chart. The SP-100 measures up to six channels and prints their readings on fanfold paper, giving operators a record they can review at the instrument. Its compact enclosure is suited to installations that need a local paper record.
Stock note: Sekonic discontinued production of the SP-100 in March 2022. This store listing is for remaining stock, subject to availability. Check the supplied accessories and the input configuration before placing an order.
| Input | Ordering consideration |
|---|---|
| Thermocouple | Supports types B, E, J, K, R, S and T; select a suitable sensor separately. |
| Resistance thermometer | Supports Pt100 and JPt100 inputs; select a suitable sensor separately. |
| DC voltage | Configure the input range for the signal being recorded. |
| 4–20 mA current | Requires a 250 Ω shunt resistor; confirm whether one is needed for each current-input channel. |
| Model | SP-100 |
|---|---|
| Measurement channels | Up to six |

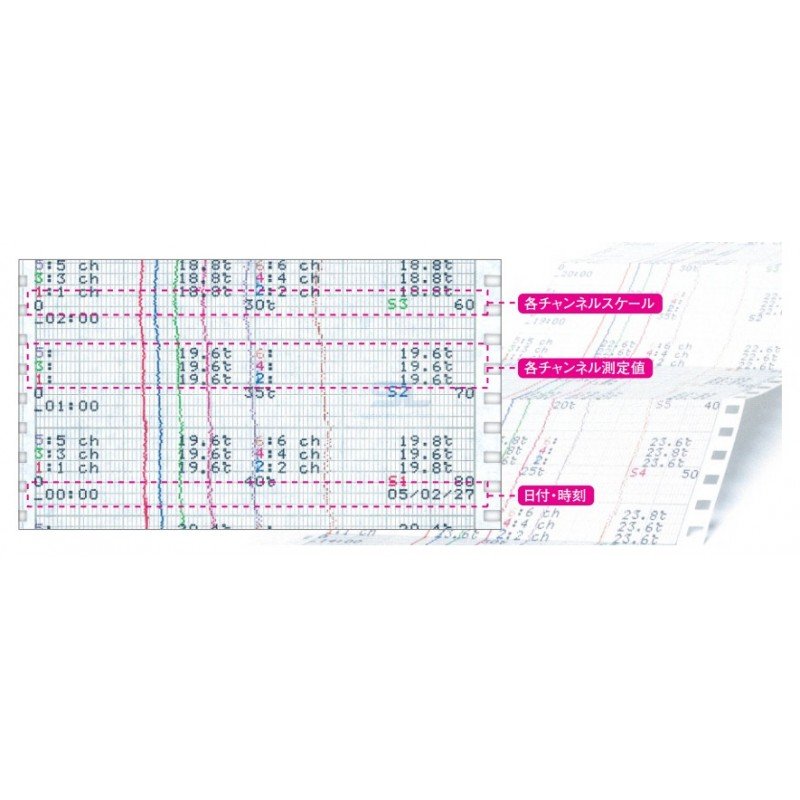

| Chart | Fanfold paper; 100 mm effective recording width, 12 m length |
| Chart speeds | 2.5, 5, 10 or 20 mm/hour |
| Display | LCD |
| Power supply | 100–240 V AC, 50/60 Hz |
| Dimensions | 300 W × 245 H × 120 D mm, excluding protrusions and terminals |
| Weight | Approximately 3.5 kg |
Sekonic identifies HD04 standard chart paper, HD08 clean chart paper and HD12 ink pads for the SP-100. Its memory-card function requires an optional unit; do not assume a memory card is included with the recorder. Confirm the condition and contents of this remaining-stock unit before ordering additional accessories.
For the product overview and catalogue, visit the Sekonic SP-100 main product page →.
|
Download |
