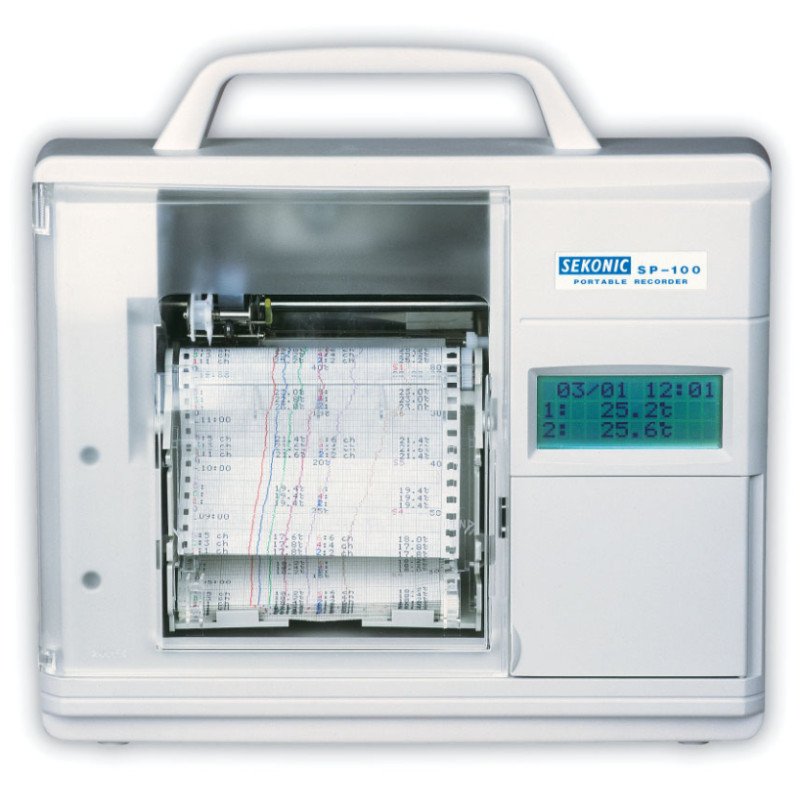

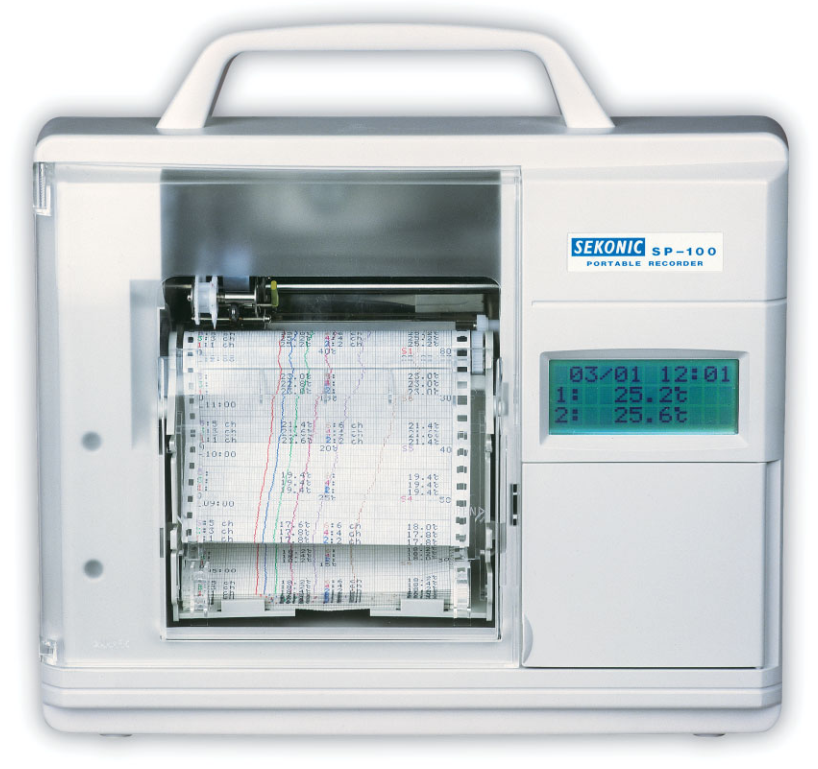

Record up to six measurement points on one paper chart with the Sekonic SP-100 portable hybrid recorder. Configurable inputs support thermocouples, resistance thermometers, DC voltage and current measurement.
Manufacturer-discontinued; offered from remaining stock. The chart gives operators a visible record on site. Temperature sensors, a current-input shunt and the optional memory-card unit must be selected separately as required for your application.

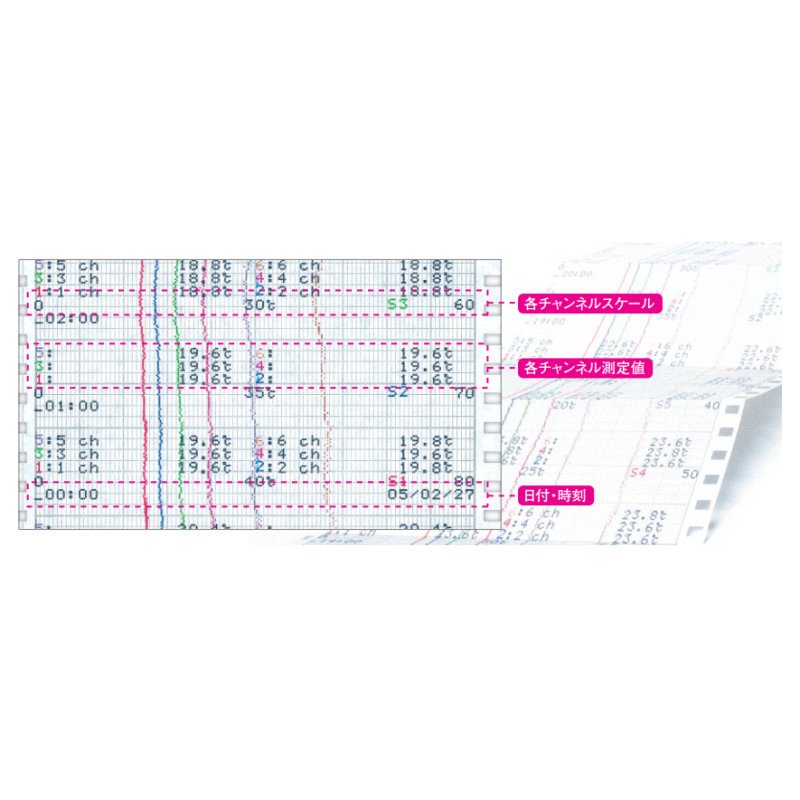

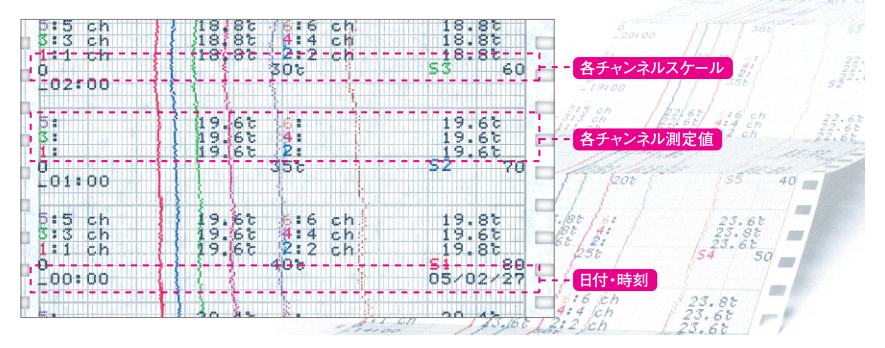

Bring several process signals together on one chart. The SP-100 measures up to six channels and prints their readings on fanfold paper, giving operators a record they can review at the instrument. Its compact enclosure is suited to installations that need a local paper record.
Stock note: Sekonic discontinued production of the SP-100 in March 2022. This store listing is for remaining stock, subject to availability. Check the supplied accessories and the input configuration before placing an order.

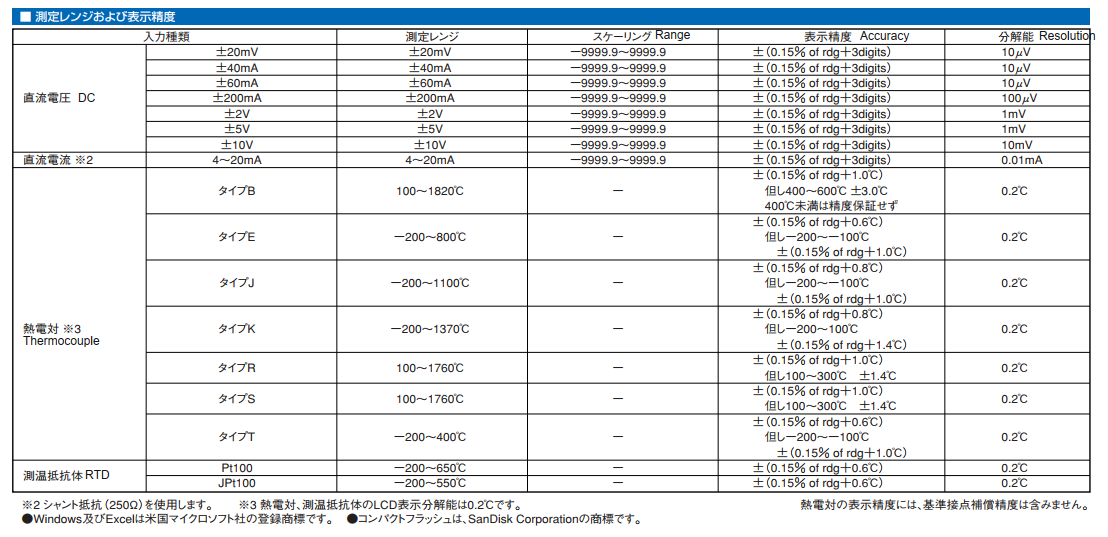

| Input | Ordering consideration |
|---|---|
| Thermocouple | Supports types B, E, J, K, R, S and T; select a suitable sensor separately. |
| Resistance thermometer | Supports Pt100 and JPt100 inputs; select a suitable sensor separately. |
| DC voltage | Configure the input range for the signal being recorded. |
| 4–20 mA current | Requires a 250 Ω shunt resistor; confirm whether one is needed for each current-input channel. |
| Model | SP-100 |
|---|---|
| Measurement channels | Up to six |
| Chart | Fanfold paper; 100 mm effective recording width, 12 m length |
| Chart speeds | 2.5, 5, 10 or 20 mm/hour |
| Display | LCD |
| Power supply | 100–240 V AC, 50/60 Hz |
| Dimensions | 300 W × 245 H × 120 D mm, excluding protrusions and terminals |
| Weight | Approximately 3.5 kg |
Sekonic identifies HD04 standard chart paper, HD08 clean chart paper and HD12 ink pads for the SP-100. Its memory-card function requires an optional unit; do not assume a memory card is included with the recorder. Confirm the condition and contents of this remaining-stock unit before ordering additional accessories.
For the product overview and catalogue, visit the Sekonic SP-100 main product page →.
