Dickson SL4100 Temperature Chart Recorder

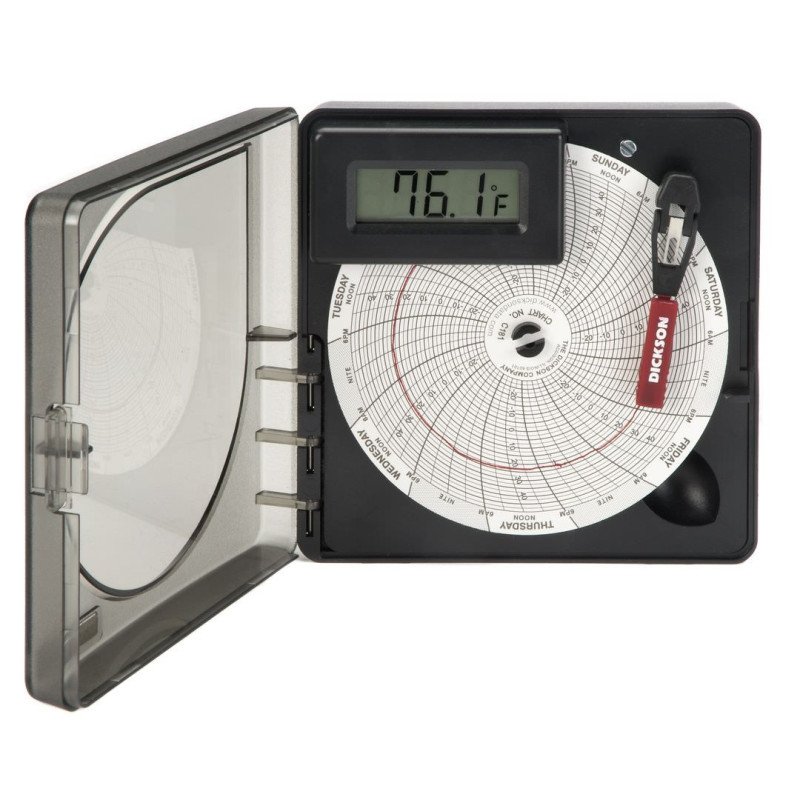

The SL4100 gives you a paper temperature record and a quick digital reading in one compact instrument. Its 4-inch circular chart makes it easy to review temperature changes over a day or a week. Place it on a shelf or mount it on a wall where the recorder can measure the surrounding air.
The SL4100 is the −18 to 37°C (0 to 100°F) version of Dickson's SL4 series. Check that this range covers your application before ordering, especially if you need to monitor temperatures below −18°C or above 37°C.
Key features
- Single-channel ambient temperature recording with a spiral-wound bimetallic sensor
- LCD reading switchable between °C and °F
- Selectable 24-hour or 7-day chart rotation
- One user-replaceable AA battery; average battery life approximately three years

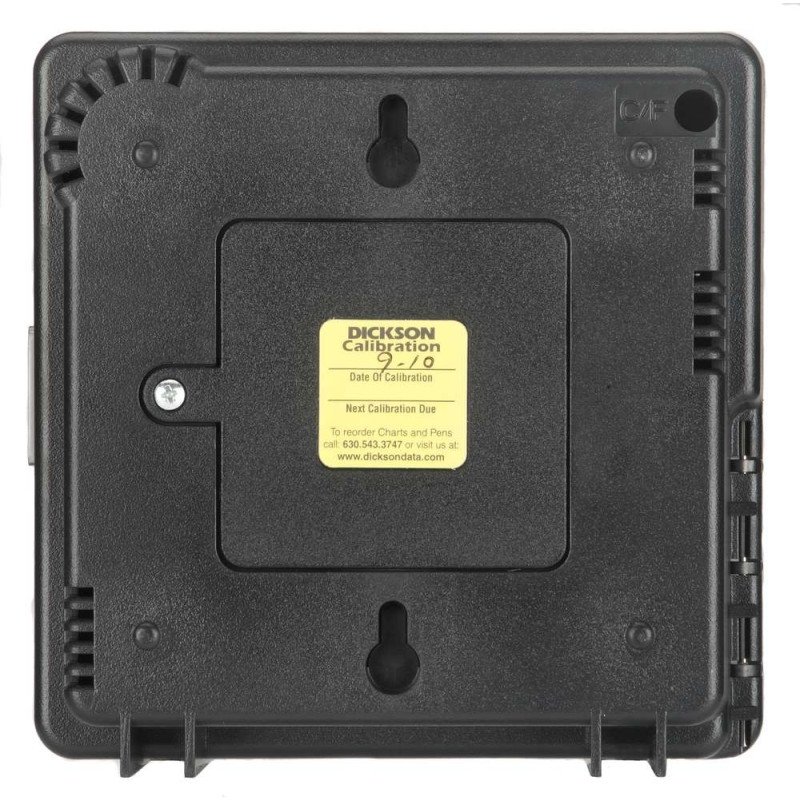

- Freestanding or wall mounting
Specifications
| Model |
SL4100 |
| Measured parameter |
Ambient temperature, one channel |
| Measurement range |
−18 to 37°C (0 to 100°F) |
| Chart |
4-inch (101 mm) circular chart; 24-hour or 7-day rotation |
| Recording accuracy |
±2% of full scale |
| Display |
LCD, 0.1° resolution |
| Ambient operating conditions |
−30 to 50°C; 0–95% RH, non-condensing |
| Power |
One replaceable AA battery |
| Dimensions |
Approximately 132 × 132 × 61 mm |
Choosing chart paper
Chart paper is sold separately. Match the printed scale and rotation period to your recorder settings:
| Printed scale |
24-hour chart |
7-day chart |
| 0 to 100°F |
C010 |
C012 |
| −18 to 37°C |
C209 |
C210 |
Please confirm the chart reference printed on your existing paper when replenishing supplies. A red pen is included with the recorder; replacement pens are available separately.
In the box
One SL4100 recorder, one AA battery, one red pen and a quick-start guide. Chart paper is not included.
