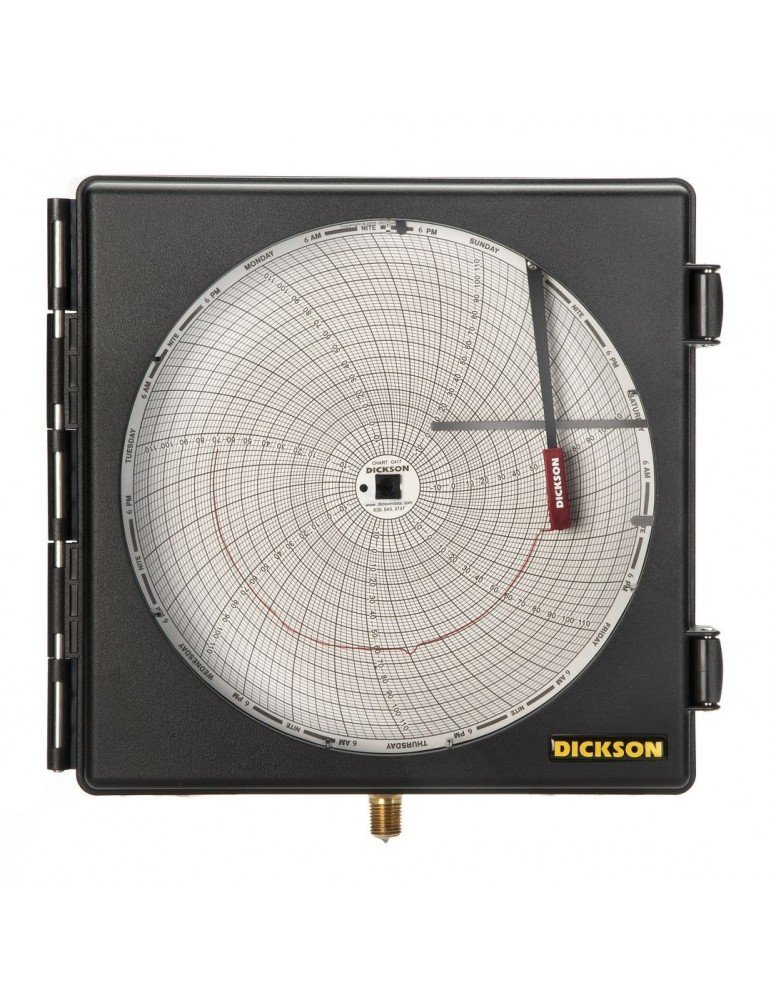

Dickson Pressure Recorder PW875 / PW860 / PW861 / PW864 / PW866 / PW867
|PW875 / PW860 / PW861 / PW864 / PW866 / PW867|
|Ambient Operating RH Conditions||0-95% RH non-condensing|
|Ambient Operating Temperature Conditions||-22.0 to 122.0F (-30.0 to 50.0C)|
|Battery Life (Avg)||1 Year|
|Calibration Options||N100, N300|
|Chart Rotation Speed||PW875 / PW861 / PW867: 24 Hour
PW860 / PW864 / PW866: 7 Day
|Dimensions||3.6 x 10.3 x 9.5in|
|Enclosure||Plastic NEMA 4X Case with Window in Door|
|Fitting||1/4" NPT Thread, 5/8" Hex|
|Included Accessories||One AA Battery, Red Pen and Quick Start Guide.
*Charts sold separately.
|Mounting Options||Stem or Wall Mount (With Keyhole)|
|Power Source||Battery; One AA Battery (User Replaceable)|
|Pressure Accuracy||2% of Full Scale|
|Pressure Range||PW875: 0.0 to 1000.0PSI
PW860 / PW861: 0.0 to 100.0PSI
PW864: 0.0 to 200.0PSI
PW866 / PW867: 0.0 to 300.0PSI
|Response Time||1 to 5 Seconds|
|Unit Weight||2.9 lbs|
